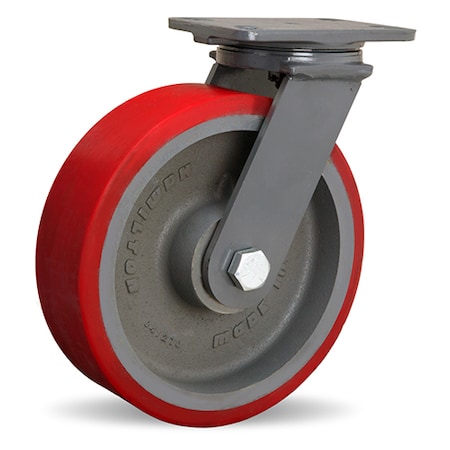

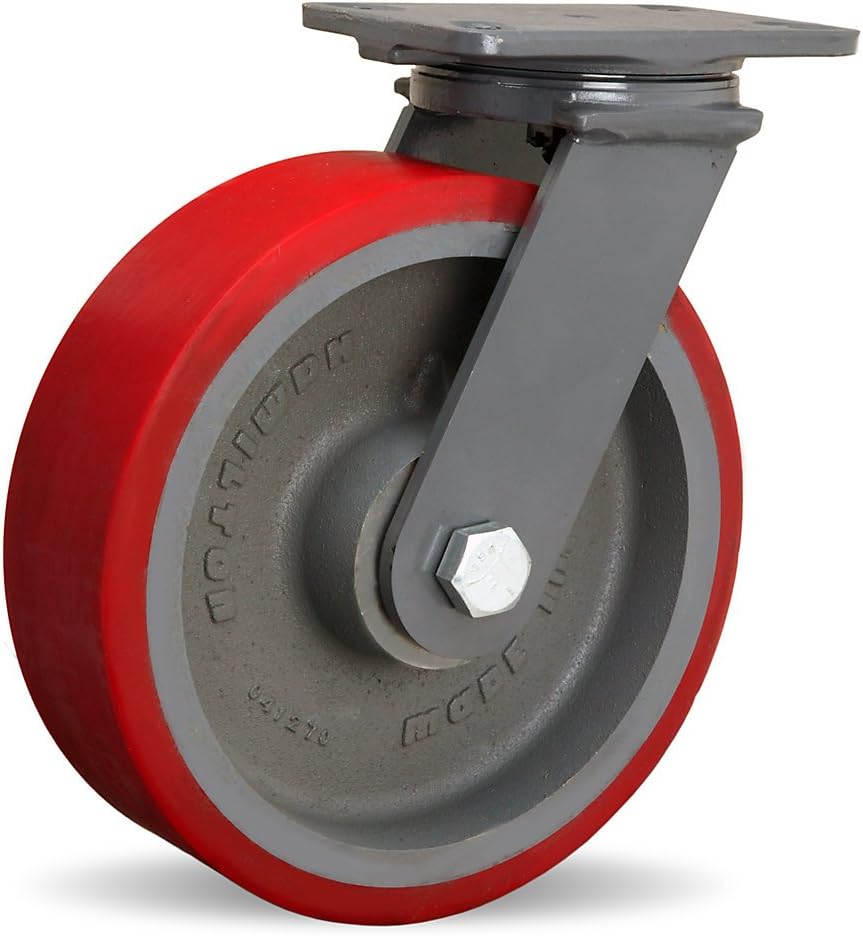

Extended Service Swivel Caster, 10" x 3" Ultralast Polyurethane (95-A) with 3/4" Precision Tapered Bearings

The Hamilton S-ES-13TRT caster features a 10-inch diameter by 3-inch wide ultralast polyurethane wheel. It is equipped with precision tapered roller bearings and has a swivel design. The caster is manufactured by Hamilton.

Extended Service Swivel Caster, 10" x 3" Ultralast Polyurethane (95-A) with 3/4" Precision Tapered Bearings

Hamilton . S-ES-13TRT

Gallery

Attributes

Brand name, Manufacturer name, ManHamilton
Manufacturer, Brand, Label, Publisher, StudioHamilton Hamilton Casters
CategoryId, CategoryIdL36740
CategoryIdL114394
CategoryIdL24473
CategoryL1Material Handling
CategoryL2Casters & Wheels
CategoryL3Casters
CategoryL4Plate Casters
DimensionUnitinch
GTIN, UPCNone
GraingerSku, MPN, Part Number, Model, Keyword, ModelNumber, Model_number, PartNumber, Part_numberS-ES-13TRT
UnitOfMeasureEA
Weight33 2.06 33.0 33.00
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
height, length, moq, multiple, tierMinQty1, width, Number of Wheels, Case, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
jsonUrlData924526ffbdad25e5923b
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG3726534
snippetExtended Service Swivel Caster, 10" x 3" Ultralast Polyurethane (95-A) with 3/4" Precision Tapered Bearings
tierPrice1555.99
urlhttps://www.zoro.com/hamilton-extended-service-swivel-caster-10-x-3-ultralast-polyurethane-34-precision-tapered-bearings-s-es-13trt/i/G3726534/
Product GroupHome Improvement
Wheel Dia10
Wheel Width3
Mounting Bolt Dia0.5
Plate Size4 1/2 x 6 1/2
Mounting Height11.5
Caster Wheel ShapeStandard
Caster Wheel/Tread MaterialPolyurethane
Load Rating2400
Caster Product Group, ItemSwivel Caster
Frame FinishPowder Coat
Caster Core MaterialCast iron
Core ColorGray
Non-Marking, Thread GuardsNo
Outside Bolt Hole Spacing3 3/8 x 5 1/4
Caster Temp Range-50 to 200 deg(F)
Caster Frame MaterialForged Steel
Caster Plate Hole PatternA
StandardsICWM
Replacement WheelW-1030-TRT-1
Caster Wheel BearingsTapered
Inside Bolt Hole Spacing2 7/16 x 4 15/16
ASIN, AsinB00JLH7RD6 B0876C65BM
BindingMisc.
Bullet_point-3/4" Precision Tapered Roller Bearings Capacity: 2400 lbs. Overall Height: 12.06" Wheel Dia.xW: 10x3" Wheel Type: Polyurethane
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 16310181 16410991 16411251
ClassificationId16411311 511228
Colorgray
DisplayNameHardware Tapered
FeatureWheel Type: Polyurethane
Height1000 12.0 12.06 3.0 3.00 500 75
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleHamilton Casters Hamilton Ext Service Forged Swivel 10 x 3 Ultralast Tapered 2400 Lb. Caster Hamilton Extended Service Casters - 10"Dia.X3"W Ultralast Polyurethane Wheel - -3/4" Precision Tapered Roller Bearings - Swivel - Red
Item_package_weight33.0
Item_type_keywordplate-casters tapered-roller-bearings
Item_weight2.06 33.0
Length0.0 0.00 10.0 12.0 12.00
Linkhttps://m.media-amazon.com/images/I/41bE5LBeCIL._SL75_.jpg https://m.media-amazon.com/images/I/41bE5LBeCIL.jpg https://m.media-amazon.com/images/I/61TyRKExpZL.jpg
ProductGroupBISS Basic Home Improvement
ProductTypeADHESIVES_AND_SEALANTS INDUSTRIAL_CASTERS
ProductTypeNameADHESIVES_AND_SEALANTS INDUSTRIAL_CASTERS TOOLS
Product_descriptionHAMILTON Extended Service Casters are specifically designed for moving heavy loads for long periods of time. Feature precision integrated HPI swivel technology that improves the bearing's element of contact and more than doubles the number of contact points. -3/8" thick drop forged steel mounting plate. -5/16x2-1/2" plate steel legs are welded to a forged steel horn base. Sturdy 1" diameter integrally forged kingpin with mounting plate. Main HPI load bearing is 3-1/2" outside diameter with hardened raceways; secondary load bearing has 1" precision tapered thrust bearing that counteracts radial thrust. -3/4" diameter axle. Ball check type lubrication fittings in swivel assembly and wheel hubs. Hamilton Casters Hamilton Ext Service Forged Swivel 10 x 3 Ultralast Tapered 2400 Lb. Caster
Product_site_launch_date2014-04-07T00:00:00.000-07:00 2020-04-16T14:37:59.432Z
Supplier_declared_dg_hz_regulationunknown
URLhttps://images-na.ssl-images-amazon.com/images/I/01RmK+J4pJL._SL75_.gif https://m.media-amazon.com/images/I/41bE5LBeCIL._SL75_.jpg
Unitinches pounds
Unitsinches pixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width0.0 0.00 10.0 10.00 1000 3.0 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3726534111 @ $555.99
motionindustries.com05866591111 @ $852.99
AmazonSCB00JLH7RD61-211 @ $793.12
National Supply Network176060211
ZoroG3284115111 @ $472.37

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Hamilton Extended Service Casters - 10"Dia.X3"W Ultralast Polyurethane Wheel - -3/4" Precision Tapered Roller Bearings - Swivel - Red
Brand: Hamilton
HAMILTON Extended Service Casters are specifically designed for moving heavy loads for long periods of time. Feature precision integrated HPI swivel technology that improves the bearing's element of contact and more than doubles the number of contact points. -3/8" thick drop forged steel mounting plate. -5/16x2-1/2" plate steel legs are welded to a forged steel horn base. Sturdy 1" diameter integrally forged kingpin with mounting plate. Main HPI load bearing is 3-1/2" outside diameter with hardened raceways; secondary load bearing has 1" precision tapered thrust bearing that counteracts radial thrust. -3/4" diameter axle. Ball check type lubrication fittings in swivel assembly and wheel hubs.
Details
  • Wheel Type: Polyurethane
  • Wheel Dia.xW: 10x3"
  • Capacity: 2400 lbs.
  • Overall Height: 12.06"
  • -3/4" Precision Tapered Roller Bearings
Listing
BindingMisc.
Product groupHome Improvement
Product typeTOOLS
ModelS-ES-13TRT
Part numberS-ES-13TRT
Items per pack1
LabelHamilton
ManufacturerHamilton
Catalog
FeatureWheel Type: Polyurethane
CategoryIndustrial & Scientific
MPNS-ES-13TRT
Product groupHome Improvement
Product typeTOOLS
ManufacturerHamilton
