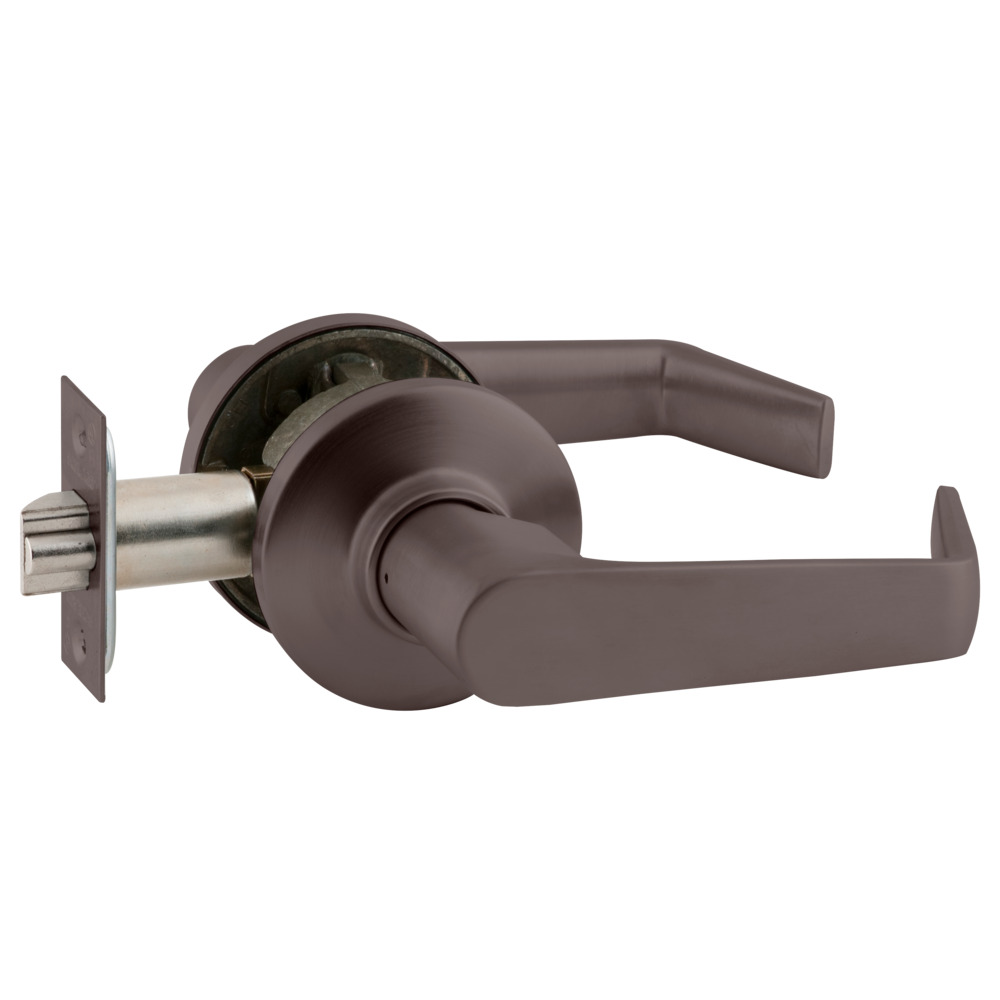

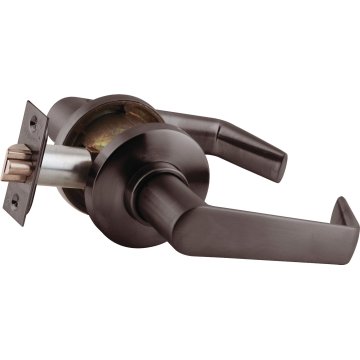

Schlage Commercial S10D SAT 613 S10D Saturn Passage Lock, Oil Rubbed Dark Bronze

S SeriesTubular Lock Schlage S Series levers are engineered for long life and optimum durability. Easy to install, service and maintain, an S Series lever can help you keep people and property secure. Specifications: Handing: Not handed, except Flair design Door thickness: 1 3/8" to 2" (35 mm-51 mm) except S40D: 1 3/8" to 1 7/8? (35 mm-48 mm) Backset: Universal backset latches standard, fit either 2 3/8" (60 mm) or 2 3/4" (70 mm) Fronts: Steel. 1" x 2 1/4" (25 mm x 57 mm) square corner, beveled, for 2 3/4" backset standard </ul

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSchlage Commercial
CategoryIdL3Locks and Accessories
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameSchlage Commercial S10D SAT 613 S10D Saturn Passage Lock, Oil Rubbed Dark Bronze
atoms, moq, multiple, tierMinQty1, Package Qty1
color, ColorDark Oxidized Satin Bronze Oil Rubbed
height2.75
height_AttribStrike Height
length4.25
length_AttribLever Length-Inches
MPN, SKUS10D SAT 613
qtyInStock-2
qtySourceFieldMap
tierPrice1253.58
width1.125
width_AttribStrike Width
Thickness1-3/4 In.
Color Code613/US10B
Function10-Passage
ANSI FunctionF75
Bolt Protection1/2 In.
Dust BoxPlastic
Latch Backset DimAdjustable 2-3/8 In. and 2-3/4 In.
Latch Number16-203
Latch TypeDead Latch
Lever/Knob DesignSAT - Saturn
Lock Face Size2-1/4 In. x 1 In.
Strike Height2-3/4 In.
Strike Number10-001
Strike TypeT-Strike
Strike Width1-1/8 In.
Finish, Finish DescriptionOil Rubbed Dark Bronze
GradeANSI/BHMA Grade 2
Backset2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner
StrikeT-Strike, 1-1/8 Inch x 2-3/4 Inch, 1-1/4 Inch Lip, Sq Corner
Lever StyleSAT-Saturn
Rose/Escutcheon TrimRound Rose
Product TypeCylindrical Lock
ADA ApprovedFalse
Warranty3 Year Limited
Door Thickness1-3/8" to 2"
Rose Diameter2-9/16 Inch
Latch Throw1/2 Inch
StandardsANSI A156.2 Series 4000 Grade 2; UL/cUL Listed; FF-H-106C
Function DescriptionLatch retracted by knobs/levers at all times
Front Size1" x 2-1/4"
Chassis MaterialZinc
Function FamilyPassage/Hall/Closet
Latch Housing Diameter7/8 Inch
FeaturesKey Removable Lever for Quick Rekeying or Cylinder Replacement; Large Turn-Button for Ease of Operation; Interlocking Chassis and Latchbolt Restricts Chassis from Rotating in Door
ADA CompliantNo
Finish FamilyDark Bronze
Manufacturer ParentAllegion
Lever Length-Inches4-1/4 Inch
Latch CornerSquare
Lever Style FamilyStraight Return Lever
Lever MaterialPressure Cast Zinc
Sub-SeriesCL_Tubular_Locks_schlage_commercial_45
Strike Size1-1/8" x 2-3/4" x 3/32"
Lever Projection2-1/2 Inch

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareS10D SAT 6131-211 @ $253.58
HD Supply772680111 @ $367.41
ZoroG008389968111 @ $219.10
thebuilderssupply.comSCH_S10DSAT61311211 @ $173.88
