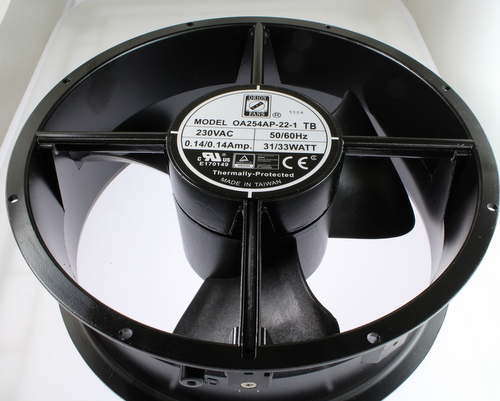

The Orion Fans OA254AP-22-1TB is a 230V AC fan with a die-cast aluminum housing and painted finish. It has a high airflow of 547 CFM and operates at 1650 RPM, producing 55 dB of noise. This fan features a dual ball bearing design and is rated for 35W. Its dimensions are 254mm in diameter and 89mm in width.
OA254AP-22-1TB ORION FANS 230 VAC fan 2031000932. Thousands of discounted electronic components in stock. No lead time, ship out right away! Electronic parts, tedss.com your source for electronic components.
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Orion Fans |
|---|---|
| Extra Product Name | OA254AP-22-1TB Orion Fans | Fans, Thermal Management | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | OA254AP-22-1TB |
| qtyInStock | 1641 |
| SKU | 1053-1068-ND |
| Part Status | Active |
| Voltage - Rated | 230VAC |
| Size / Dimension | Round - 254mm Dia |
| Width | 89.00mm |
| Air Flow | 547.0 CFM (15.32m?/min) |
| Static Pressure | 0.390 in H2O (97.1 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features, Ingress Protection, Weight, Current Rating (Amps) | - |
| Noise | 55.0dB |
| Power (Watts) | 35.00W |
| RPM | 1650 RPM |
| Termination | 2 Terminals |
| Operating Temperature | -4 ~ 176?F (-20 ~ 80?C) |
| Approval Agency | cURus, TUV |
| Voltage Range | 160 ~ 260VAC |
| Material - Frame | Aluminum |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Lifetime @ Temp | 60000 Hrs @ 40?C |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 1053-1068-ND | 1 | 1641 | 1 | |
 Onlinecomponents.com | OA254AP-22-1TB | 1 | 30 | 1 | 1 @ $59.21, 25 @ $56.25, 100 @ $53.44, 500 @ $50.77, 1000 @ $48.99, 2000 @ $46.54 |
 arcade-electronics.com | ORI-OA254AP-22-1TB | 1 | -2 | 1 | 1 @ $90.43 |
| Electroshield | OA254AP-22-1TB | 1 | 1 | ||
| RS Delivers | 2508127459 | 1 | 1 | ||
 Carlton Bates Company | 40308485983 | 1 | 1 | 1 @ $0.00 | |
| Accessotronik | OA254AP-22-1TB | 1 | 1 | ||
| Future Electronics | 2640928 | 1 | 3 | 1 | 1 @ $76.66, 2 @ $69.44, 5 @ $60.93, 10 @ $55.20 |
| 2031000932 | 1 | -2 | 1 | 1 @ $79.00 | |
 swatee.com | OA254AP-22-1TB | 1 | 22 | 1 | 1 @ $141.66 |
 AmazonTP | B017TIJXSA | 1 | -2 | 1 | 1 @ $66.00 |
 Newark | 89AH2437 | 1 | 1 | 1 @ $113.94, 5 @ $110.78, 10 @ $105.08, 25 @ $98.12, 50 @ $92.42, 100 @ $86.09 | |
| Digi-Key | 2620973 | 1 | 1527 | 1 | 1 @ $105.01, 10 @ $94.38, 25 @ $93.05, 50 @ $87.07, 100 @ $85.08 |
 Galco | OA254AP-22-1TB-ORIN | 1 | 1 | 1 @ $127.88 | |
 jensentools.com | 10141744 | 1 | 1 | 1 @ $105.50 | |
| us.rs-online.com | 70103674 | 1 | 1286 | 1 | 1 @ $71.36 |
 Newark | 51AK1544 | 1 | 17 | 1 | 1 @ $108.64, 5 @ $102.36, 10 @ $97.97, 25 @ $93.57, 50 @ $91.06, 100 @ $87.92 |
