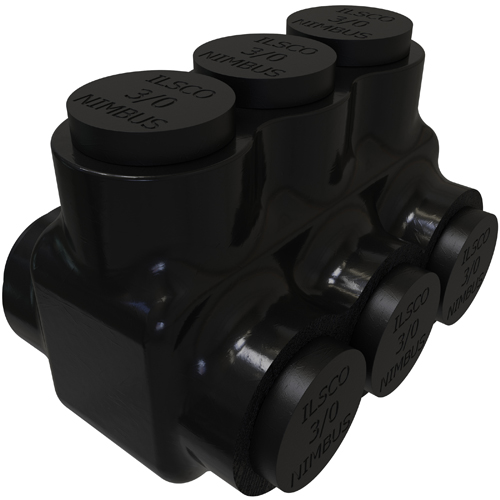

Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 3/0-6, 3 Ports, Dual Sided Entry, Tin Plated, UL, CSA | Mayer Electric

Mayer Electric Supply . PBTD-3-3/0

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameNimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 3/0-6, 3 Ports, Dual Sided Entry, Tin Plated, UL, CSA | Mayer Electric
UPC783669077643
Weight0.293
WeightUnitlbs
Weight_AttribWeight
height1.863
height_AttribHeight
jsonUrlData/Product/ILSCO-Nimbus-Insulated-Aluminum-Multi-Tap-Connector-Conductor-Range-3-0-6-3-Ports-Dual-Sided-Entry-Tin-Plated-UL-CSA-783669077643
jsonUrlData2aa8cf5e4-2523-4996-9d1f-abb200c8ede1
length2.568
length_AttribLength
moq, multiple, tierMinQty1, Number of Poles, Number of Wire Binding Screws per Port, Bag Quantity1
MPNPBTD-3-3/0
qtyInStock0
SKUILSPBTD330
tierPrice155.79
width1.965
width_AttribWidth
Height1.863 in | 47.3202 mm
Length2.568 in | 65.2272 mm
Width1.965 in | 49.911 mm
ConnectionMechanical
Contains DE-OX?, Dual RatedYes
Number of Conductors, Number of Ports / Wireways, Number of Usable Ports, Number of Usable Taps3
Replacement Part(s)PLUG-3/0
Drive Size Main1/4
Drive Type MainInternal Hex
Height BX (IN)2
Height (mm)47.3202
Length (mm)65.2272
Max Insulation OD (IN)0.62
Max Insulation OD (mm)15.748
Weight BX (LB)1.905
Width BX (IN)6.1875
Width (mm)49.911
Conductor TypeStranded
Conductor MaterialCopper, Aluminum
Connector Finish, Wire Binding Hardware FinishTin
InsulationPlastisol
Material, Wire Binding Hardware MaterialAluminum
Wire Binding Screw Size1/2
Wire Binding Torque200
Conductor Range AL Stranded (Primary, run, main, line), Conductor Range CU Stranded (Primary, run, main, line)3/0 Str - 6 Str
Voltage Rating600 V
Cap Color Main, Cap Color Tap, ColorBlack
CSA File NumberLR-29601
CSA StandardC22.2 No. 65-03
Prop65 Compliance : WARNINGCancer and Reproductive Harm - www.P65warnings.ca.gov
UL Control Number453G
UL / CULUS SpecificationUL 486A/B Listed
UL File NumberE6207
Environmental ConditionsCold temperature rated to -45?C
Flammability RatingInsulation rated per UL 94
Temperature Rating90?C
Carton Quantity DescriptionSTD PACK QTY 6
NEMA CodeS-588-4
UPC Code78366907764

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comILSPBTD330111 @ $55.79
