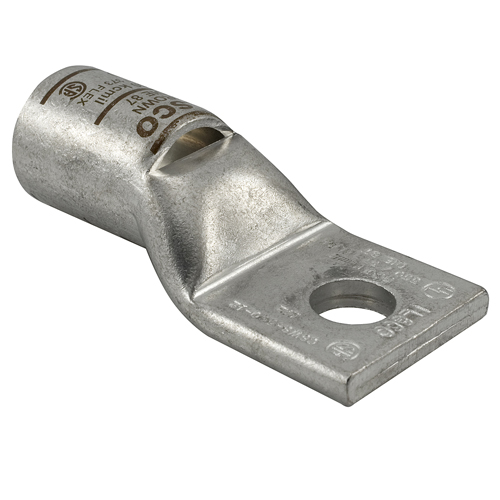

Surecrimp Copper Compression Lug, Conductor Size 4/0, 1 Hole, 1/2in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA | Mayer Electric

Mayer Electric Supply . CSWS-4/0-12

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameSurecrimp Copper Compression Lug, Conductor Size 4/0, 1 Hole, 1/2in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA | Mayer Electric
UPC783669639698
Weight0.106850889133627
WeightUnitlbs
Weight_AttribWeight
height0.729
height_AttribHeight
jsonUrlData/Product/ILSCO-Surecrimp-Copper-Compression-Lug-Conductor-Size-4-0-1-Hole-1-2in-Bolt-Size-Standard-Barrel-Sight-Window-Tin-Plated-UL-CSA-783669639698
jsonUrlData27f7b1f16-1dbe-45e5-a10e-abb200c8ec9e
length2.716
length_AttribLength
moq, multiple, tierMinQty1, Number of Mounting Holes, Bag Quantity1
MPNCSWS-4/0-12
qtyInStock, Mounting Hole Spacing (mm)0
SKUILSCSWS4012
tierPrice110.6
width, Tang Width (IN)0.999
width_AttribWidth
Height0.729 in | 18.5166 mm
Length2.716 in | 68.9864 mm
Width0.999 in | 25.3746 mm
Conductor TypeFlex, Stranded
Barrel MarkingInk
Barrel TypeStandard
Connecting Angle180?
ConnectionCompression
Contains DE-OX?, Flared End, Narrow Tang, Slotted, Undrilled, Dual RatedNo
ILSCOs Die Catalog NumberILD-54
ILSCOs Die Index NumberI-54
Mounting Hole TypeThru
Sight Window, Direct BurialYes
Tang End ShapeSquare
Conductor Material, MaterialCopper
Connector FinishTin
Mounting Bolt/Stud Size1/2
Temperature Rating90?C
Conductor Range CU Stranded (Primary, run, main, line)4/0 Str
Expanded Conductor Range4/0 Str - 1 Str
Flex Conductor Range3/0 G,H,I,K,M,DLO
ColorSilver
Color CodePurple
Voltage Rating35 kV
CSA File NumberLR-29601
CSA StandardC22.2 No. 65-03
NEBS RatingLevel 3
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
ROHS IndicatorIND
UL Control Number453G
UL / CULUS SpecificationUL 467 Listed, UL 486A/B Listed
UL File NumberE6207
Barrel Length (IN)0.975
Barrel Length (mm)24.765
Dimension G (IN), Inside Diameter (IN)0.546
Dimension G (mm), Inside Diameter (mm)13.8684
Height BX (IN)2.25
Height (mm)18.5166
Length (mm)68.9864
Mounting Bolt/Stud Size (mm)304.8
Mounting Hole Diameter (IN)0.562
Mounting Hole Diameter (mm)14.2748
Outside Diameter (IN)0.689
Outside Diameter (mm)17.5006
Strip Length (mm)23.7998
Tang Length (IN)1.25
Tang Length (mm)31.75
Tang Thickness (IN)0.141
Tang Thickness (mm)3.5814
Tang Width (mm), Width (mm)25.3746
Weight BX (LB)1.938
Width BX (IN)5
Carton Quantity DescriptionSTD PACK QTY 10
NEMA CodeS-588-3
UPC Code78366963969

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comILSCSWS4012111 @ $10.60
