Hamilton

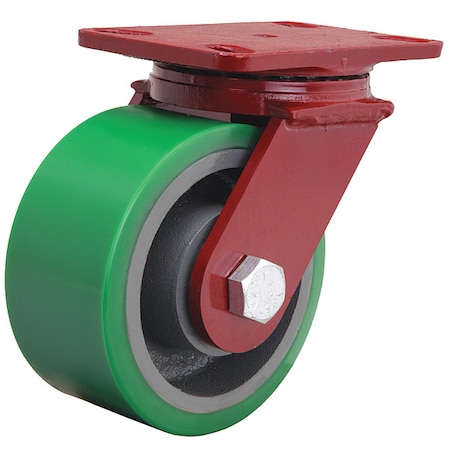

Swivel, Standard Plate Caster, Load Rating 2200 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia.

Hamilton . S-FM-63DB-4SL-FB

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameHamilton
DimensionUnitinch
GraingerSku55HA22
UnitOfMeasureEA
Weight22.55
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
height7.2
jsonUrlData924526ffbdad25e5923b
length9
moq, multiple, tierMinQty1, Number of Wheels1
MPNS-FM-63DB-4SL-FB
qtyInStock26
qtyInStockOverride-2
SKUG9072190
tierPrice1301.11
urlhttps://www.zoro.com/hamilton-plate-caster-2200-lb-load-rating-s-fm-63db-4sl-fb/i/G9072190/
width8
Caster Sub-TypeSwivel
Load Rating2200 lb
Wheel Dia6 in
Wheel Width, Overall Wheel Width3 in
Caster Frame Material, Wheel Bearing MaterialSteel
Brake LocationRight Side
Wheel TypeFlat-Free
Swivel Raceway TypeSingle Ball
Wheel Core TypeSolid
SeriesForgemaster
ESD Conductive, Includes Spanner Bushing, Non-MarkingYes
ItemStandard Plate Caster
Load Rating Range1000 to 2999 lb
Mounting Plate Thickness5/16 in
Operating Temperature Range-50 Degrees to 200 Degrees F
Wheel/Tread Hardness RatingFirm
Wheel/Tread ColorGreen
Caster Product GroupSwivel Caster with 4-Position Directional Lock and Brake
Swivel Lock Type4-Position Directional Lock
ApplicationAerospace Tooling, All Purpose Industrial/Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
With Toe Plate, Leveling Caster, NSF Listed, Includes Thread Guards, Includes Mounting FastenersNo
For Surface TypeConcrete
Caster Mounting TypePlate
Mounting Plate Size4 1/2 in x 6 1/2 in
Mounting Plate Bolt Hole PatternA
Swivel ConstructionKingpin
Core ColorSilver
StandardsICWM
Wheel/Tread Hardness95 Shore A
Wheel Bearing TypePrecision Ball
For Axle Dia3/4 in
Outside Bolt Hole Spacing3-3/8 in x 5-1/4 in
TreadFlat
Mounting Bolt Dia1/2 in
Number of Mounting Holes4
Swivel Radius5 1/4 in
Inside Bolt Hole Spacing2-7/16 in x 4-15/16 in
Frame ConstructionForged
Wheel/Tread MaterialPolyurethane
Swivel Bearing Seal TypeOpen
Frame ColorRed
Mounting Height7 1/2 in
Frame FinishPowder Coated
Wheel Core MaterialCast Iron
Swivel Lead2 1/4 in
Tire StyleTubeless
Tread ShapeStandard
Caster Brake TypeSide Pedal Brake
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG907219012611 @ $301.11
simsupply.comZO-G907219012111 @ $363.39
Grainger55HA2211
