12 Position 41 Amp PCB Header, Vertical, For Use With Pluggable Terminal Block Connectors, PWM1P7.62-12DP | SourceASI

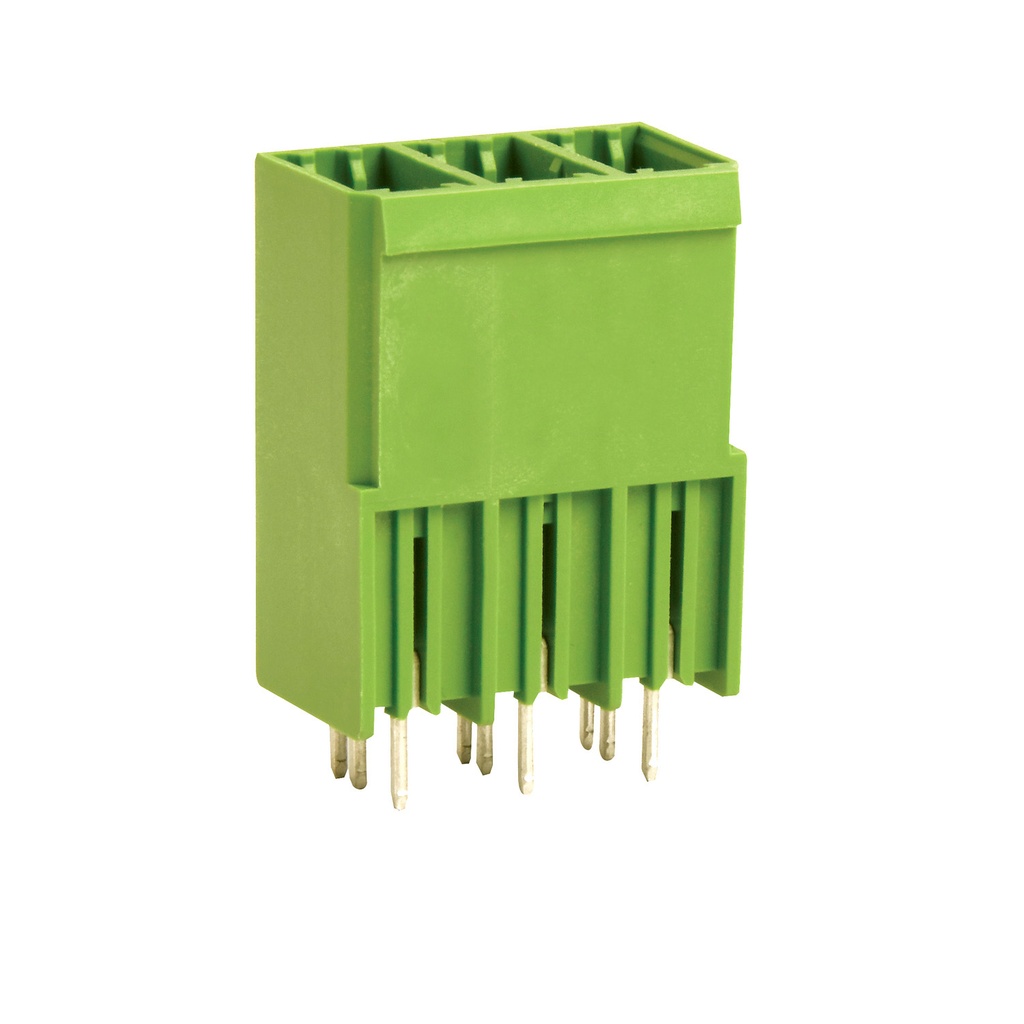

The PWM1P7.62-12DP is a 12 position 41 amp vertical pcb header with threaded flange that is used with the high current screw terminal connector, PWF1 series. This vertical 41 amp pcb pin header with threaded flange is fully enclosed and the housing is polarized so that the high current 41 amp pluggable terminal block can only mate in one direction. The green housing is made out of a UL94V0 thermoplastic and each position has 2 solder pins to the pcb. The UL ratings for this 12 position vertical 41 amp header with threaded flange are 41A, 300V.
