Ingersoll-Rand

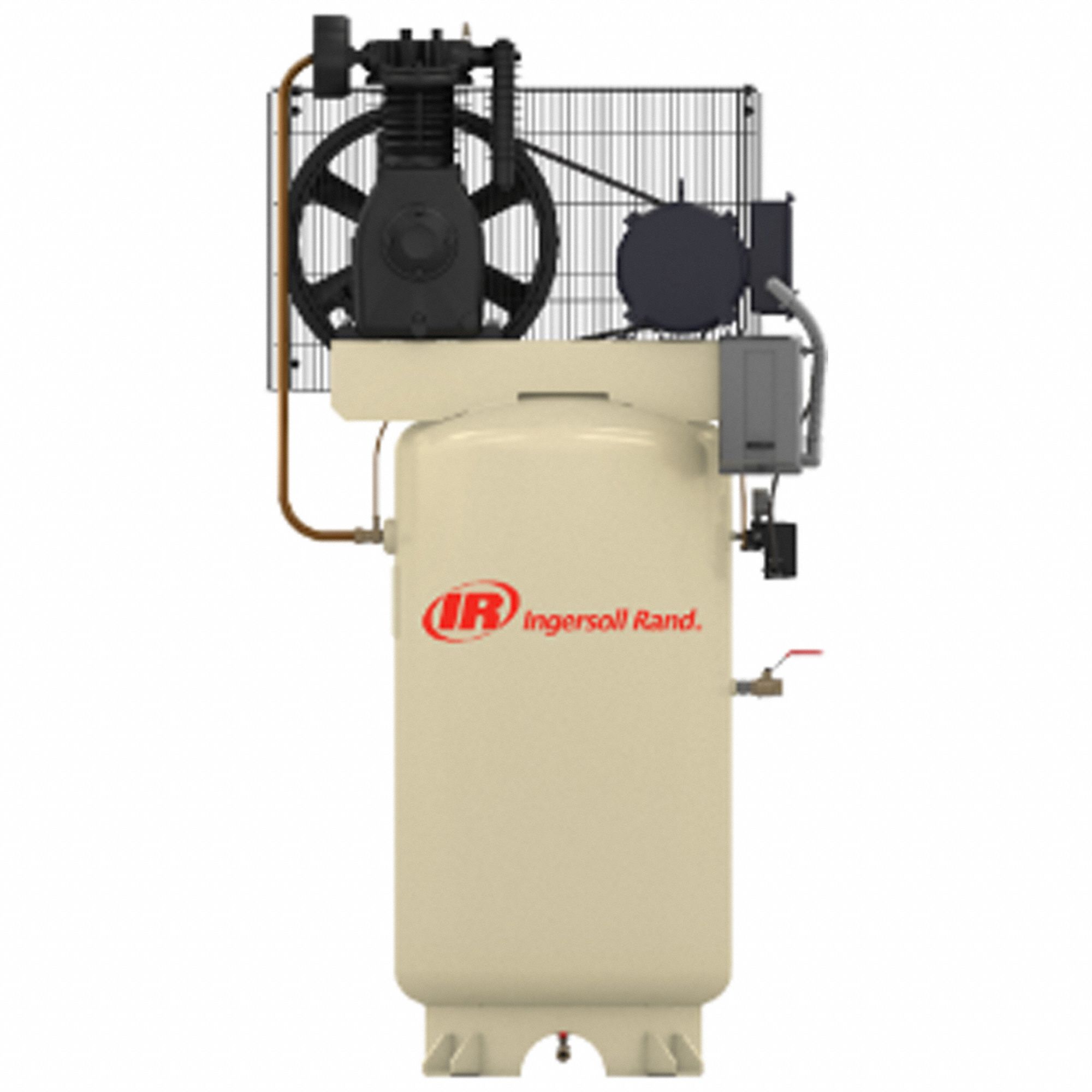

Ingersoll-Rand . 247PN5-V (200/208-3-60)

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameIngersoll-Rand
DimensionUnitinch
GraingerSku786FE1
UPC678384640015
UnitOfMeasureEA
Voltage, Input Voltage, Compressor Voltage200-208V AC
Weight684.2
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead20
extendedQty-2
height74.02
jsonUrlData924526ffbdad25e5923b
length37.99
moq, multiple, tierMinQty11
MPN247PN5-V (200/208-3-60)
perItemShipping100.00
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG702716510
tierPrice14377.65
urlhttps://www.zoro.com/ingersoll-rand-electric-air-compressor-247pn5-v-200208-3-60/i/G702716510/
width24.8
Overall Length, Length38
Overall Height, Height74
Overall Width, Width25
ItemCompressor
Motor Type, Enclosure Type, Compressor Motor TypeOpen Dripproof
Number of Stages, Number of Cylinders2
ASME TankYes
Cylinder Material, Valve MaterialCast Iron
Compressor Package TypeBase Model
Free Air CFM @ 90 PSI - Air Compressor1.00
Series247P
Free Air Flow Rate @ Maximum Pressure, Free Air Flow Rate @ Max Pressure19.1 cfm
Enclosure RatingNEMA 1
Pump LocationTop Mount
Mounting StyleThru-Bolt
Outlet Size1 1/4 in
Frequency60 Hz
Number of Mounting Holes3
Maximum Operating Pressure, Max Operating Pressure175 psi
Duty CycleContinuous
Maximum Speed550 RPM
Outlet Gender, Inlet GenderFemale
Sound Level83 dBA
Valve TypeDisc
Output Power5 hp
Insulation ClassODP
Wattage4 kW
Inlet Size1 in
Current Rating17.5 A
Thermal ProtectionManual Reset
Control TypeMagnetic Starter
Outlet Type, Inlet TypeNPT
Maximum Operating Temperature104 Degrees F
Pump StyleSimplex
Pump TypeReciprocating
Air Tank Style, Tank Style (Broad)Vertical
Air Tank Size80 gal
Minimum Operating Temperature50 Degrees F
Sound Level RangeStandard (70 dBA or more)
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG702716510111 @ $4377.65
Grainger786FE1111 @ $4387.45
