Hydraulic Quick Connect Hose Coupling, Socket, ST Series, Brass, Coupling Size 3/4 in, Female, Max. Working Pressure @ 70 F 1,700 psi, Max. Flow Rate 106 lpm

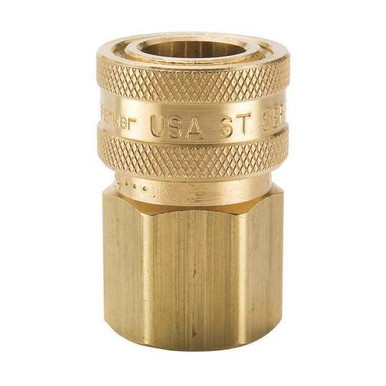

The Parker BST-6 is a brass coupler body with a 3/4-14 thread size. It has a 3/4 inch body and is designed for use in hydraulic systems. The coupler is made of brass and has a straight-through interface.

Hydraulic Quick Connect Hose Coupling, Socket, ST Series, Brass, Coupling Size 3/4 in, Female, Max. Working Pressure @ 70 F 1,700 psi, Max. Flow Rate 106 lpm

Parker . BST-6

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerParker
CategoryId, CategoryIdL35403
CategoryIdL132
CategoryIdL210615
CategoryL1Power Transmission
CategoryL2Hydraulic Cylinders & Equipment
CategoryL3Hydraulic Hoses & Fittings
CategoryL4Hydraulic Quick Couplers
DimensionUnitinch
GTIN, UPCNone
GraingerSku31A960
UnitOfMeasureEA
Weight0.65
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
height2.1
jsonUrlData924526ffbdad25e5923b
length, width1.8
moq, multiple, tierMinQty11
MPNBST-6
qtyInStock660
qtyInStockOverride-2
SKUG4680575
snippetHydraulic Quick Connect Hose Coupling, Socket, ST Series, Brass, Coupling Size 3/4 in, Female, Max. Working Pressure @ 70 F 1,700 psi, Max. Flow Rate 106 lpm
tierPrice154.35
urlhttps://www.zoro.com/parker-hydraulic-quick-connect-hose-coupling-brass-body-sleeve-lock-34-14-thread-size-st-series-bst-6/i/G4680575/
Coupler Thread Size, Thread Size3/4"-14
Coupler Body Size3/4"
Length2-5/32"
Overall Length2 5/32 in
Coupling Size3/4 in
Max Outside Dia1 43/64 in
Quick Coupler TypeHydraulic Coupler Body
ItemHydraulic Quick Connect Hose Coupling
Coupler Interchange Type, SeriesST
Connection TypeNPTF
Coupler Flow Rate28.0 gpm
Max Pressure1700 psi
Coupler Body Material, Sleeve Material, Body MaterialBrass
Coupler FinishPlain
Coupling Locking TypeSleeve
Seal MaterialNitrile
For Use WithParker ST Series
Operating Temp Range-40 Degrees to 250 Degrees F
IncludesSleeve Lock
Bearing MaterialStainless Steel
