Marathon Motors

http://www.sustainablesupply.com/cdn/shop/products/41D756_AS01_1024x.jpg

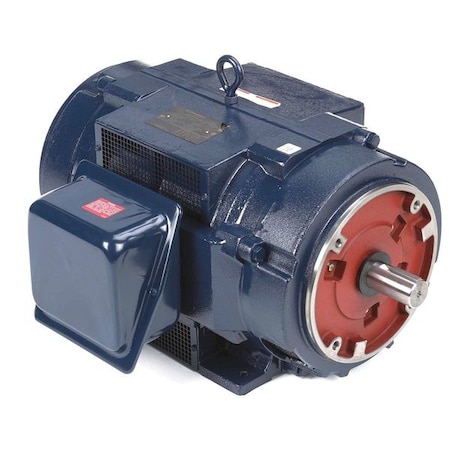

Marathon Motors . 286TSTDBD6003

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameMarathon Motors
DimensionUnitinch
GraingerSku41D756
UPC, Motor Thermal ProtectionNone
UnitOfMeasureEA
Voltage, Voltage @ 50Hz230/460V AC
Weight459
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
extendedLead, width26
extendedQty-2
height23.24
jsonUrlData924526ffbdad25e5923b
length35
moq, multiple, tierMinQty1, No of Speeds1
MPN286TSTDBD6003
perItemShipping250.00
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9880945
tierPrice13235.69
urlhttps://www.zoro.com/marathon-motors-3-phase-general-purpose-motor-40-hp-286tsc-frame-230460v-ac-voltage-3-560-nameplate-rpm-286tstdbd6003/i/G9880945/
ItemGeneral Purpose Motor
Motor Enclosure DesignOpen Dripproof
Motor Mounting TypeFace/Base
HP, HP @ 50Hz40
RPM Range3,001-3,600
Frame286TSC
Motor Service Factor, Service Factor @ 50Hz1.15
Voltage Compatibility200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor ApplicationGeneral Application
Motor Design3-Phase
Nameplate RPM, RPM @ 50Hz3,560
Motor Shaft RotationCW/CCW
Motor Mounting PositionHorizontal
Motor Frame Material, Frame MaterialCast Iron
Motor Shaft DesignKeyed
StandardsCSA, UL
Full Load Amps, Full Load Amps @ 50Hz90.0/45.0
Duty, Duty CycleContinuous
Overall Length25 7/16 in
Nominal Efficiency91.7 %
Shaft Dia1 5/8 in
Hz60/50
CC NumberCC003A
RPM Group3001-3600
Ins ClassF
Shaft Length3 1/4 in
Motor Efficiency GroupNEMA Premium Efficient
Manufacturers Warranty Length1 yr
Max Ambient Temp40 Degrees C
Motor BearingsBall
PhaseThree
Length Less Shaft22 7/16 in
Green Certification or Other RecognitionNEMA Premium(R) Rated
NEMA DesignB
Usable @ 200V, Usable @ 208VNo
Country of Origin (subject to change)Mexico

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9880945111 @ $3235.69
Grainger41D75611
sustainablesupply.comC27915011Add to Cart11 @ $4356.97
Platt.com210640311
Galco286TSTDBD6003-MARA111 @ $4273.00
