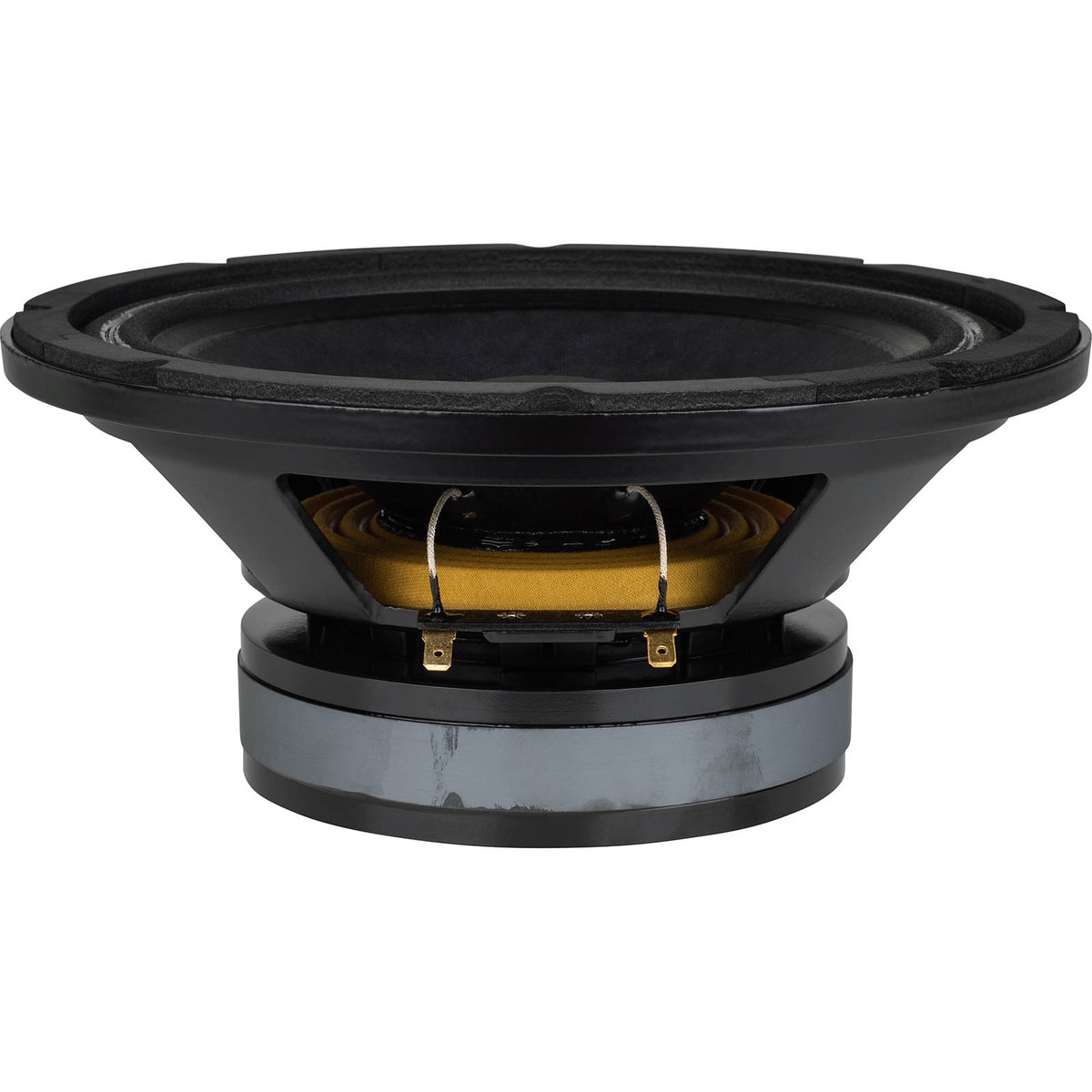

Ciare PW257 10" High Power Woofer

Ciare PW257 10" High Power Woofer - Part Number: 293-146 by Ciare.

Ciare . PW257

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandCiare
DimensionUnitinch
Extra Product NameCiare PW257 10" High Power Woofer
UPC848864073217
Weight12.3
WeightUnitlbs
depth, length4.72
diameter, height, width10.55
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelPW257
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-146
snippetCiare PW257 10" High Power Woofer - Part Number: 293-146 by Ciare.
Unit of MeasureEach
Nominal Diameter10"
Bolt Circle Diameter9.96
Power Handling (RMS)400 Watts
Power Handling (MAX)800 Watts
Impedance8?
Frequency Response50 to 3,000Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter3"
Resonant Frequency (Fs)57Hz
DC Resistance (Re)5.21?
Voice Coil Inductance (Le)0.94mH
Mechanical Q (Qms)3.2
Electromagnetic Q (Qes)0.33
Total Q (Qts)0.3
Compliance Equivalent Volume (Vas)1.09ft?
BL Product (BL)15.86T?m
Diaphragm Mass Inc Airload (Mms)44.9g
Maximum Linear Excursion (Xmax)5.5mm
Surface Area of Cone (Sd)353cm?
Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter10.55"
Baffle Cutout Diameter9.25"
Depth4.72"
# Mounting Holes8
Sealed Volume0.3ft?
Sealed F3152Hz
Vented Volume0.75ft?
Vented F370.4Hz
