Parker

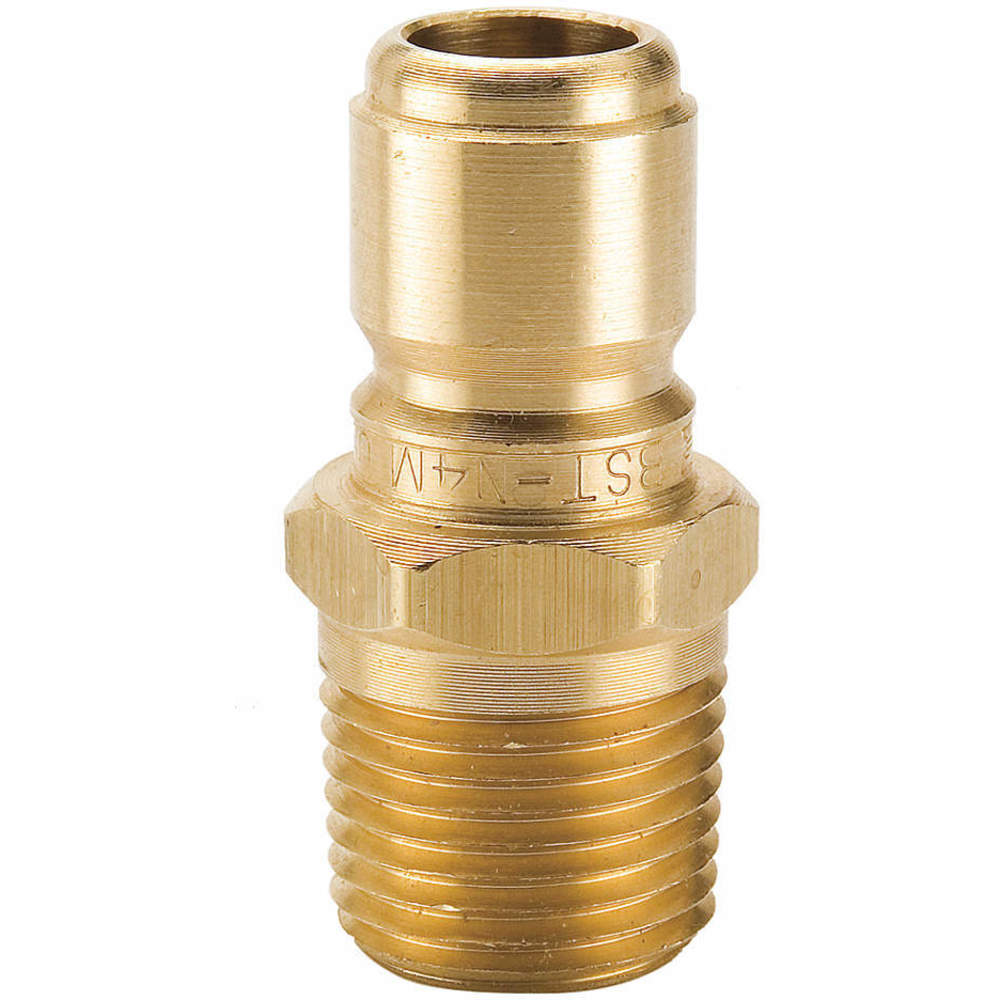

The Parker BST-N4M is a brass hydraulic quick coupling nipple with a 1/2-14 male pipe thread and a 1/2 inch body size. It features a multi-purpose design for high flow coupling in varied applications and is functionally interchangeable with similar straight through quick couplings. Made from brass, this coupling is suitable for use in hydraulic systems.

Nipple, 1/2 Inch Size, High Flow | 31A983 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Parker . BST-N4M

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameParker
DimensionUnitinch
GraingerSku31A983
UPCNone
UnitOfMeasureEA
Weight0.15
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
height2
jsonUrlData924526ffbdad25e5923b
length, moq, multiple, tierMinQty1, width1
MPN, Parker InterchangeBST-N4M
qtyInStock641
qtyInStockOverride-2
SKUG4654054
tierPrice111.59
urlhttps://www.zoro.com/parker-hydraulic-quick-connect-hose-coupling-brass-body-sleeve-lock-12-14-thread-size-st-series-bst-n4m/i/G4654054/
Quick Coupler TypeHydraulic Coupler Nipple
ItemHydraulic Quick Connect Hose Coupling
Coupler Interchange Type, SeriesST
Connection TypeNPTF
Coupler Thread Size, Thread Size1/2"-14
Coupler Body Size1/2"
Coupler Flow Rate12.0 gpm
Max Pressure2200 psi
Coupler Body Material, Body MaterialBrass
Coupler Finish, Finish/CoatingPlain
Coupling Locking TypeSleeve
Length1-61/64"
Coupler Connection TypeMNPT
Locking MechanismBall
Operating Temp Range-40 Degrees to 250 Degrees F
For Use WithParker ST Series
Bearing MaterialStainless Steel
Seal MaterialNitrile
Overall Length1 15/16 in
Max Flow Rate45.42 lpm
Max Outside Dia1 1/64 in
Includes Valve, Includes Shut OffNo
Max Working Pressure @ 70 F2,200 psi
Coupling Size1/2 in
Includes BearingYes
Hose Fitting GenderMale
Fitting TypeMale NPTF
Coupling ComponentPlug
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG4654054164111 @ $11.59
Grainger31A98311
FinditParts1101414711
Raptor SuppliesAC4XVP111 @ $16.08
AmazonTPB01BY6Q5481-211 @ $8.96
AmazonB01BY6Q54811
Misumi USABST-N4M11
simsupply.comZO-G465405415711 @ $24.66
go2marine.com533026-3/8"11
MRO Stop644021576111 @ $8.31
Airline HydraulicsPARKER BST-N4M111 @ $10.98
