N0602N-S19-AY Renesas Electronics America Inc | Discrete Semiconductor Products | DigiKey

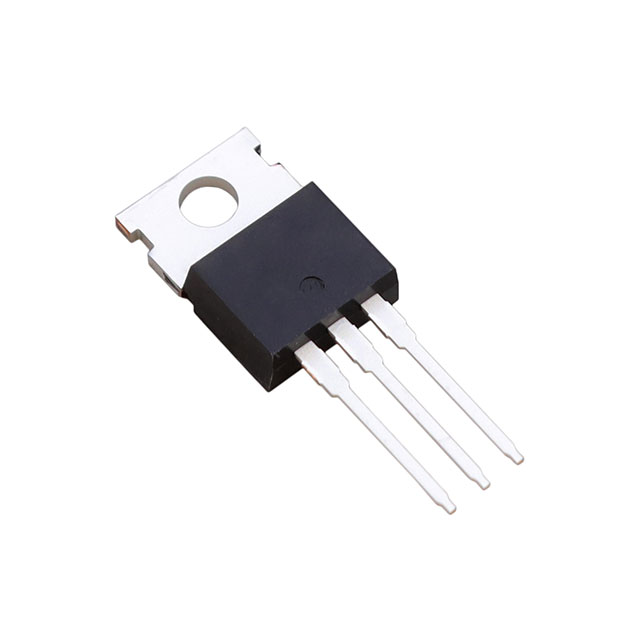

N-Channel 60 V 100A (Ta) 1.5W (Ta), 156W (Tc) Through Hole TO-220-3
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Renesas Electronics America Inc |
|---|---|
| CategoryL1, Category | Discrete Semiconductor Products |
| CategoryL2 | Transistors |
| CategoryL3 | FETs, MOSFETs |
| Extra Product Name | N0602N-S19-AY Renesas Electronics America Inc | Discrete Semiconductor Products | DigiKey |
| atoms, moq, multiple, tierMinQty1 | 1 |
| extraShipping | 0 |
| MPN, Manufacturer Product Number | N0602N-S19-AY |
| packaging, Package | Tube |
| qtyInStock | 3708 |
| SKU | 4091292 |
| snippet, Detailed Description | N-Channel 60 V 100A (Ta) 1.5W (Ta), 156W (Tc) Through Hole TO-220-3 |
| tierMinQty2 | 10 |
| tierMinQty3 | 100 |
| tierMinQty4 | 500 |
| tierMinQty5 | 1,000 |
| tierMinQty6 | 2,000 |
| tierMinQty7 | 5,000 |
| tierPrice1 | 2.60000 |
| tierPrice2 | 2.33200 |
| tierPrice3 | 1.87420 |
| tierPrice4 | 1.53982 |
| tierPrice5 | 1.27586 |
| tierPrice6 | 1.18787 |
| tierPrice7 | 1.14387 |
| Digi-Key Part Number | N0602N-S19-AY-ND |
| Description | MOSFET N-CH 60V 100A TO220-3 |
| Manufacturer Standard Lead Time | 18 Weeks |
| Series, Vgs(th) (Max) @ Id, FET Feature | - |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25?C | 100A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 4.6mOhm @ 50A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 133 nC @ 10 V |
| Vgs (Max) | ?20V |
| Input Capacitance (Ciss) (Max) @ Vds | 7730 pF @ 25 V |
| Power Dissipation (Max) | 1.5W (Ta), 156W (Tc) |
| Operating Temperature | 150?C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220-3 |
| Package / Case | TO-220-3 Isolated Tab |
| Base Product Number | N0602N-S19 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 4091292 | 1 | 3708 | 1 | 1 @ $2.60, 10 @ $2.33, 100 @ $1.87, 500 @ $1.54, 1000 @ $1.28, 2000 @ $1.19, 5000 @ $1.14 | |
| Digi-Key | 15814871 | 1000 | 1794 | 1000 | 1 @ $2.04, 10 @ $1.84, 100 @ $1.48, 500 @ $1.21, 1000 @ $1.05 |
