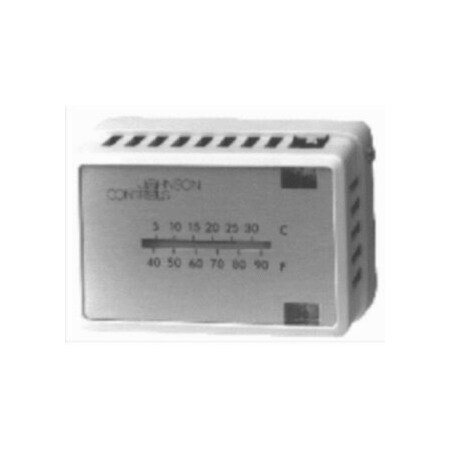

Pneumatic Thermostat, Direct Acting, 2 Pipe, Heating and Cooling, Dual Temperature, Control Air Pressure 3 to 15 psi, Air Connections 5/32 in Barb, Max. Air Pressure 25 psi, Max. Ambient Temp. 135 Degrees F, Mounting Style Vertical, Height 2 3/32 in, Width 3 1/8 in, Depth 1 3/4 in, Temp. Control Range 55 Degrees to 85 Degrees F, Air Consumption 20 scim, Throttling Range 1 to 5 psi

Pneumatic Thermostat, Direct Acting, 2 Pipe, Heating and Cooling, Dual Temperature, Control Air Pressure 3 to 15 psi, Air Connections 5/32 in Barb, Max. Air Pressure 25 psi, Max. Ambient Temp. 135 Degrees F, Mounting Style Vertical, Height 2 3/32 in, Width 3 1/8 in, Depth 1 3/4 in, Temp. Control Range 55 Degrees to 85 Degrees F, Air Consumption 20 scim, Throttling Range 1 to 5 psi

Johnson Controls . T-4506-204

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerJohnson Controls
CategoryId, CategoryIdL44761
CategoryIdL130
CategoryIdL24586
CategoryIdL318089
CategoryL1Heating & Cooling
CategoryL2HVACR and Appliance Controls
CategoryL3Controls
CategoryL4Pneumatic Controls
DimensionUnitinch
GTIN, UPCNone
GraingerSku38Y177
UnitOfMeasureEA
Weight0.2
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
height3.6
jsonUrlData924526ffbdad25e5923b
length4.2
moq, multiple, tierMinQty11
MPNT-4506-204
qtyInStock27
qtyInStockOverride-2
SKUG6935984
tierPrice1223.99
urlhttps://www.zoro.com/johnson-controls-pneumatic-thermostat-dual-temperature-heating-and-cooling-2-pipe-t-4506-204/i/G6935984/
width2.9
Height2 3/32 in
Width, Overall Width3 1/8 in
Depth, Overall Depth1 3/4 in
Overall Height2 1/8 in
Air Connection Outside Diameter1/8 in
ItemPneumatic Thermostat
Action Type - Pneumatic Thermostats, Reverse Acting / Direct ActingDirect Acting
No of Pipes, 1 Pipe / 2 Pipe2 Pipe
Thermostat Application, Heating / CoolingHeating and Cooling
Temperature Output Settings, Single Temp / Dual TempDual Temperature
Control Air Pressure3 to 15 psi
Air Connections5/32 in Barb
Temp Control Range55 Degrees to 85 Degrees F
Air Consumption20 scim
Max Air Pressure25 psi
Mounting StyleVertical
Max Ambient Temp135 Degrees F
Throttling Range1 to 5 psi

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG693598412711 @ $223.99
Grainger38Y17711
RadwellT-4506-20411511 @ $280.00
SupplyHouseT-4506-20411
AmazonSCB004H2ZI7M111 @ $175.00
ZoroG7027694111 @ $289.64
State SupplyJC127412011 @ $396.60
h-mac.comJOHNSON-CONTROLS-NU-T-4506-20411
Voomi SupplyT-4506-2041-211 @ $339.81
sustainablesupply.comC11218311-211 @ $210.78
simsupply.comCU-33385931373711011 @ $208.50
midwestapplianceparts.comT-4506-204-JO-P1-211 @ $284.40
furnacepartsource.comT-4506-20411611 @ $337.11
energycontrol.comT-4506-2041Call for Lead Time11 @ $315.17
cappusa.com16123011111 @ $241.24
hvacdiscountstore.comJOH--T-4506-2041811 @ $255.41
gsistore.comT-4506-20412611 @ $289.30
waterpumpsnow.comT-4506-2041-211 @ $248.60
Digi-Key1582703311
homeessentialsdirect.comT-4506-2041-211 @ $314.93
simsupply.comZO-G693598411911 @ $265.17
GalcoT-4506-204-JHSN111 @ $333.51
industrialstores.comT-4506-20411411 @ $342.51
blackhawksupply.comT-4506-2041-211 @ $282.98
alliedcontrols.comT-4506-2041Factory Stock11 @ $262.24
grainger.caJHCT4506204111 @ $282.12
