Hamilton

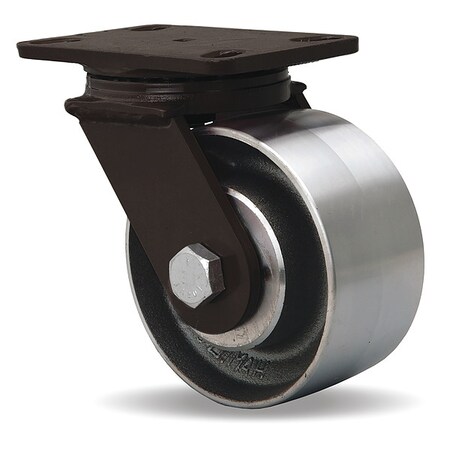

Hamilton . S-FMK-63HFSB-H4SL-FB

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameHamilton
DimensionUnitinch
GraingerSku55GZ80
UnitOfMeasureEA
Weight36
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead20
extendedQty-2
height6
jsonUrlData924526ffbdad25e5923b
length, width10
moq, multiple, tierMinQty1, Number of Wheels1
MPNS-FMK-63HFSB-H4SL-FB
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9073922
tierPrice1650.87
urlhttps://www.zoro.com/hamilton-plate-caster-2400-lb-load-rating-s-fmk-63hfsb-h4sl-fb/i/G9073922/
Caster Sub-TypeSwivel
Load Rating2400 lb
Wheel Dia6 in
Wheel Width, Overall Wheel Width3 in
Swivel Lead2 1/4 in
Leveling Caster, NSF Listed, Includes Thread Guards, With Toe Plate, Non-Marking, Includes Mounting FastenersNo
Number of Mounting Holes4
Swivel Radius5 1/4 in
Swivel Lock Type4-Position Directional Lock
Outside Bolt Hole Spacing3-3/8 in x 5-1/4 in
Mounting Plate Size4 1/2 in x 6 1/2 in
FeaturesDurable, High Heat, Quiet Operation, Reliable
Operating Temperature Range-50 Degrees to 200 Degrees F
Frame ConstructionForged
For Axle Dia3/4 in
ItemHeat-Resistant Standard Plate Caster
Brake LocationRight Side
For Surface TypeConcrete
Load Rating Range1000 to 2999 lb
Wheel Bearing MaterialStainless Steel
Wheel Bearing TypePrecision Ball
Caster Product GroupKingpinless Caster with 4-Position Directional Lock and Brake
Swivel Raceway TypeSingle Ball
Wheel/Tread Color, Core ColorSilver
Mounting Plate Thickness5/16 in
Includes Spanner Bushing, ESD ConductiveYes
Tire StyleTubeless
Inside Bolt Hole Spacing2-7/16 in x 4-15/16 in
Caster Mounting TypePlate
Mounting Height7 1/2 in
Tread ShapeStandard
Caster Frame Material, Wheel/Tread MaterialSteel
Wheel TypeFlat-Free
Frame ColorBlack
Wheel/Tread Hardness179 BHN
Caster Brake TypeSide Pedal Brake
StandardsICWM
Wheel/Tread Hardness RatingExtra Hard
ApplicationAerospace Tooling, All Purpose Industrial/Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Swivel ConstructionKingpinless
Mounting Plate Bolt Hole PatternA
SeriesMagmaMax
Wheel Core MaterialForged Steel
Wheel Core TypeSolid
Swivel Bearing Seal TypeOpen
TreadFlat
Frame FinishEnamel
Mounting Bolt Dia1/2 in
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9073922111 @ $650.87
Grainger55GZ8011
