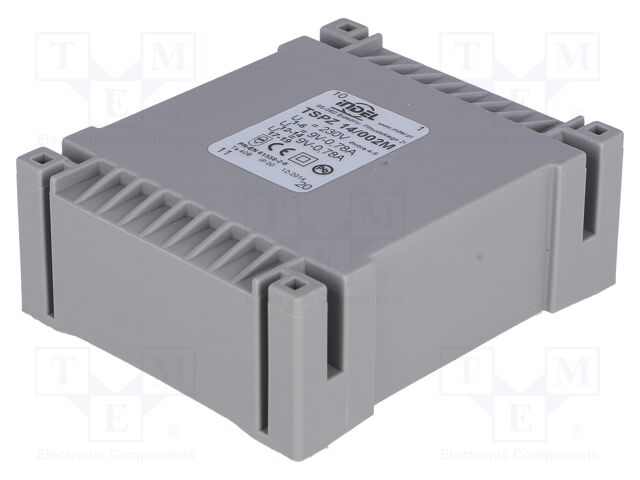

INDEL TSPZ14/002 | Transformer: encapsulated; 14VA; 230VAC; 9V; 9V; 780mA; 780mA; PCB
INDEL TSPZ14/002 | Transformer: encapsulated; 14VA; 230VAC; 9V; 9V; 780mA; 780mA; PC
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | INDEL |
|---|---|
| CategoryL1 | Transformers and Ferrite Cores |
| CategoryL2 | PCB transformers |
| Extra Product Name | INDEL TSPZ14/002 | Transformer: encapsulated; 14VA; 230VAC; 9V; 9V; 780mA; 780mA; PCB |
| atoms, moq, multiple | 1 |
| jsonUrlData | 92c3f7413ad8d0be5ad394a97d852eff. |
| jsonUrlData2 | bc6073da92f6d1d133a1 |
| keywords | INDEL, TSPZ14/002, TSPZ14/2X9V |
| MPN | TSPZ14/002 |
| qtyInStock | 0 |
| SKU | TSPZ14/2X9V |
| snippet | INDEL TSPZ14/002 | Transformer: encapsulated; 14VA; 230VAC; 9V; 9V; 780mA; 780mA; PC |
| Type of transformer | encapsulated |
| Power | 14VA |
| Primary voltage | 230V AC |
| Secondary voltage 1, Secondary voltage 2 | 9V |
| Secondary winding current 1, Secondary winding current 2 | 780mA |
| Mounting | PCB |
| IP rating | IP00 |
| Conform to the norm | PN EN 61558 |
| Thermal class | Ta40B |
| Insulation class | II |
| A dimension | 57.2mm |
| A1 dimension | 50mm |
| B dimension | 68mm |
| B1 dimension | 62.5mm |
| C dimension | 23.8mm |
| P dimension | 5mm |
| Electrical insulation strength | 4kV/60s |
| m dimension | 45mm |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TSPZ14/2X9V | 1 | 1 |
