Tsubaki

Roller Link Double Pitch | 1YFY9 | Worldwide Delivery | +44 203 287 5224 | [email protected]

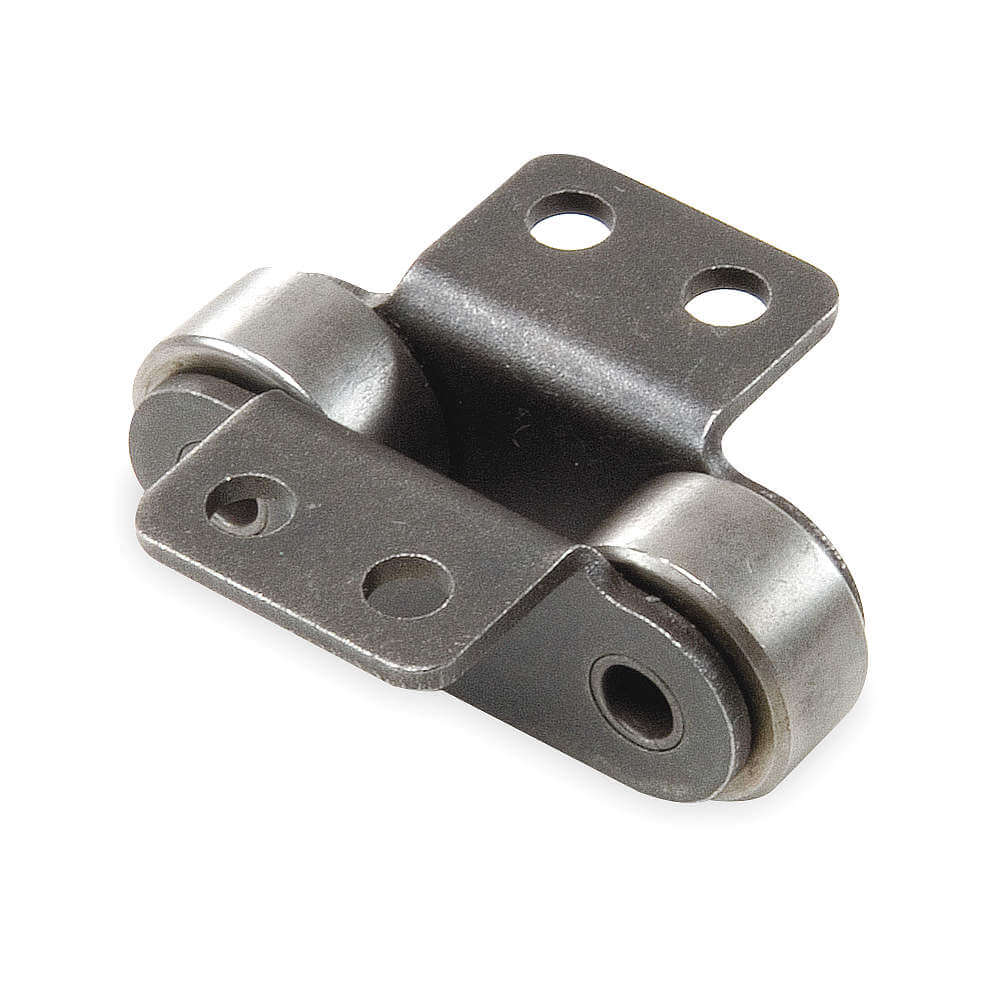

Tsubaki . C2062HK2RL

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameTsubaki
DimensionUnitinch
GraingerSku1YFY9
UPCNone
UnitOfMeasureEA
Weight0.1
WeightUnitlbs
cali_prop65_messageWARNING: Cancer - www.P65Warnings.ca.gov
cali_prop65_orglabelFalse
cali_prop65_warnmsgscenario5
cali_prop65_whtlabelTrue
countryOfOriginJP
extendedLead26
extendedQty-2
height, width1.1
jsonUrlData924526ffbdad25e5923b
length2.3
moq, multiple, tierMinQty1, Number of Tab Holes1
MPNC2062HK2RL
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG2874277
tierPrice110.02
urlhttps://www.zoro.com/tsubaki-roller-link-double-pitch-c2062hk2rl/i/G2874277/
Roller Chain Link Item, Item, Link Type, Link StyleRoller Attachment Link
Roller Chain Link TypeK-2 Heavy Conveyor
Industry Chain Size, ANSI Chain Size, For Chain Number, Chain NumberC2062H
Chain Link Material, MaterialCarbon Steel
Industry Chain Pitch1 1/2 in
Number of StrandsSingle
Chain Link Overall Width, Pin Length, Chain Overall Width1.225 in
Chain Roller Dia0.875 in
Connecting End to Center Line, Centerline to Attachment End0.652 in
Roller Link Plate Height (In ), Pin Link Plate Thickness (In )0.677
Pin TypeRiveted
Length (In )1.500
Pin Link Plate Thickness, Roller Link Plate Height, Plate Height0.677 in
Agency ComplianceAmerican National Standards Institute (ANSI)
LubricationSAE 10 to SAE 50
Pitch1.5"
Overall Width (In ), Pin Length (In )1.225
Width Between Roller Link Plates (In )0.500
Rivet End to Center Line, Centerline to Hole Center0.573 in
Connecting End to Center Line (In )0.652
Max Allowable Load1,410 lb
Tensile Strength9,040 lb
Outside Pin Dia, Inside Pin Dia, Extended Pin Diameter0.234 in
TypeK-2 Attachment
Outside Pin Dia (In )0.234
Tensile Strength (Lb )9040
Width Between Roller Link Plates, Plate Thickness0.5 in
Rivet End to Center Line (In )0.573
Temp Range15 Degrees to 300 Degrees F
Roller Dia (In )0.875
Max Allowable Load (Lb )1410
Roller Diameter7/8 in
For Chain StyleStandard Conveyor Chains
StandardsANSI
Maximum Operating Temperature300 Degrees F
Attachment Type (Broad - style), Attachment Type (Broad - application), Attachment TypeTab
Pin ContructionRiveted Pin
Minimum Operating Temperature15 Degrees F
Attachment NumberK-2
For Chain Style (combined)Plain Steel
Country of Origin (subject to change)Japan

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG2874277111 @ $10.02
Grainger1YFY911
Raptor SuppliesAB4JJA111 @ $28.50
sustainablesupply.comC16410921-211 @ $14.78
