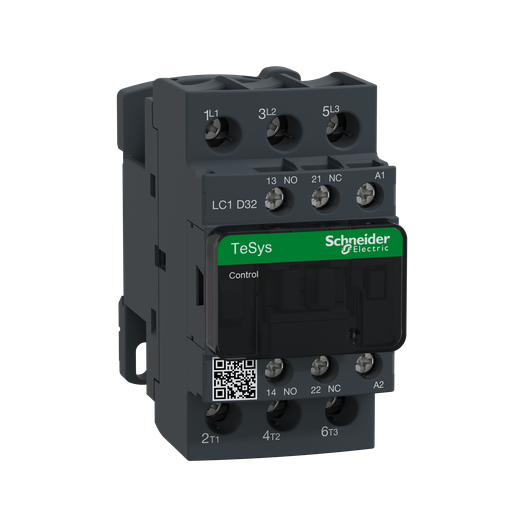

IEC contactor, TeSys Deca, nonreversing, 32A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 415VAC 50/60Hz coil, open | Mayer Electric

SQUARE D . SQDLC1D32N7

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameIEC contactor, TeSys Deca, nonreversing, 32A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 415VAC 50/60Hz coil, open | Mayer Electric
UPC3389110351118
Weight0.375
WeightUnitkg
Weight_AttribNet Weight
depth, length92.0
height85.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-IEC-contactor-TeSys-Deca-nonreversing-32A-20HP-at-480VAC-up-to-100kA-SCCR-3-phase-3-NO-415VAC-50-60Hz-coil-open-3389110351118
jsonUrlData22624615c-4ab9-4f9a-b01e-aeea00563b69
length_AttribDepth
moq, multiple, tierMinQty11
MPN, SKUSQDLC1D32N7
qtyInStock0
tierPrice1213.36
width45.0
width_AttribWidth
Range Of ProductTeSys D || TeSys Deca
Contactor Applicationresistive load || motor control
Product Or Component Typecontactor
RangeTeSys || TeSys Deca
Utilisation CategoryAC-4 || AC-1 || AC-3 || AC-3e
Poles Description3P
Device Short Name, Compatibility CodeLC1D
Warranty18 months
Product CertificationsUL || RINA || CSA || GOST || DNV || CCC || LROS (Lloyds register of shipping) || GL || BV || UKCA
Non-Overlap Time1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
Minimum Switching Current5 mA signalling circuit
Power Dissipation Per Pole2 W AC-3 || 5 W AC-1 || 2 W AC-3e
Average Impedance2 mOhm - Ith 50 A 50 Hz power circuit
Auxiliary Contact Composition1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current10 A 60 ?C signalling circuit || 50 A 60 ?C power circuit
Control Circuit Voltage Limits0.3...0.6 Uc -40-70 ?C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60 ?C operational AC 50 Hz || 0.85...1.1 Uc -40-60 ?C operational AC 60 Hz || 1...1.1 Uc 60-70 ?C operational AC 50/60 Hz
Mounting Supportplate || rail
Contact CompatibilityM2
Control Circuit TypeAC 50/60 Hz
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Insulation Resistance> 10 MOhm signalling circuit
Rated Breaking Capacity550 A 440 V power circuit IEC 60947
Irms Rated Making Capacity140 A AC signalling circuit IEC 60947-5-1 || 250 A DC signalling circuit IEC 60947-5-1 || 550 A 440 V power circuit IEC 60947
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
Inrush Power In Va70-70 VA 60 Hz 0.75 20 ?C) || 70-70 VA 50 Hz 0.75 20 ?C)
Pole Contact Composition3 NO
Coil Technologywithout built-in suppressor module
Minimum Switching Voltage17 V signalling circuit
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability15 Mcycles
Auxiliary Contacts Typemechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
Operating Altitude0...9842.52 ft (0...3000 m)
Hold-In Power Consumption In Va7.5-7.5 VA 60 Hz 0.3 20 ?C) || 7-7 VA 50 Hz 0.3 20 ?C)
Overvoltage CategoryIII
[Ui] Rated Insulation Voltagepower circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL
Protective Coverwith
Rohs Exemption Information, Mercury Free, Pvc Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP110229EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Circularity ProfileENVEOLI1102029EN
Eu Rohs DirectiveCompliant
Mechanical Robustnessvibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed15 Gn for 11 ms || shocks contactor open8 Gn for 11 ms
Height85 mm
Climatic WithstandIACS E10 || IEC 60947-1 Annex Q category D
Net Weight0.375 kg
Ambient Air Temperature For Storage-60-80 ?C
Fire Resistance850 ?C IEC 60695-2-1
Width45 mm
Depth92 mm

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDLC1D32N7111 @ $213.36
