Miller Electric

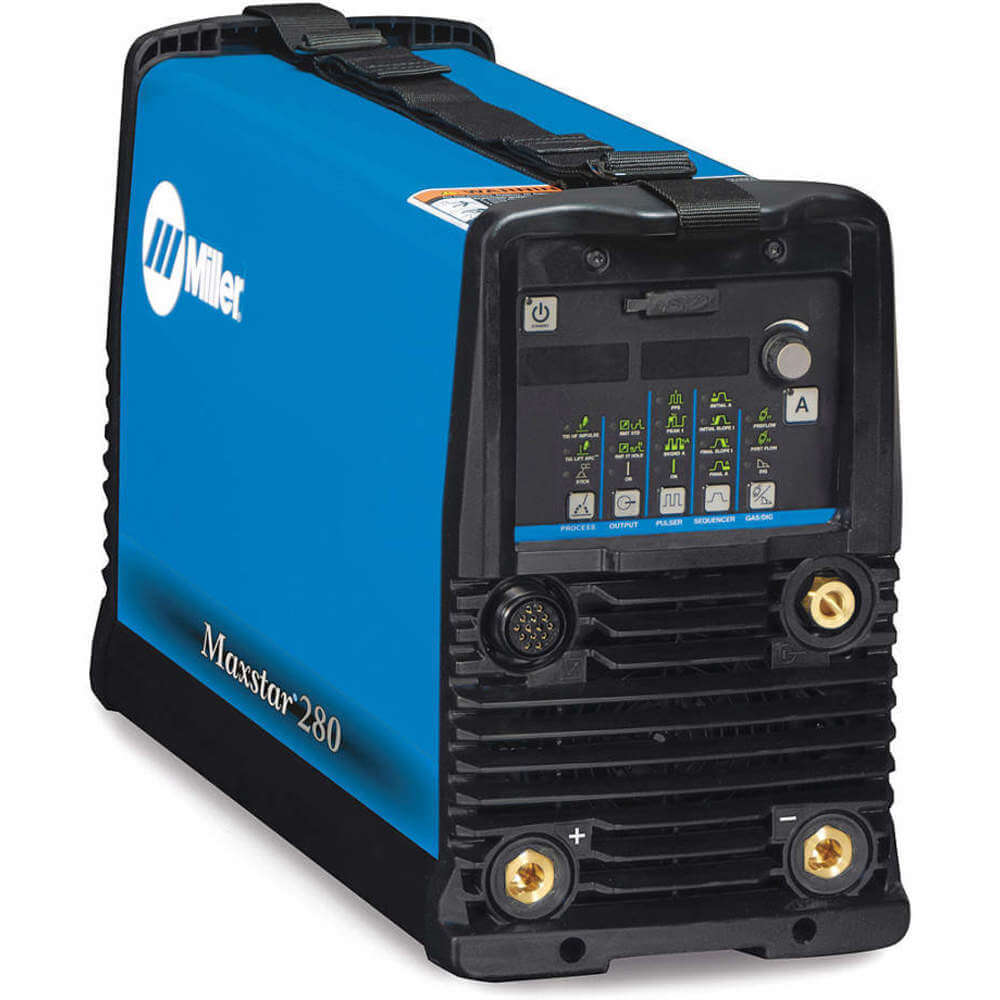

Tig Welder AC/DC 1 to 280A Maxstar | 35MC60 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Miller Electric . 907553

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameMiller Electric
DimensionUnitinch
GraingerSku35MC60
UnitOfMeasureEA
Voltage, Input Voltage208 to 575V AC
Weight52.55
WeightUnitlbs
cali_prop65_cancercausechem, cali_prop65_reproharmcausechemLead
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario4
countryOfOriginUS
extendedLead15
height17.1
jsonUrlData924526ffbdad25e5923b
length26.7
moq, multiple, tierMinQty1, Welder Min Output Amps1
MPN, Model907553
qtyInStock, qtyInStockOverride0
qtySourceqtyInStockOverride
SKUG9124166
tierPrice18685.00
urlhttps://www.zoro.com/miller-electric-tig-welder-maxstar-280-dx-series-208-to-575v-ac-280-max-output-amps-235a-19v-rated-output-907553/i/G9124166/
width12.9
Promotion RestrictionNot eligible for promotion
Welder Industrial ClassMedium
ItemTIG Welder
Welding ProcessesPulsed TIG, Stick, TIG
Mild Steel - Material Thickness0.004 in to 3/8 in
Rated Output235A @ 19V
Welder Max Output Amps280
Welder Duty Cycle60 %
SeriesMaxstar 280 DX
ApplicationAerospace, Boat / Yacht, Construction, Heavy Equipment Manufacturing, High Purity Processing, Infrastructure, Manufacturing, Railcar, Shipbuilding
Input (Amps)28/26/15/13/10
Welder Input Phase1 or 3
Power Source Weight47 lb
Overall Width8 5/8 in
Welder Input Hz50/60
Overall Height13 5/8 in
Welded MaterialSteel
PolarityAC/DC
FeaturesBuilt-In Pulser, HF Arc Starting, Hot-Start(TM) for stick, Inverter-Based DC Power Source, Memory Card Expandable, Portable, Pro-Set(TM), Programmable HF Start Parameters, Stick-Stuck Detect
Overall Depth22 1/2 in
Includes(2) 50 mm Dinse style connectors, 8 ft (2.4 m) primary cord, Adjustable shoulder strap, Maxstar(R) 280 DX
Input Voltage (Nominal)208V, 240V, 400V, 480V, 575V
Stick Welding Minimum Output Current, TIG Welding Minimum Output Current1 A
TIG Welding Output @ Duty Cycle, Stick Welding Output @ Duty Cycle235 A @ 19 V, 60%
Welder Kit Type, Kit Includes, Welder Type (Merch)Power Source Only
Amperage Range1 to 280 A
Welding ModeCC
ColorBlue/Black
For Material TypeSpecialty Metals, Stainless Steel, Steel
Max Input Current20 A @ 208V (Three-Phase), 30 A @ 208V (Single-Phase)
Input Frequency50/60 Hz
For Minimum Material Thickness0.004 in (Steel)
Open Circuit Voltage60V DC
Power Cord Length8 ft
Power Cord IncludedYes
For Maximum Material Thickness3/8 in (Steel)
TIG Welding Maximum Output Current, Stick Welding Maximum Output Current280 A
Max Amperage Range (TIG)150 A - 300 A
Rated Output at Duty Cycle (TIG)250 A @ 60%
Plug TypeBare Leads
ProcessStick Welding (SMAW), TIG Welding (GTAW)
brand-mfr modelMILLER ELECTRIC - 907553
Process (Merch)GTAW, SMAW, CAC-A
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9124166111 @ $8685.00
Grainger35MC6011
Raptor SuppliesAH4VDA111 @ $9547.24
