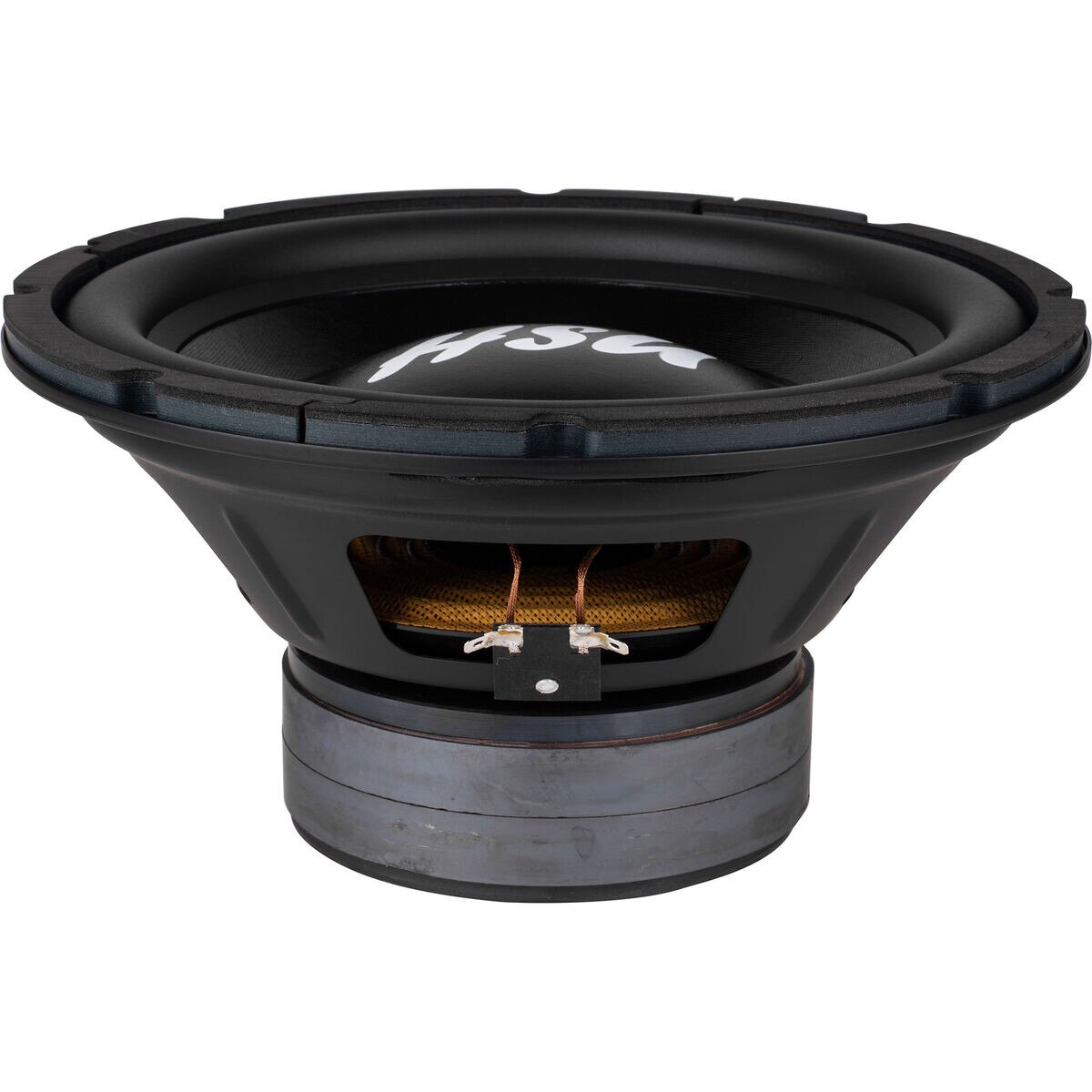

HSU Research V-PF-12100LP 12" Subwoofer

HSU Research V-PF-12100LP 12" Subwoofer. Part Number: 299-4020 by Factory Buyouts.

Factory Buyouts . V-PF-12100LP

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandFactory Buyouts
DimensionUnitinch
Extra Product NameHSU Research V-PF-12100LP 12" Subwoofer
UPC848864058559
Weight17.55
WeightUnitlbs
depth, length5.61
diameter, height, width12.25
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelV-PF-12100LP
qtyInStock0
SKU, Part Number299-4020
snippetHSU Research V-PF-12100LP 12" Subwoofer. Part Number: 299-4020 by Factory Buyouts.
Unit of MeasureEach
Nominal Diameter12"
Power Handling (RMS)400 Watts
Impedance4?
Frequency Response24 to 500Hz
Sensitivity86.56dB 2.83V/1m
Voice Coil Diameter2.5"
Resonant Frequency (Fs)24.9Hz
DC Resistance (Re)3.933?
Voice Coil Inductance (Le)1.977mH
Mechanical Q (Qms)4.131
Electromagnetic Q (Qes)0.4899
Total Q (Qts)0.438
Compliance Equivalent Volume (Vas)3.28ft?
Mechanical Compliance of Suspension (Cms)0.254mm/N
BL Product (BL)14.226T?m
Diaphragm Mass Inc Airload (Mms)161.14g
Maximum Linear Excursion (Xmax)13mm
Surface Area of Cone (Sd)502.7cm?
Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter12.25"
Baffle Cutout Diameter11.05"
Depth5.61"
# Mounting Holes8
Sealed Volume0.772ft?
Sealed F352.05Hz
Vented Volume3.534ft?
Vented F323Hz
