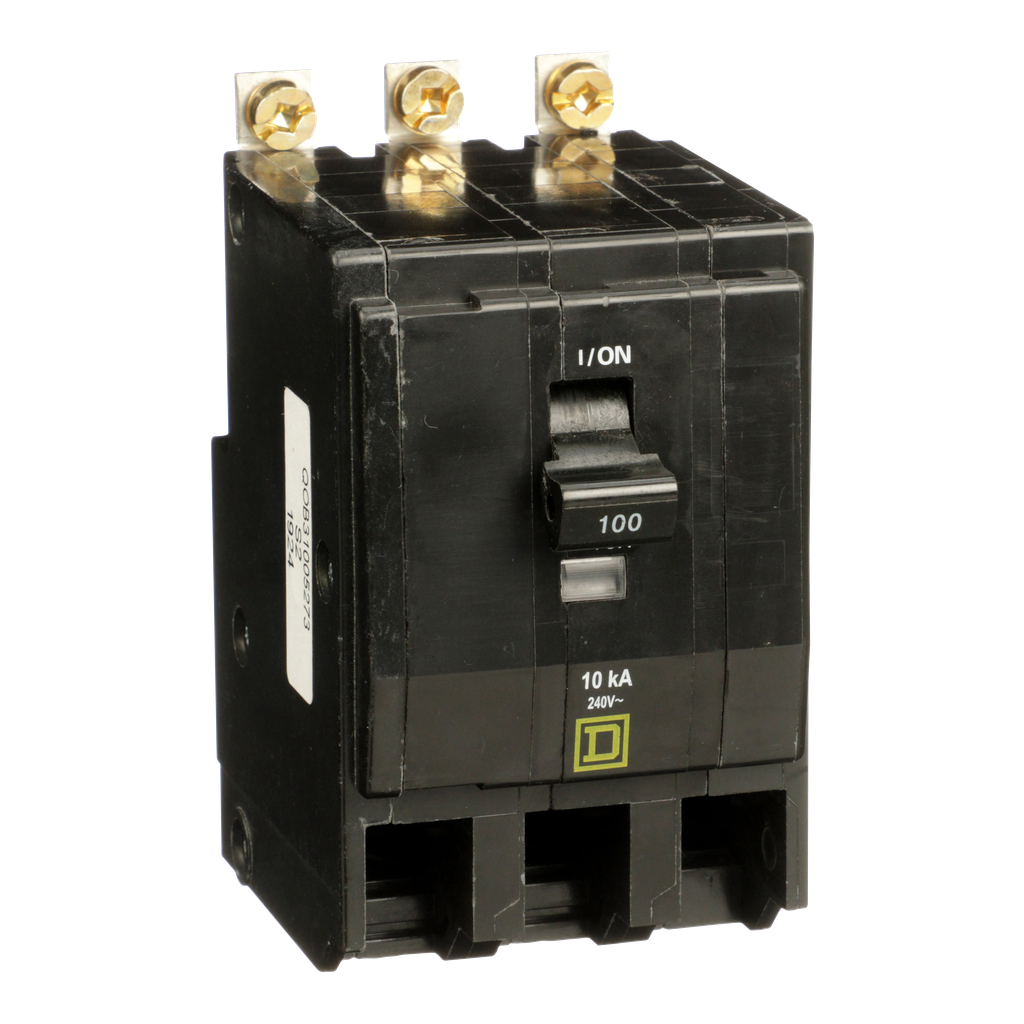

Mini circuit breaker, QO, 100A, 3 pole, 120/240VAC, 10kA, bolt on mount, ring terminals | Mayer Electric

Mayer Electric Supply . QOB31005273

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameMini circuit breaker, QO, 100A, 3 pole, 120/240VAC, 10kA, bolt on mount, ring terminals | Mayer Electric
UPC785901590163
Weight0.485
WeightUnitkg
Weight_AttribNet Weight
depth, length74.0
height89.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Square-D-QO-and-QOB-Miniature-Circuit-Breakers-QOB-Circuit-Breakers-QOB31005273-785901590163
jsonUrlData2361805ea-5c1e-4180-a0e0-abd20062e2fa
length_AttribDepth
moq, multiple, tierMinQty11
MPNQOB31005273
qtyInStock0
SKUSQDQOB31005273
tierPrice1481.47
width57.0
width_AttribWidth
Circuit Breaker ApplicationHACR rated
Circuit Breaker Typestandard
Mounting Modebolt-on
Range Of ProductQO
Poles Description3P
Electrical Connectionring tongue
Line Rated Current100 A
Product Or Component Typeminiature circuit-breaker
[Ue] Rated Operational Voltage120/240 V AC || 240 V AC || 120 V AC
Warranty18 months
Height89 mm
Breaking Capacity10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
Tightening Torque4.6-4.6 N.m
Number Of Spaces Required3
Awg GaugeAWG 4...AWG 2/0 copper or aluminium
Width57 mm
Depth74 mm
Net Weight0.485 kg
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information, Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingCadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen Content PerformanceHalogen free product
Product CertificationsUL Listed || CSA
Ambient Air Temperature For Operation40 ?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDQOB31005273111 @ $481.47
