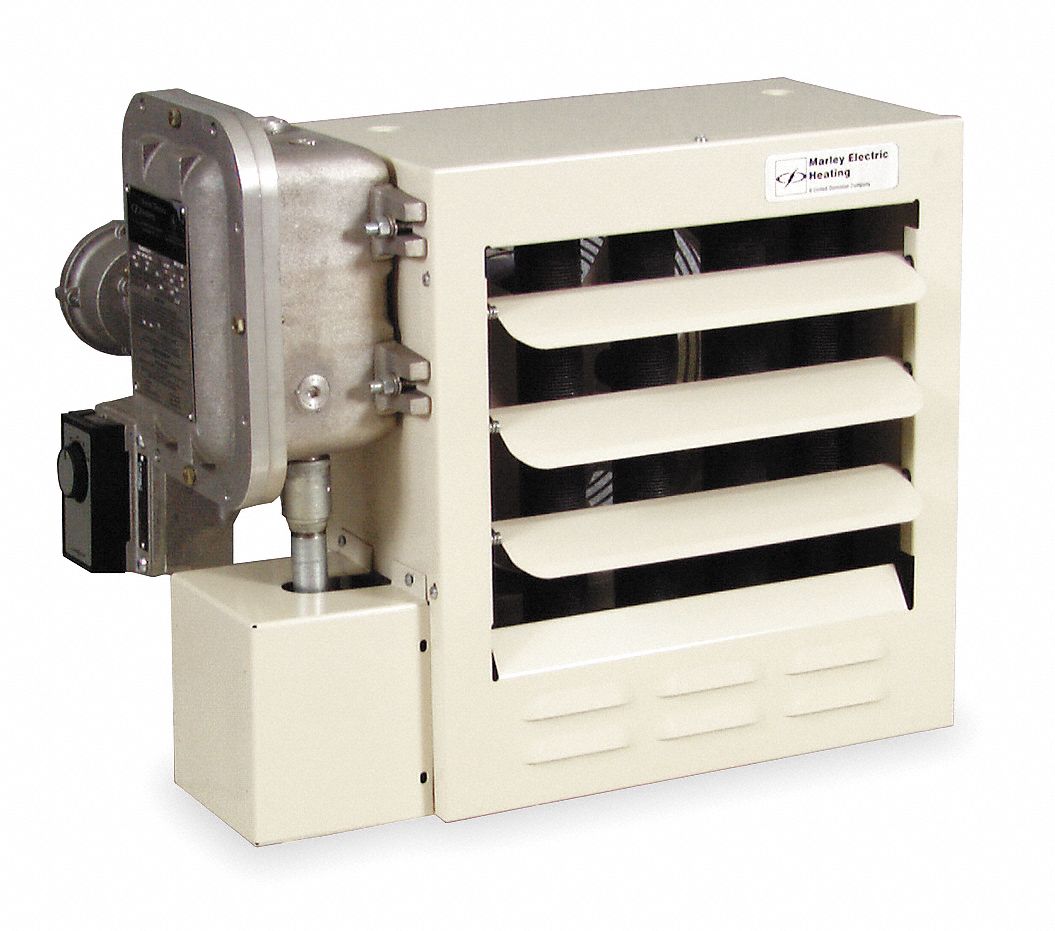

480VAC Hazardous-Location Electric Heater, 3 Phase, 12.7 Amps AC
14 Gauge Steel Material; 23-7/8 Inch W X 21 Inch D X 19-1/8 Inch H Size; Powder Coated Finish; 3 Phase(S); UL (Canada and Us) Approval
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Qmark |
|---|---|
| DimensionUnit | inch |
| GraingerSku | 5NF01 |
| Extra Product Name | 480VAC Hazardous-Location Electric Heater, 3 Phase, 12.7 Amps AC |
| UPC | 685360033969 |
| UnitOfMeasure | EA |
| Voltage | 480V AC |
| Weight | 138 |
| WeightUnit | lbs |
| cali_prop65_orglabel, cali_prop65_whtlabel | False |
| countryOfOrigin | MX |
| extendedLead | 26 |
| extendedQty | -2 |
| height | 28 |
| jsonUrlData | 924526ffbdad25e5923b |
| length, width | 31 |
| moq, multiple, tierMinQty1 | 1 |
| MPN | GUX10004832 |
| perItemShipping | 104.00 |
| qtyInStock | 0 |
| qtyInStockOverride | Drop Ship |
| SKU | G2650191 |
| tierPrice1 | 5438.84 |
| url | https://www.zoro.com/qmark-480vac-hazardous-location-electric-heater-3-phase-127-amps-ac-gux10004832/i/G2650191/ |
| Heater Voltage | 480VAC |
| BtuH Output | 34,120 |
| kW | 10 |
| Item | Hazardous-Location Electric Heater |
| Amps AC | 12.7 |
| Heater Type, Heating Method | Fan Forced |
| Phase | 3 |
| Air Flow | 840 cfm |
| Overall Height, Cabinet Height | 19 1/8 in |
| Overall Width, Cabinet Width | 23 7/8 in |
| Hz | 60 |
| Standards | cULus Listed |
| Housing Material | Steel |
| Contactor Coil Voltage | 24V AC |
| Housing Finish | Powder Coated |
| Includes | Steel Tubes, Aluminum Fins, Non-Toxic Heat Transfer Fluid, Pressure Relief Plug |
| Cabinet Depth | 11 1/16 in |
| Manufacturers Warranty Length | 1 yr |
| Overall Depth | 21 in |
| Features | Ball Bearing Permanently Lubricated Explosion Proof Motor, Manual Reset High Limit Cutout, Fan Selector Switch, 120V Control Circuit and Pilot Light |
| Control Type | Thermostat |
| Voltage, Phase | 480V AC, 3-phase |
| Thermostat Included | No |
| Wattage Output | 10 kW |
| Housing Color | White |
| Heating Capacity | 34,120 BtuH |
| Overall Dimensions - H x W x D | 19-1/8 in x 23-7/8 in x 21 in |
| Frequency | 60 Hz |
| Amperage | 12.7 A |
| Cabinet Dimensions - W x H x D | 23-7/8 in x 19-1/8 in x 11-1/16 in |
| Air Temp Rise | 36 Degrees F |
| Hazardous Location Rating | Class I, Group C and D, Division 1 and 2; Class II, Groups E, F and G |
| Country of Origin (subject to change) | Mexico |
