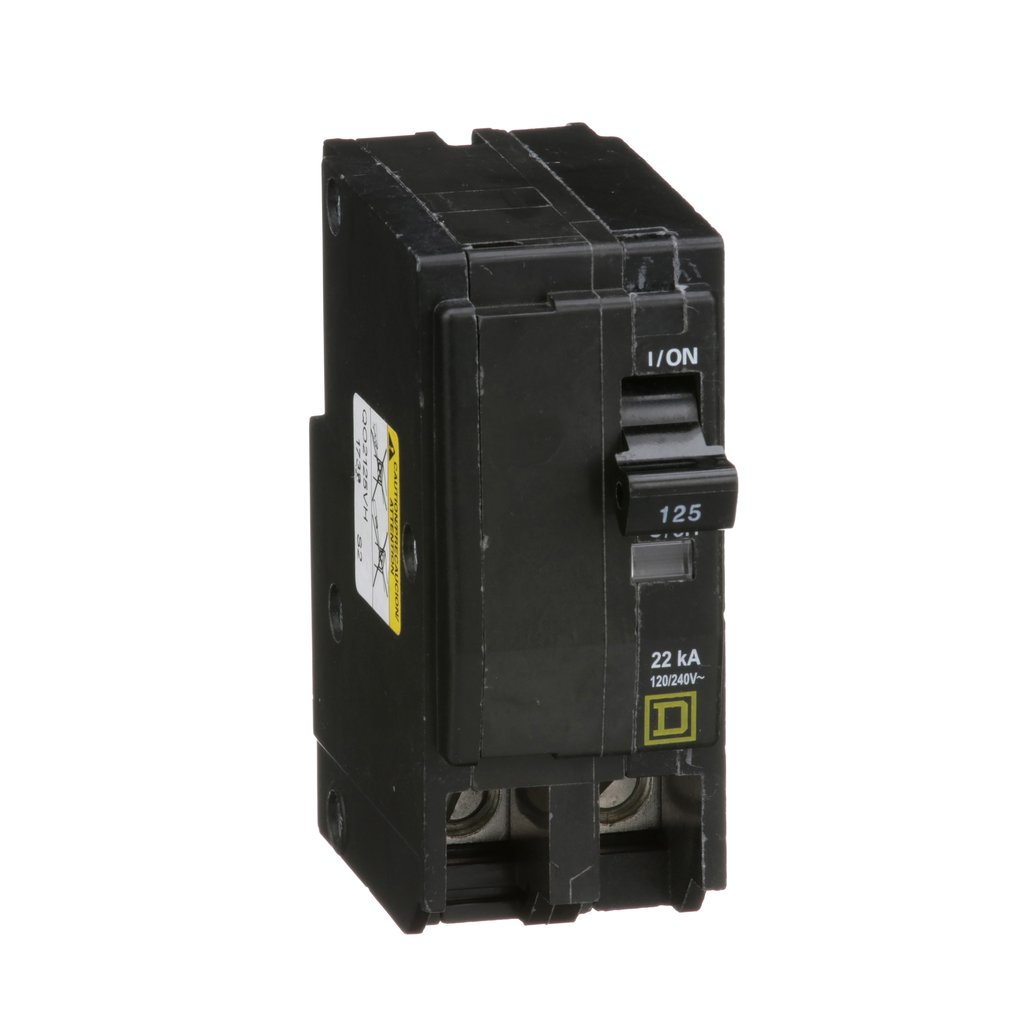

Mini circuit breaker, QO, 125A, 2 pole, 120/240VAC, 22kA, plug in mount | Mayer Electric

Shop SQUARE D at Mayer. Mini circuit breaker, QO, 125A, 2 pole, 120/240 VAC, 22 kA, plug in mount

Mayer Electric Supply . QO2125VH

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameMini circuit breaker, QO, 125A, 2 pole, 120/240VAC, 22kA, plug in mount | Mayer Electric
UPC785901054948
Weight0.318
WeightUnitkg
Weight_AttribNet Weight
depth, length74.0
height89.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Mini-circuit-breaker-QO-125A-2-pole-120-240-VAC-22-kA-plug-in-mount-785901054948
jsonUrlData23013eb7a-c168-45da-b571-abb200c9dd56
keywordsSQUARE D, Mayer SQUARE D, 785901054948, QO2125VH
length_AttribDepth
moq, multiple, tierMinQty11
MPNQO2125VH
qtyInStock0
SKUSQDQO2125VH
snippetShop SQUARE D at Mayer. Mini circuit breaker, QO, 125A, 2 pole, 120/240 VAC, 22 kA, plug in mount
tierPrice1386.7
width38.0
width_AttribWidth
Circuit Breaker Typestandard
Range Of ProductQO
Product Or Component Typeminiature circuit-breaker
Circuit Breaker ApplicationHACR rated
Mounting Modeplug-in
Poles Description2P
Electrical Connectionbox lugs
Line Rated Current125 A
[Ue] Rated Operational Voltage120/240 V AC || 120 V AC
Warranty18 months
Height89 mm
Tightening Torque4.6-4.6 N.m
Number Of Spaces Required2
Net Weight0.318 kg
Breaking Capacity22 kA 120/240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz
Awg GaugeAWG 4...AWG 2/0 copper or aluminium
Width38 mm
Depth74 mm
Rohs Exemption Information, Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingCadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Eu Rohs DirectiveCompliant
Halogen Content PerformanceHalogen free product
Product CertificationsUL Listed || CSA
Ambient Air Temperature For Operation40 ?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDQO2125VH111 @ $386.70
