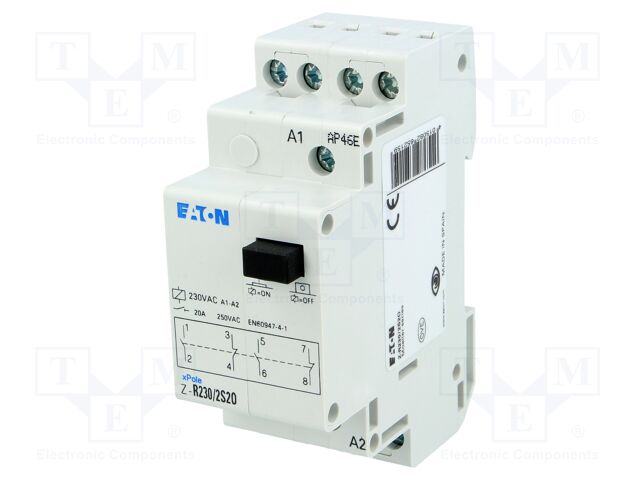

EATON ELECTRIC Z-R230/2S2O | Relay: installation; monostable; NC x2 + NO x2; Ucoil: 230VAC
EATON ELECTRIC Z-R230/2S2O | Relay: installation; monostable; NC x2 + NO x2; Ucoil: 230VA
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | EATON ELECTRIC |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Installation Relays |
| Extra Product Name | EATON ELECTRIC Z-R230/2S2O | Relay: installation; monostable; NC x2 + NO x2; Ucoil: 230VAC |
| atoms, moq, multiple | 1 |
| jsonUrlData | 7225e2e19d459d8a3499df8af4321cee. |
| jsonUrlData2 | f8c4c0d4a3e3fcc012ec |
| keywords | EATON ELECTRIC, Z-R230/2S2O |
| MPN, SKU | Z-R230/2S2O |
| qtyInStock | 0 |
| snippet | EATON ELECTRIC Z-R230/2S2O | Relay: installation; monostable; NC x2 + NO x2; Ucoil: 230VA |
| Type of relay | installation |
| Relay variant | monostable |
| Contacts configuration | NC x2 + NO x2 |
| Rated coil voltage | 230V AC |
| Switched voltage | max. 250V AC |
| Body dimensions | 35x90x60mm |
| Mounting | for DIN rail mounting |
| Max operating current | 20A |
| Operating temperature | -20...45?C |
| IP rating | IP20 |
| Leads | screw terminals |
| Relay series | Z-R |
| Design | test button |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Z-R230/2S2O | 1 | 1 |
