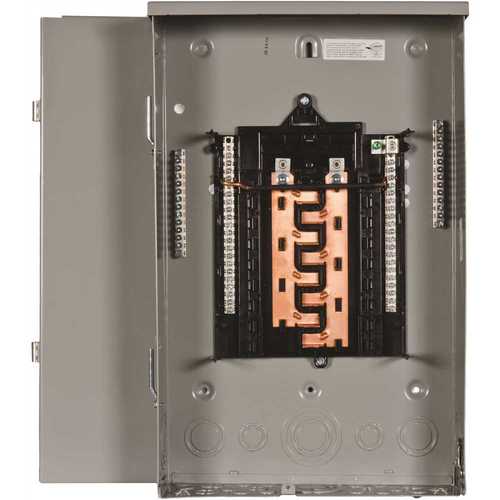

Siemens PW1624L1125CU PL Series 125 Amp 16-Space 24-Circuit Main Lug Outdoor Load Center
Siemens introduces PL Series Load Centers - a new high quality and feature-rich line of load center products to meet applications for virtually every need. The PL Series load center provides maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PL load centers feature the patented insta-wire neutral/ground system, convertibility, copper bussing and mounting tabs on the trim - these features were specifically engineered to decrease installation time and increase flexibility. Single phase 125 Amp main lug outdoor rated loa
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Manufacturer Warranty, Warranty | Lifetime |
|---|---|
| CategoryIdL3 | Load Centers |
| CategoryL1 | Electrical & Gas |
| CategoryL2 | Distribution & Breakers |
| Extra Product Name | Siemens PW1624L1125CU PL Series 125 Amp 16-Space 24-Circuit Main Lug Outdoor Load Center |
| Voltage | 120/240 |
| atoms, moq, multiple, tierMinQty1, Number of Phases, Phase, Pack Size | 1 |
| MPN | PW1624L1125CU |
| qtyInStock | 0 |
| tierPrice1 | 150.32 |
| Number of Spaces | 16 |
| Number of Circuits | 24 |
| Maximum Voltage | 120/240 Volt |
| Maximum Amperage | 125 |
| Load center width (in ) | 4.72 |
| Load Center Type | Main Lug |
| Indoor/Outdoor | Outdoor |
| Certifications and Listings | UL Listed |
| Amperage | 125 Amp |
| Mounting Type | Plug In |
| UNSPSC | 39121101 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| PW1624L1125CU | 1 | 1 | 1 @ $150.32 |
