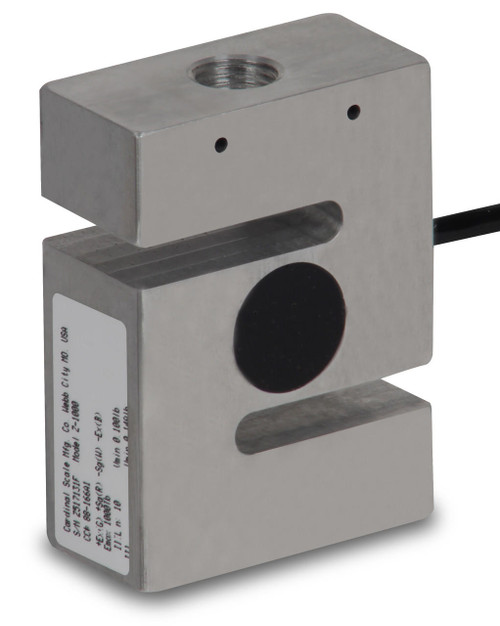

Cardinal Detecto Z-1000 1000 lb S-Beam Load Cell, NTEP - Scales Plus

Scales Plus offers free product support from experienced technicians. Have questions about the Detecto Z-1000? Contact us for free product support!

Detecto . Z-1000

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDetecto
DimensionUnitinch
Extra Product NameCardinal Detecto Z-1000 1000 lb S-Beam Load Cell, NTEP - Scales Plus
height1.6
height_AttribHeight
keywordsIndustrial Scales, Digital Scales, Laboratory Balances, Calibration Weights, Cannabis Scales, Jewelry Scales, NTEP Certified Scales, Load Cells
length2.0
length_AttribLength
moq, multiple, tierMinQty11
MPN, SKU, ModelZ-1000
qtyInStock0
snippetScales Plus offers free product support from experienced technicians. Have questions about the Detecto Z-1000? Contact us for free product support!
tierPrice1397.8
width1.0
width_AttribWidth
NTEPYes
CertificationNTEP Approved Class III 1:5000 and IIIL 1:10,000
Capacity1000 lb
Safe Overload150% capacity
Ultimate Overload300% capacity
Length2"
Height1.6"
Width1"
Hole Threading1/2????-20 NF
ConstructionAluminum
Cable Color CodeGreen = + Excitation, Black = - Excitation, Red = + Signal, White = - Signal, Yellow = Shield
Rated Excitation5-10 VDC (maximum of 15 V)
Full Scale Output2 mV/V ? 10%
Excitation Terminal Resistance415 ? 12 ohms
Signal Terminal Resistance350 ? 5 ohms
Insulation Resistance5000 megohms
Seal TypeEnvironmentally sealed
IP RatingIP67
Cable Length30 ft

Distributor offers

SellerSKUMOQIn stockMultiplePrices
scalesplus.comZ-1000111 @ $397.80
