Ingersoll-Rand

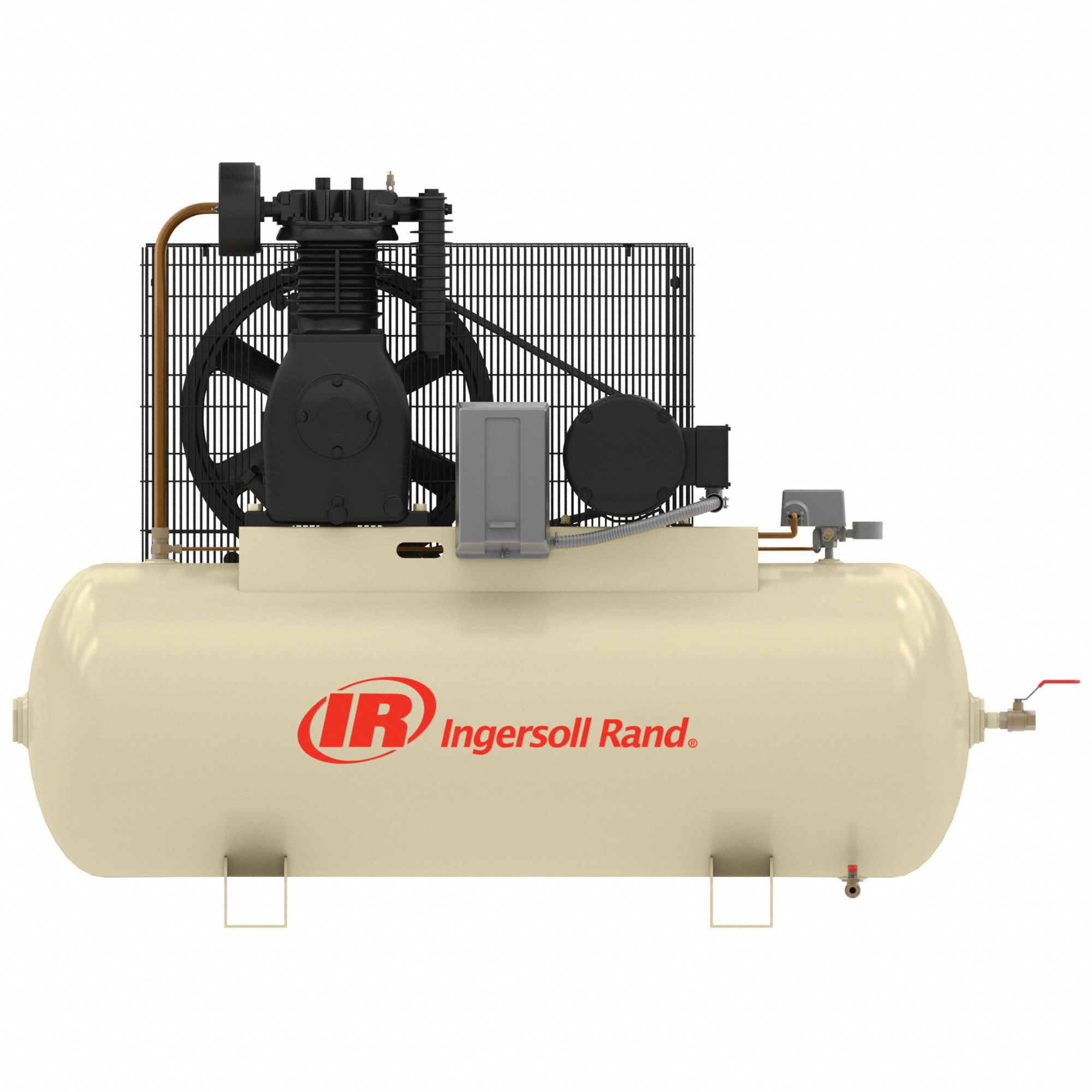

Ingersoll-Rand . 247PD5-P (460-3-60)

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameIngersoll-Rand
DimensionUnitinch
GraingerSku786FF5
UPC678384780018
UnitOfMeasureEA
Voltage, Input Voltage, Compressor Voltage460V AC
Weight684.2
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead20
extendedQty-2
height47.99
jsonUrlData924526ffbdad25e5923b
length64.02
moq, multiple, tierMinQty11
MPN247PD5-P (460-3-60)
perItemShipping100.00
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG002716500
tierPrice15238.91
urlhttps://www.zoro.com/ingersoll-rand-electric-air-compressor-247pd5-p-460-3-60/i/G002716500/
width20.98
Overall Length, Length64
Overall Height, Height48
Overall Width, Width21
Motor Type, Enclosure Type, Compressor Motor TypeOpen Dripproof
Cylinder Material, Valve MaterialCast Iron
ASME TankYes
Number of Stages, Number of Cylinders2
ItemCompressor
Compressor Package TypeFully Packaged
Free Air CFM @ 90 PSI - Air Compressor1.00
Control TypeMagnetic Starter
Current Rating7.6 A
Number of Mounting Holes4
Maximum Operating Temperature104 Degrees F
Insulation ClassODP
Duty CycleContinuous
Inlet Size1 in
Minimum Operating Temperature50 Degrees F
Free Air Flow Rate @ Maximum Pressure, Free Air Flow Rate @ Max Pressure19.1 cfm
Thermal ProtectionManual Reset
Series247P
Outlet Size1 1/4 in
Inlet Type, Outlet TypeNPT
Sound Level83 dBA
Frequency60 Hz
Pump StyleSimplex
Mounting StyleThru-Bolt
Output Power5 hp
Air Tank Size80 gal
Valve TypeDisc
Pump TypeReciprocating
Air Tank Style, Tank Style (Broad)Horizontal
Enclosure RatingNEMA 1
Wattage4 kW
Maximum Operating Pressure, Max Operating Pressure175 psi
Pump LocationTop Mount
Maximum Speed550 RPM
Outlet Gender, Inlet GenderFemale
Sound Level RangeStandard (70 dBA or more)
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG002716500111 @ $5238.91
Grainger786FF5111 @ $5245.93
