Tsubaki

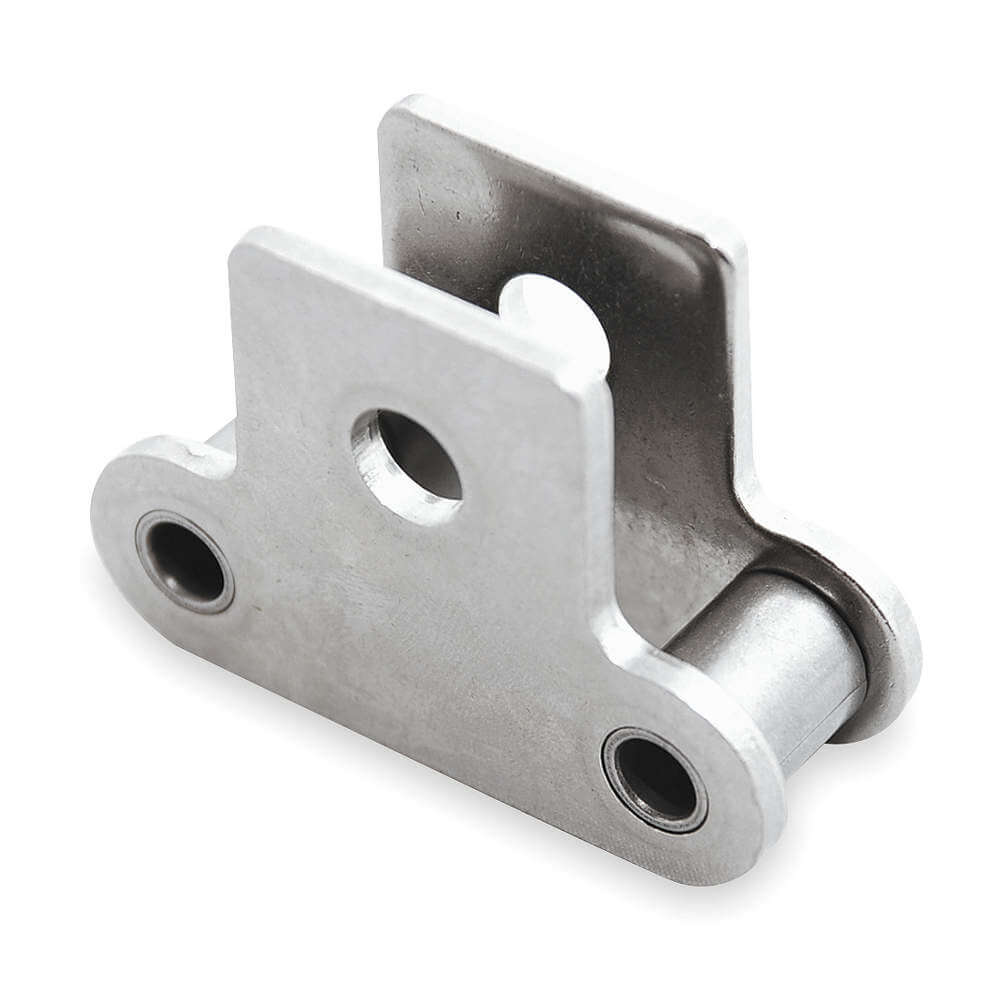

Roller Link Double Pitch | 1YGA5 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Tsubaki . C2062HASSK1RL

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameTsubaki
DimensionUnitinch
GraingerSku1YGA5
UPCNone
UnitOfMeasureEA
Weight0.1
WeightUnitlbs
cali_prop65_messageWARNING: Cancer - www.P65Warnings.ca.gov
cali_prop65_orglabelFalse
cali_prop65_warnmsgscenario5
cali_prop65_whtlabelTrue
countryOfOriginJP
extendedLead26
extendedQty-2
height, width1.1
jsonUrlData924526ffbdad25e5923b
length2.3
moq, multiple, tierMinQty1, Number of Tab Holes1
MPNC2062HASSK1RL
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG0307151
tierPrice140.00
urlhttps://www.zoro.com/tsubaki-roller-link-double-pitch-c2062hassk1rl/i/G0307151/
Roller Chain Link Item, Item, Link Type, Link StyleRoller Attachment Link
Roller Chain Link TypeSK-1 Heavy Conveyor
Industry Chain Size, Chain Number, For Chain NumberC2062H
Chain Link Material600 Stainless Steel
Industry Chain Pitch1 1/2 in
Number of StrandsSingle
Chain Link Overall Width, Pin Length, Chain Overall Width1.225 in
Chain Roller Dia0.875 in
ANSI Chain SizeC2062HAS
Roller Link Plate Height, Pin Link Plate Thickness, Plate Height0.677 in
Inside Pin Dia, Outside Pin Dia, Extended Pin Diameter0.234 in
Max Allowable Load1,410 lb
TypeSK-1 Attachment
Roller Dia (In )0.875
Pin Link Plate Thickness (In ), Roller Link Plate Height (In )0.677
Width Between Roller Link Plates (In )0.500
Connecting End to Center Line, Centerline to Attachment End0.652 in
Pitch1.5"
Rivet End to Center Line, Centerline to Hole Center0.573 in
Overall Width (In ), Pin Length (In )1.225
Tensile Strength9,040 lb
Temp Range-40 Degrees to 750 Degrees F
Agency ComplianceAmerican National Standards Institute (ANSI)
Pin TypeRiveted
MaterialStainless Steel
LubricationSAE 10 to SAE 50
Connecting End to Center Line (In )0.652
Width Between Roller Link Plates, Plate Thickness0.5 in
Tensile Strength (Lb )9040
Max Allowable Load (Lb )1410
Outside Pin Dia (In )0.234
Length (In )1.500
Rivet End to Center Line (In )0.573
Roller Diameter7/8 in
For Chain StyleStainless Steel Conveyor Chains
Pin ContructionRiveted Pin
Attachment Type, Attachment Type (Broad - application), Attachment Type (Broad - style)Tab
StandardsANSI
Attachment NumberSK-1
Material Grade600
Minimum Operating Temperature-40 Degrees F
Maximum Operating Temperature750 Degrees F
For Chain Style (combined)Plain Stainless Steel
Country of Origin (subject to change)Japan

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG0307151111 @ $40.00
Grainger1YGA511
Raptor SuppliesAB4JJP111 @ $120.43
sustainablesupply.comC16411031-211 @ $74.08
