Goulds Water Technology

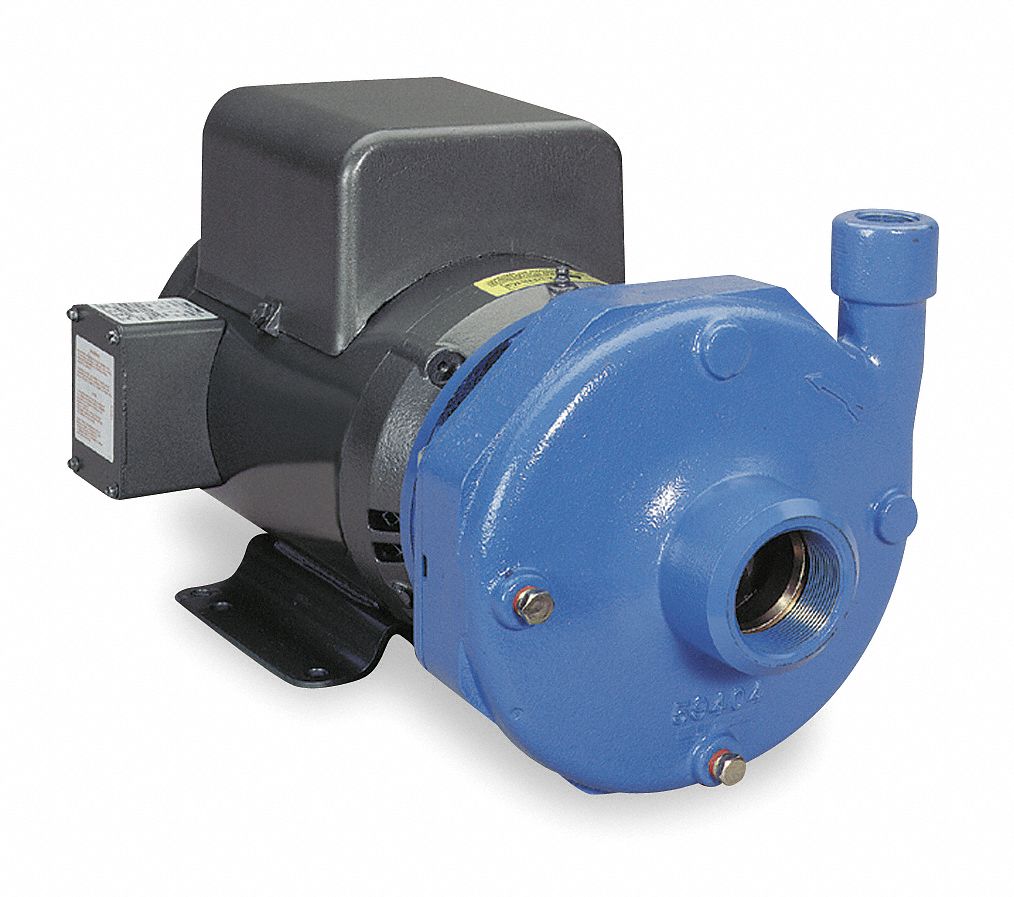

Centrifugal Pump Cast Iron 1 1/2 Hp 1ph | 2VRU3 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Goulds Water Technology . 22BF1F4H0

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameGoulds Water Technology
DimensionUnitinch
GraingerSku2VRU3
UPC, Max Dia SolidsNone
UnitOfMeasureEA
Voltage115/230VAC
Weight90
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginUS
extendedLead26
extendedQty-2
height17.3
jsonUrlData924526ffbdad25e5923b
length15
moq, multiple, tierMinQty1, Phase - Pumps, Phase, Phase Broad1
MPN22BF1F4H0
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG1121635
tierPrice12789.50
urlhttps://www.zoro.com/goulds-water-technology-cast-iron-1-12-hp-centrifugal-pump-115230v-22bf1f4h0/i/G1121635/
width25.3
HP - Pumps1 1/2 hp
Voltage - Pumps120/240V AC
Housing Material - Pumps, Pump Housing MaterialCast Iron
Inlet Size - Pumps2 in NPT
Outlet Size - Pumps1 in NPT
Max Head85 ft
Max Pressure - Pumps, Max Pressure37 psi
Motor Enclosure - PumpsTotally Enclosed Fan-Cooled
Manufacturers Warranty Length, Manufacturer Warranty Length1 yr
GPM of Water @ 10 Ft of Head, GPM of Water @ 120 Ft of Head, Includes, GPM of Water @ 20 Ft of Head, GPM of Water @ 100 Ft of Head, GPM of Water @ 15 Ft of Head, GPM of Water @ 180 Ft of Head, GPM of Water @ 40 Ft of Head, GPM of Water @ 160 Ft of Head, GPM of Water @ 30 Ft of Head, GPM of Water @ 90 Ft of Head, GPM of Water @ 200 Ft of Head, GPM of Water @ 110 Ft of Head, GPM of Water @ 5 Ft of Head, GPM of Water @ 240 Ft of Head, GPM of Water @ 220 Ft of Head, GPM of Water @ 130 Ft of Head, GPM of Water @ 140 Ft of Head, GPM of Water @ 260 Ft of Head, GPM of Water @ 280 Ft of Head, GPM of Water @ 25 Ft of Head-
GPM of Water @ 80 Ft of Head30
Best Efficiency Range GPM @ Head30 to 65 gpm @ 55 to 80 ft
GPM of Water @ 60 Ft of Head, Hz60
GPM of Water @ 70 Ft of Head50
Amps18.0/9.0
Port Rotation4 Position Increments
Best Efficiency GPM @ Head45 @ 65 ft
Max Liquid Temp, Maximum Media Temperature212 Degrees F
Max GPM @ Head65 @ 50 ft
Width10 3/8 in
ItemCentrifugal Pump
Housing MaterialCast iron
Min GPM @ Head20 @ 74 ft
Motor TypeJM
Height9 in
Wetted Materials316 Stainless Steel, Carbon, Cast Iron, Bronze, Ceramic, Buna-N
Duty, Duty CycleContinuous
Motor Enclosure, Motor Enclosure TypeTEFC
Outlet1" NPT
Inlet2" NPT
Item - Straight Centrifugal PumpsStraight Centrifugal High Head Pump
GPM of Water @ 50 Ft of Head65
Max Case Pressure, Shut Off Pressure (Maximum)175 psi
Bearing TypeBall
Seal MaterialBuna-N Elastomers, Carbon/Ceramic Face, 316 Stainless Steel Metal Parts
HP1-1/2
Length, Length (Straight Wireway)27 in
Impeller TypeClosed
Impeller MaterialBronze
Inlet Pressure100 psi
Max Specific Gravity1.1
Motor RPM3,450 RPM
Frame143
Best Efficiency Flow45 gpm
Flow Rate @ 280 ft of Head (Maximum), Flow Rate @ 1 ft of Head (Maximum), Flow Rate @ 40 ft of Head (Maximum), Flow Rate @ 10 ft of Head (Maximum), Flow Rate @ 300 ft of Head (Maximum), Flow Rate @ 120 ft of Head (Maximum), Flow Rate @ 240 ft of Head (Maximum), Flow Rate @ 220 ft of Head (Maximum), Flow Rate @ 20 ft of Head (Maximum), Flow Rate @ 90 ft of Head (Maximum)Not Applicable
Overall Height8.5 in
Flow Rate @ 50 ft of Head (Maximum)65 gpm
Compatible with Media TypeWater
Shaft MaterialStainless Steel
Wetted Material316 Stainless Steel, Bronze, Buna-N, Carbon, Ceramic
Best Efficiency Head65 ft
FeaturesBack Pull Out to Reduce Maintenance Down Time, Dynamic Balancing, Renewable Wear Rings
Flow Rate @ 60 ft of Head (Maximum)55 gpm
Frequency60 Hz
Motor Frame Designation143JM
Nameplate Voltage115/230V AC

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG1121635111 @ $2789.50
Grainger2VRU31-211 @ $2395.00
Raptor SuppliesAC3RVC111 @ $3612.60
sustainablesupply.comC17214551-211 @ $2319.78
pumpproducts.com22BF1F4H01((Usually Ships 3-5 Days))11 @ $2789.50
waterpumpsnow.com22BF1F4H011
andersonprocess.com22BF1F4H01Ships in 1-2 Weeks11 @ $2789.50
