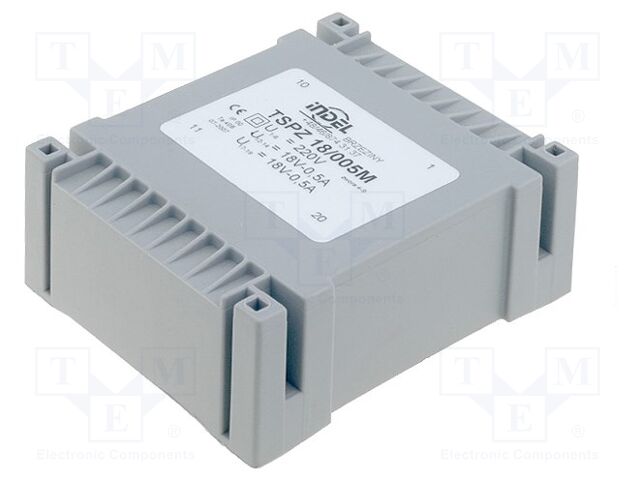

INDEL TSPZ18/005 | Transformer: encapsulated; 18VA; 230VAC; 18V; 18V; 500mA; 500mA; PCB
INDEL TSPZ18/005 | Transformer: encapsulated; 18VA; 230VAC; 18V; 18V; 500mA; 500mA; PC
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | INDEL |
|---|---|
| CategoryL1 | Transformers and Ferrite Cores |
| CategoryL2 | PCB transformers |
| Extra Product Name | INDEL TSPZ18/005 | Transformer: encapsulated; 18VA; 230VAC; 18V; 18V; 500mA; 500mA; PCB |
| atoms, moq, multiple | 1 |
| jsonUrlData | 6cee7cdba65a939298ae417c4e5868e4. |
| jsonUrlData2 | 3a90bf9bf0162c1f0516 |
| keywords | INDEL, TSPZ18/005, TSPZ18/2X18V |
| MPN | TSPZ18/005 |
| qtyInStock | 0 |
| SKU | TSPZ18/2X18V |
| snippet | INDEL TSPZ18/005 | Transformer: encapsulated; 18VA; 230VAC; 18V; 18V; 500mA; 500mA; PC |
| Type of transformer | encapsulated |
| Power | 18VA |
| Primary voltage | 230V AC |
| Secondary voltage 1, Secondary voltage 2 | 18V |
| Secondary winding current 1, Secondary winding current 2 | 500mA |
| Mounting | PCB |
| IP rating | IP00 |
| Conform to the norm | PN EN 61558 |
| Thermal class | Ta40B |
| Insulation class | II |
| A dimension | 57.2mm |
| A1 dimension | 50mm |
| B dimension | 68mm |
| B1 dimension | 62.5mm |
| C dimension | 27.1mm |
| P dimension | 5mm |
| Electrical insulation strength | 4kV/60s |
| m dimension | 45mm |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TSPZ18/2X18V | 1 | 1 |
