Marathon Motors

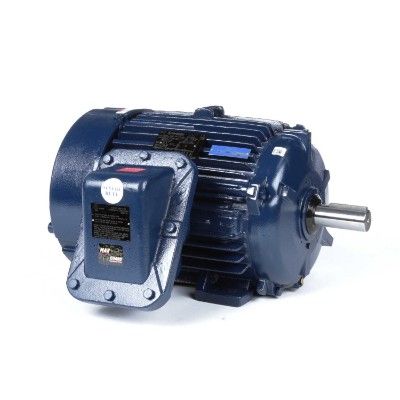

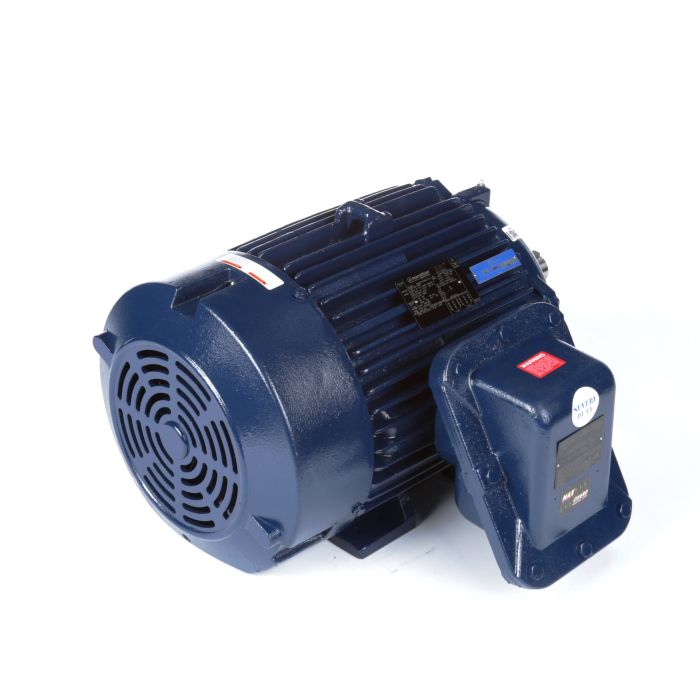

Hazardous Location Motor 3-phase Tefc 20 Hp T3b | 5VYH1 | E507 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Marathon Motors . 286TTGN16577

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameMarathon Motors
DimensionUnitinch
GraingerSku5VYH1
UPCNone
UnitOfMeasureEA
Voltage230/460V AC
Weight704
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead26
extendedQty-2
height21.5
jsonUrlData924526ffbdad25e5923b
length38
moq, multiple, tierMinQty1, No of Speeds1
MPN286TTGN16577
perItemShipping350.00
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG3525295
tierPrice15151.51
urlhttps://www.zoro.com/marathon-motors-hazardous-loc-mtr-3-ph-tefc-20-hp-t3b-286ttgn16577/i/G3525295/
width31.5
Motor Design3-Phase
PhaseThree
HP20
RPM Range1,101-1,200
Frame286T
Hazardous Location Class1 C,D / 2 F,G
Motor Thermal ProtectionT-Stat
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Motor Mounting TypeRigid Base
Motor Frame Material, Frame MaterialCast Iron
CC NumberCC003A
Max Ambient Temp40 Degrees C
Full Load Amps53.5/26.8
Green Environmental AttributeProduct Contributes To Reducing Energy Consumption
Motor Efficiency GroupNEMA Premium Efficient
Motor Shaft RotationCW/CCW
StandardsCSA Certified, UL Listed
Shaft Length4 11/16 in
Temp CodeT3B
Nameplate RPM1,175
ItemHazardous Location Motor
Motor BearingsBall
Nominal Efficiency91.7 %
Ins ClassF
Green Certification or Other RecognitionNEMA Premium Rated
Shaft Dia1 7/8 in
Voltage Compatibility200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Overall Length27 11/16 in
Motor Shaft DesignKeyed
Motor Service Factor1.15
Duty, Duty CycleContinuous
Length Less Shaft22 7/8 in
Motor ApplicationHazardous Location
NEMA DesignB
Hz60
Includes(11) Leads in Conduit Box
Lead Length8 in
Hazardous Location DivisionDivision 1
Motor Mounting PositionHorizontal
Conduit Box LocationExterior
Usable @ 208V, Usable @ 200VNo
Manufacturers Warranty Length3 yr
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3525295111 @ $5151.51
Grainger5VYH111
Raptor SuppliesAE6YJD111 @ $8539.57
Dealers Electric286TTGN165771111 @ $5567.37
sustainablesupply.comC27913321Add to Cart11 @ $6924.77
motorsandcontrol.comE507111 @ $0.00
pumpproducts.com286TTGN165771-211 @ $7699.66
mecampbell.com286TTGN165771Est Lead Time: 12 Bus Days11 @ $4788.40
grainger.caAOS286TTGN16577111 @ $5413.51
Galco286TTGN16577-MARA111 @ $5078.50
