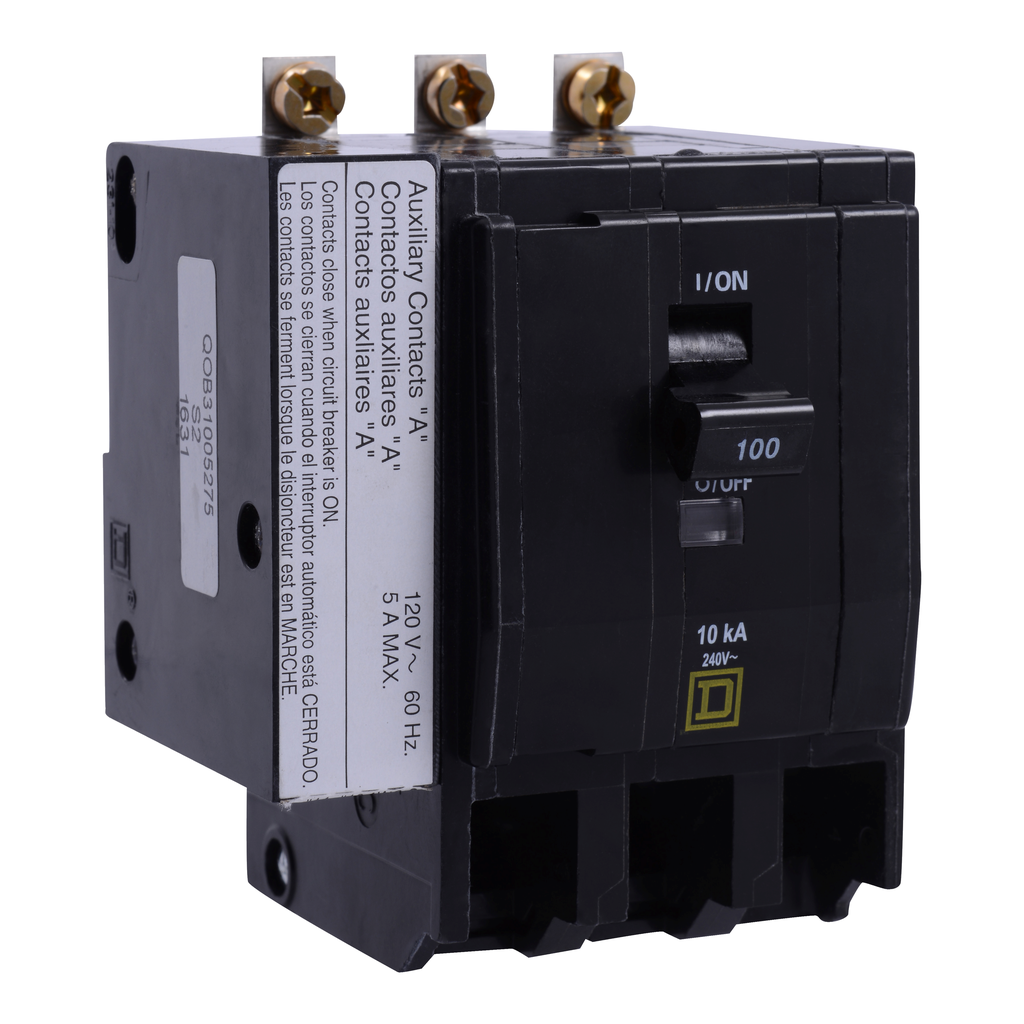

Mini circuit breaker, QO, 100A, 3 pole, 120/240VAC, 10kA, bolt on mount, aux contact, ring terminals | Mayer Electric

SQUARE D . SQDQOB31005275

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameMini circuit breaker, QO, 100A, 3 pole, 120/240VAC, 10kA, bolt on mount, aux contact, ring terminals | Mayer Electric
UPC3606486145241
Weight0.640
WeightUnitkg
Weight_AttribNet Weight
depth, length74.0
height89.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Mini-circuit-breaker-QO-100A-3-pole-120-240VAC-10kA-bolt-on-mount-aux-contact-ring-terminals-SQDQOB31005275
jsonUrlData2ced3021c-9312-4251-8cd3-aeea00576b82
length_AttribDepth
moq, multiple, tierMinQty11
MPN, SKUSQDQOB31005275
qtyInStock0
tierPrice1560.41
width57.0
width_AttribWidth
Circuit Breaker Typestandard
Range Of ProductQO
Accessory / Separate Part Typeauxiliary contact
Product Or Component Typeminiature circuit-breaker
Circuit Breaker ApplicationHACR rated
Mounting Modebolt-on
Poles Description3P
Electrical Connectionring tongue
Line Rated Current100 A
[Ue] Rated Operational Voltage120/240 V AC || 240 V AC || 120 V AC
Warranty18 months
Height89 mm
Tightening Torque4.6-4.6 N.m
Number Of Spaces Required4
Net Weight0.640 kg
Breaking Capacity10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
Awg GaugeAWG 4...AWG 2/0 copper
Width57 mm
Depth74 mm
Rohs Exemption Information, Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingCadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Eu Rohs DirectiveCompliant
Halogen Content PerformanceHalogen free product
Product CertificationsUL Listed || CSA
Ambient Air Temperature For Operation40 ?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDQOB31005275111 @ $560.41
