Hamilton

Hamilton . S-FMK-63HMB-H4SL-FB

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameHamilton
DimensionUnitinch
GraingerSku55GZ77
UnitOfMeasureEA
Weight26
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead20
extendedQty-2
height6
jsonUrlData924526ffbdad25e5923b
length, width10
moq, multiple, tierMinQty1, Number of Wheels1
MPNS-FMK-63HMB-H4SL-FB
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9072820
tierPrice1494.11
urlhttps://www.zoro.com/hamilton-plate-caster-1000-lb-load-rating-s-fmk-63hmb-h4sl-fb/i/G9072820/
Caster Sub-TypeSwivel
Load Rating1000 lb
Wheel Dia6 in
Wheel Width, Overall Wheel Width3 in

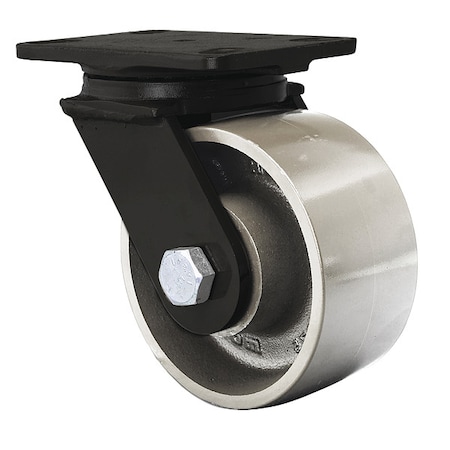

ItemHeat-Resistant Standard Plate Caster
Number of Mounting Holes4
Core Color, Wheel/Tread ColorSilver
Swivel Lock Type4-Position Directional Lock
Caster Mounting TypePlate
Includes Mounting Fasteners, Leveling Caster, With Toe Plate, Includes Thread Guards, NSF Listed, Non-MarkingNo
Brake LocationRight Side
Mounting Bolt Dia1/2 in
ESD Conductive, Includes Spanner BushingYes
Swivel ConstructionKingpinless
Wheel/Tread Material, Wheel Core MaterialCast Iron
Outside Bolt Hole Spacing3-3/8 in x 5-1/4 in
Wheel/Tread Hardness188 BHN
Load Rating Range1000 to 2999 lb
Wheel Core TypeSolid
Caster Brake TypeSide Pedal Brake
Tire StyleTubeless
Frame FinishEnamel
Swivel Lead2 1/4 in
Wheel Bearing MaterialStainless Steel
Wheel TypeFlat-Free
Mounting Height7 1/2 in
TreadFlat
Frame ConstructionForged
Inside Bolt Hole Spacing2-7/16 in x 4-15/16 in
Caster Frame MaterialSteel
Wheel Bearing TypePrecision Ball
For Surface TypeConcrete
ApplicationAerospace Tooling, All Purpose Industrial/Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Mounting Plate Size4 1/2 in x 6 1/2 in
Swivel Radius5 1/4 in
Frame ColorBlack
Swivel Bearing Seal TypeOpen
Swivel Raceway TypeSingle Ball
StandardsICWM
For Axle Dia3/4 in
FeaturesDurable, High Heat, Quiet Operation, Reliable
Tread ShapeStandard
Caster Product GroupKingpinless Caster with 4-Position Directional Lock and Brake
SeriesMagmaMax
Wheel/Tread Hardness RatingExtra Hard
Operating Temperature Range-50 Degrees to 200 Degrees F
Mounting Plate Bolt Hole PatternA
Mounting Plate Thickness5/16 in
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9072820111 @ $494.11
Grainger55GZ7711
