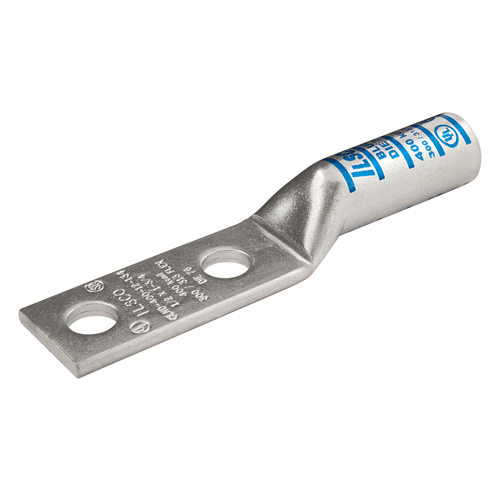

Surecrimp Copper Compression Lug, Conductor Size 300, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA | Mayer Electric

Mayer Electric Supply . CLND-300-12-134

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameSurecrimp Copper Compression Lug, Conductor Size 300, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA | Mayer Electric
UPC783669642780
Weight0.290461569904096
WeightUnitlbs
Weight_AttribWeight
height0.852
height_AttribHeight
jsonUrlData/Product/ILSCO-Surecrimp-Copper-Compression-Lug-Conductor-Size-300-2-Holes-1-2in-Bolt-Size-1-3-4in-Hole-Spacing-Long-Barrel-No-Sight-Window-Tin-Plated-UL-CSA-783669642780
jsonUrlData2f3e99dbd-6702-4df9-80f8-abb200c8ec1b
length5.587
length_AttribLength
moq, multiple, tierMinQty1, Bag Quantity1
MPNCLND-300-12-134
qtyInStock0
SKUILSCLND30012134
tierPrice115.03
width, Tang Width (IN)1.189
width_AttribWidth
Height0.852 in | 21.6408 mm
Length5.587 in | 141.9098 mm
Width1.189 in | 30.2006 mm
Conductor TypeFlex, Stranded
Barrel MarkingInk
Barrel TypeLong
Connecting Angle180?
ConnectionCompression
Contains DE-OX?, Flared End, Narrow Tang, Sight Window, Slotted, Undrilled, Dual RatedNo
ILSCOs Die Catalog NumberILD-66
ILSCOs Die Index NumberI-66
Mounting Hole TypeThru
Number of Mounting Holes, Barrel Length (IN), Height BX (IN)2
Tang End ShapeSquare
Conductor Material, MaterialCopper
Connector FinishTin
Mounting Bolt/Stud Size1/2
Temperature Rating90?C
Conductor Range CU Stranded (Primary, run, main, line)300 kcmil
Expanded Conductor Range300 kcmil - 2/0 Str
Flex Conductor Range250 G,H
ColorSilver
Color CodeWhite
Voltage Rating35 kV
CSA File NumberLR-29601
CSA StandardC22.2 No. 65-03
NEBS RatingLevel 3
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
ROHS IndicatorIND
UL Control Number453G
UL / CULUS SpecificationUL 486A/B Listed, UL 467 Listed
UL File NumberE6207
Barrel Length (mm)50.8
Dimension G (IN)0.546
Dimension G (mm)13.8684
Height (mm)21.6408
Inside Diameter (IN)0.66
Inside Diameter (mm)16.764
Length (mm)141.9098
Mounting Hole Diameter (IN)0.562
Mounting Hole Diameter (mm)14.2748
Mounting Hole Spacing (IN)1.75
Mounting Hole Spacing (mm)44.45
Outside Diameter (IN)0.812
Outside Diameter (mm)20.6248
Strip Length (mm)52.3748
Tang Length (IN)3
Tang Length (mm)76.2
Tang Thickness (IN)0.152
Tang Thickness (mm)3.8608
Tang Width (mm), Width (mm)30.2006
Weight BX (LB)3.1871
Width BX (IN)6.1875
Carton Quantity DescriptionSTD PACK QTY 10
Direct BurialYes
NEMA CodeS-588-3
UPC Code78366964278

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comILSCLND30012134111 @ $15.03
