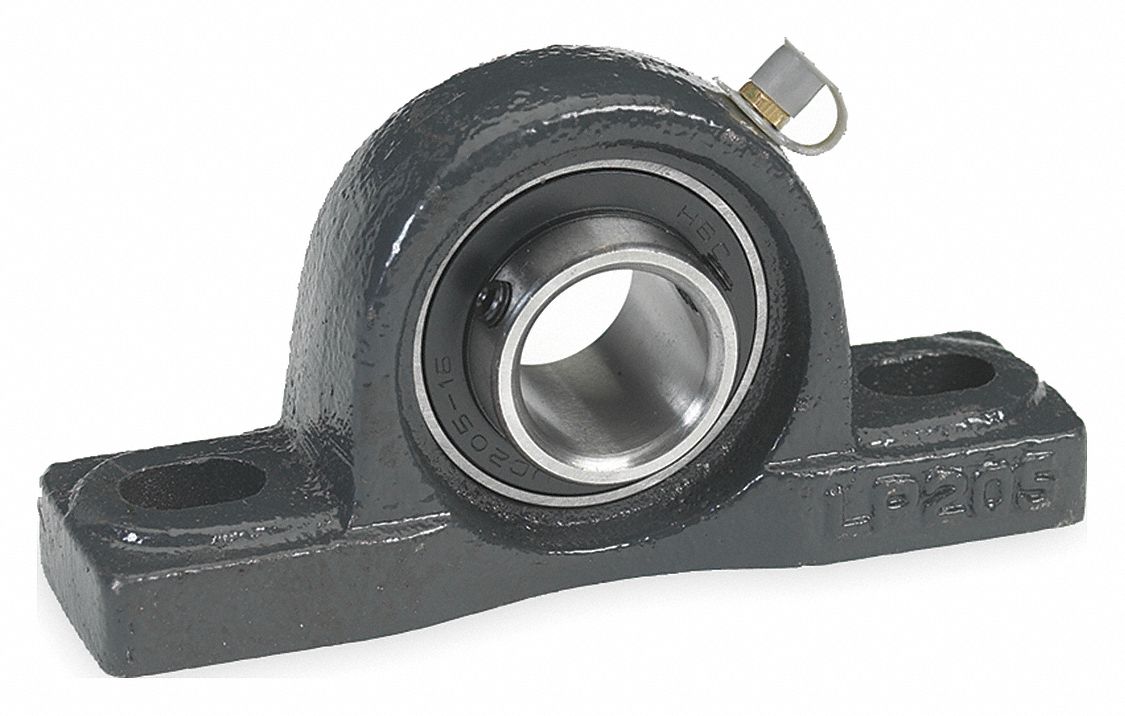

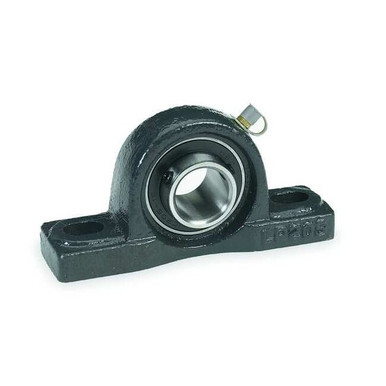

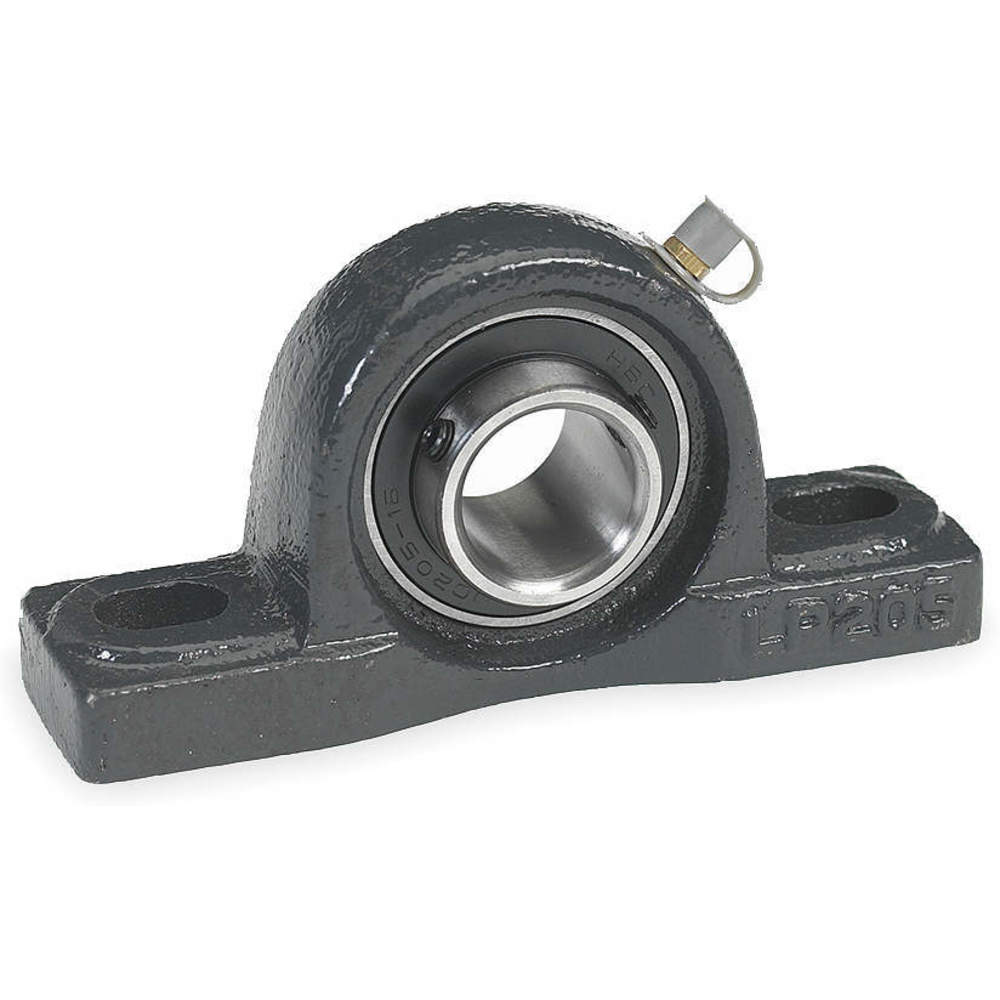

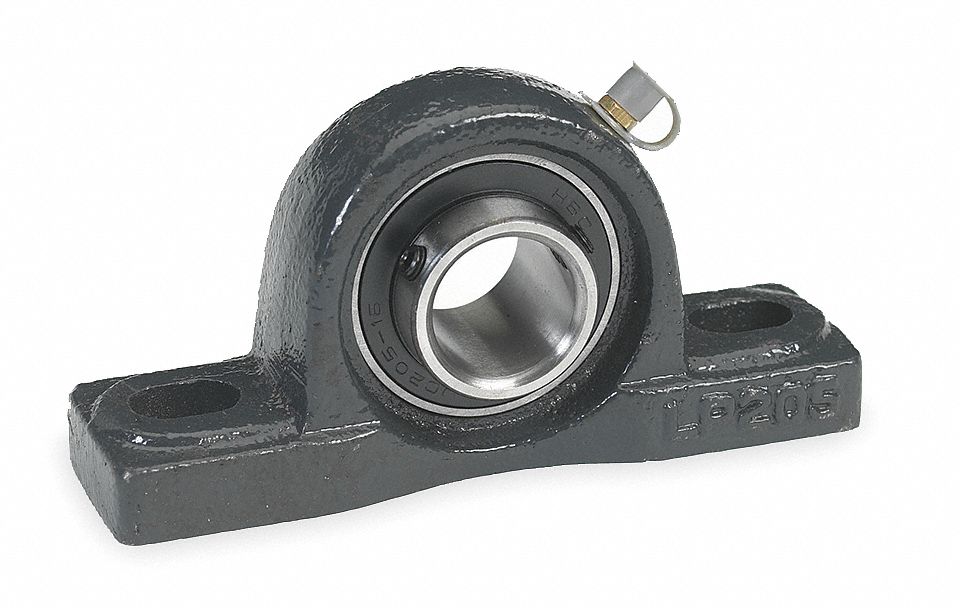

Pillow Block Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 1 7/16 in, Closure Double Sealed, Housing Material Cast Iron, Lubricant Material NGLI #2 Equivalent, Maximum Temperature 200 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Length 4 1/8 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 2.75 in, Overall Length 5.5 in, Overall Width 1.5 in

Pillow Block Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 1 7/16 in, Closure Double Sealed, Housing Material Cast Iron, Lubricant Material NGLI #2 Equivalent, Maximum Temperature 200 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Length 4 1/8 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 2.75 in, Overall Length 5.5 in, Overall Width 1.5 in

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDayton
CategoryId, CategoryIdL39348
CategoryIdL131
CategoryIdL217014
CategoryL1Power Transmission
CategoryL2Bearings, V-belts & Power Transmission Equipment
CategoryL3Pillow Block & Flange Bearings
CategoryL4Pillow Block Bearings
DimensionUnitinch
GTIN, UPC190735282441
GraingerSku, MPN3FCP4
UnitOfMeasureEA
Weight1.7
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginCN
height5.7
jsonUrlData924526ffbdad25e5923b
length3.4
moq, multiple, tierMinQty11
qtyInStock844
qtyInStockOverride-2
SKUG2440033
tierPrice136.09
urlhttps://www.zoro.com/dayton-pillow-block-bearing-ball-1-bore-3fcp4/i/G2440033/
width2.1
Bore Dia, Bore Diameter1 in
Overall Length, Dimension C5 1/2 in
Dimension D, Mount Hole Center-to-Center Length, Bolt Hole Center-to-Center4 1/8 in
Dimension G, Overall Width1 1/2 in
Dimension A, Center Height, Mounting Surface to Shaft Center1 7/16 in
Dimension E1/2 in
Bolt Size, Mounting Bolt Size3/8 in
Overall Height2 3/4 in
Dimension B2 25/32 in
Bearing Insert TypeBall
Shaft Locking TypeSet Screws
Bearing Housing Material TypeCast Iron
Bearing Insert Material52100 Chrome Steel
SeriesStandard Duty
Number of Bolts2
Bearing LubricationChevron SRI-2 or NLGI #2 Equivalent

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG2440033184411 @ $36.09
Grainger3FCP4158411 @ $35.80
AmazonTPB001QRJ1G0111 @ $50.14
Raptor SuppliesAC9ACH111 @ $109.59
AmazonUNKB001QRJ1G01-211 @ $50.14
sustainablesupply.comC16793611-211 @ $50.79
simsupply.comZO-G2440033179711 @ $52.94
grainger.caGGF3FCP4111 @ $43.42
