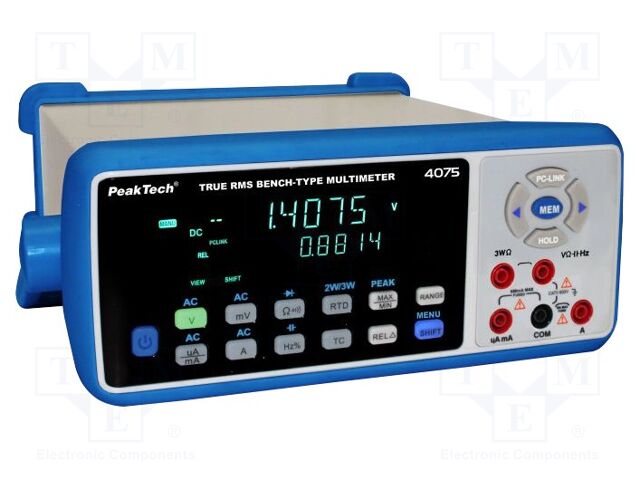

PEAKTECH P 4075 | Benchtop multimeter; LED; VDC: 60mV,600mV,6V,60V,600V,1kV
PEAKTECH P 4075 | Benchtop multimeter; LED; VDC: 60mV,600mV,6V,60V,600V,1k
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | PEAKTECH |
|---|---|
| CategoryL1 | Workplace Equipment |
| CategoryL2 | Measuring Instruments |
| CategoryL3 | Digital Multimeters |
| CategoryL4 | Benchtop digital multimeters |
| Extra Product Name | PEAKTECH P 4075 | Benchtop multimeter; LED; VDC: 60mV,600mV,6V,60V,600V,1kV |
| atoms, moq, multiple | 1 |
| jsonUrlData | 0cf0fabf68bb467db6b2f908d51f0c36. |
| jsonUrlData2 | b837ec8438f520eeecf8 |
| keywords | PEAKTECH, P 4075, PKT-P4075, Workplace Equipment, Measuring Instruments, Digital Multimeters, Benchtop digital multimeters |
| MPN | P 4075 |
| qtyInStock | 0 |
| SKU | PKT-P4075 |
| snippet | PEAKTECH P 4075 | Benchtop multimeter; LED; VDC: 60mV,600mV,6V,60V,600V,1k |
| Type of meter | benchtop multimeter |
| Kind of display used | LED |
| DC voltage measuring range | 60mV/ |
| DC voltage measuring accuracy | ?(0,03% + 6 digits) |
| AC voltage measuring range | 600mV/ |
| AC voltage measuring accuracy | ?(0.7% + 80 digits) |
| AC current measuring range, DC current measuring range | 600?A/ |
| DC current measuring accuracy | ?(0,15% + 10 digits) |
| AC current measuring accuracy | ?(0,8% + 80 digits) |
| True effective value measurement | True RMS |
| Resistance measuring range | 600?/ |
| Resistance measuring accuracy | ?(0.1% + 5 digits) |
| Capacitance measuring range | 6nF/ |
| Capacitance measuring accuracy | ?(2% + 150 digits) |
| Frequency measuring range | 4...60kHz/ |
| Frequency measuring accuracy | ?(0,01% + 10 digits) |
| Temperature measuring range | -200...1370?C |
| Temperature measurement accuracy | ?0,7?C |
| Test | 1mA @2.2V |
| Continuity test | acoustic indication, |
| Measurement | AC current, |
| Conform to the norm | CAT II 600V |
| Related items | 5790D, |
| Body dimensions | 240x100x350mm |
| Display parameters | 4,83 digit (63000) |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| PKT-P4075 | 1 | 1 |
