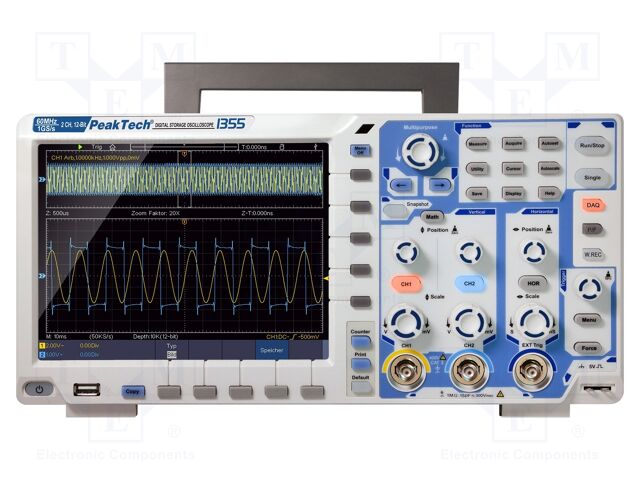

PEAKTECH P 1355 | Oscilloscope: digital; Ch: 2; 60MHz; 1Gsps; 40Mpts; LCD TFT 8"; 24W

PEAKTECH P 1355 | Oscilloscope: digital; Ch: 2; 60MHz; 1Gsps; 40Mpts; LCD TFT 8"; 24

PEAKTECH . P 1355

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerPEAKTECH
CategoryL1Workplace Equipment
CategoryL2Measuring Instruments
CategoryL3Oscilloscopes and Scopemeters
CategoryL4Digital Oscilloscopes
DimensionUnitm
Extra Product NamePEAKTECH P 1355 | Oscilloscope: digital; Ch: 2; 60MHz; 1Gsps; 40Mpts; LCD TFT 8"; 24W
atoms, moq, multiple1
jsonUrlDataa32fd40e182413520d98de9b3d5fe40a.
jsonUrlData20a13eb36990f0404802d
keywordsPEAKTECH, P 1355, PKT-P1355
length40.0
length_AttribMemory record length
MPNP 1355
qtyInStock0
SKUPKT-P1355
snippetPEAKTECH P 1355 | Oscilloscope: digital; Ch: 2; 60MHz; 1Gsps; 40Mpts; LCD TFT 8"; 24
Type of oscilloscopedigital
Number of channels2
Band60MHz
Sampling1Gsps
Memory record length40Mpts
Kind of display usedLCD TFT 8"
Trigger modesautomatic,
Triggerfalling-edge,
Trigger sourceCH1,
Time base2n...1ks/div
Max input voltage400V
Vertical resolution12bit
Input couplingAC, DC, GND
Trigger couplingAC,
Horizontal accuracy?3%
Rise time?5.8ns
Input impedance1M?/15pF
Input sensitivity1mV/div...10V/div
Measuring instrument featuresmathematical functions: addition, subtraction, division, multiplication and FFT
Plug variantEU
Power consumption24W
Operating temperature0...40?C
Body dimensions340x180x90mm
Related itemsPKT-AKKU6
Softwareincluded
Display resolution800x600
Touchpadyes

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEPKT-P135511
