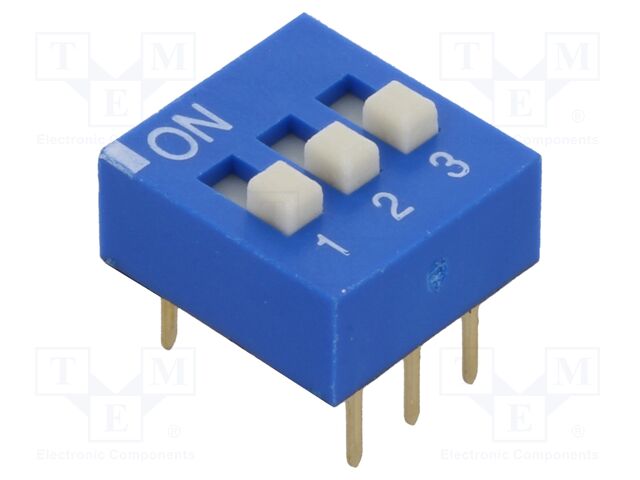

ECE EDG103S | Switch: DIP-SWITCH; Poles number: 3; ON-OFF; 0.025A/24VDC; Pos: 2
ECE EDG103S | Switch: DIP-SWITCH; Poles number: 3; ON-OFF; 0.025A/24VDC; Pos:
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | ECE |
|---|---|
| CategoryL1 | Switches and Indicators |
| CategoryL2 | Dip-Switches |
| DimensionUnit | mm |
| Extra Product Name | ECE EDG103S | Switch: DIP-SWITCH; Poles number: 3; ON-OFF; 0.025A/24VDC; Pos: 2 |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | d605681cee290dbda69ced688f1b3de8. |
| jsonUrlData2 | 6c7c87efbc2a04fc467f |
| keywords | ECE, EDG103S, Switches and Indicators, Dip-Switches |
| length | 9.2 |
| length_Attrib | Overall length |
| MPN, SKU | EDG103S |
| qtyInStock | 0 |
| snippet | ECE EDG103S | Switch: DIP-SWITCH; Poles number: 3; ON-OFF; 0.025A/24VDC; Pos: |
| tierMinQty2 | 5 |
| tierMinQty3 | 20 |
| tierMinQty4 | 116 |
| tierMinQty5 | 522 |
| tierPrice1 | 1.2799 |
| tierPrice2 | 1.0897 |
| tierPrice3 | 0.8968 |
| tierPrice4 | 0.7065 |
| tierPrice5 | 0.5978 |
| Type of switch | DIP-SWITCH |
| Poles number | 3 |
| Switching method | ON-OFF |
| DC contacts rating @R | 0.025A / 24V DC |
| Number of positions, Stable positions number | 2 |
| Operating temperature | -25...70?C |
| Mounting | THT |
| Min insulation resistance | 1G? |
| Body dimensions | 9.2x9.7x4.2mm |
| Terminal pitch | 2.54mm |
| Manufacturer series | EDG |
| Max contact resistance: | 50m? |
| Row pitch | 7.62mm |
| Contact plating | gold-plated |
| Switches features | raised actuator |
| Overall length | 9.2mm |
| Mechanical durability | 2000 cycles |
| Flammability rating | UL94V-0 |
| Test voltage | 0.5kV |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| EDG103S | 1 | 1 | 1 @ $1.28, 5 @ $1.09, 20 @ $0.90, 116 @ $0.71, 522 @ $0.60 |
