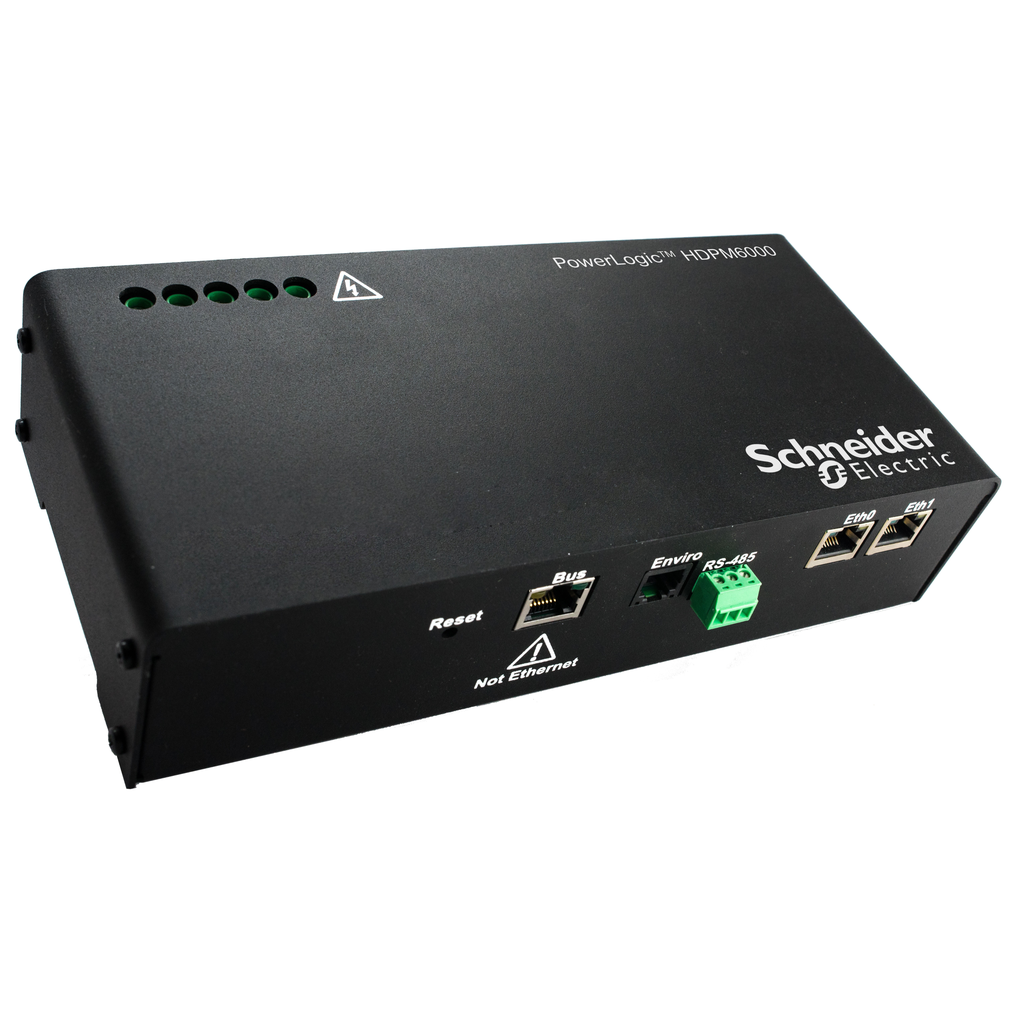

PowerLogic HDPM6000, Base unit calibrated for 60Hz, 480v | Mayer Electric

SQUARE D . SQDMETSEHDPM6S480VC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NamePowerLogic HDPM6000, Base unit calibrated for 60Hz, 480v | Mayer Electric
UPC, SKUSQDMETSEHDPM6S480VC
depth, length104.65
height51.04
height_AttribHeight
jsonUrlData/Product/SQUARE-D-PowerLogic-HDPM6000-Base-unit-calibrated-for-60Hz-480v-SQDMETSEHDPM6S480VC
length_AttribDepth
moq, multiple, tierMinQty11
qtyInStock0
tierPrice10.00
width221.74
width_AttribWidth
Network Frequency60 Hz
Energy Managementasset management || measurement || cost management
[Us] Rated Supply Voltage24 V DC
Power Quality Analysiswaveform capture || total harmonic distortion
Variantbasic version
Product Or Component Typebase unit
Product NamePowerLogic HDPM6000
Device Short NameHDPM6000
RangePowerLogic
Communication Port Support2 RJ45 Ethernet || RS485 screw block terminal || I/O bus RJ45
Measurement Accuracy+/- 1 %
Measurement Voltage120-120 V AC 60 Hz || 208-208 V AC 60 Hz || 380-380 V AC 60 Hz || 400-400 V AC 60 Hz || 415-415 V AC 60 Hz || 480-480 V AC 60 Hz
Sampling Rate128 samples/cycle
Memory Capacity8 GB
Communication Port ProtocolTCP/IP || Modbus || SNMP || BACnet
Poles Description2P + E || 3P + E || 3P + N + E
Analogue Input Typeexternal CT || Rogowski coil
Web Servicesweb page || controller configuration || viewing of captured waveform || real time viewing of data
Communication Of Datapower quality || reading of measurements || percentage of load
Measurement Categorycategory III
Noise Level0-65 dB
China Rohs RegulationX
Rohs Exemption Information, Mercury FreeYes
Eu Rohs DirectiveCompliant
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Height51.04 mm
Ambient Air Temperature For Operation-20-60 ?C
Mounting Modeclipped || by screws
Ambient Air Temperature For Storage-40-85 ?C
Relative Humidity5-90 %
StandardsIEC 62443
Mounting Support35 mm DIN rail || enclosure
Pollution Degree2
Width221.74 mm
Depth104.65 mm
Type Of Installationindoor
