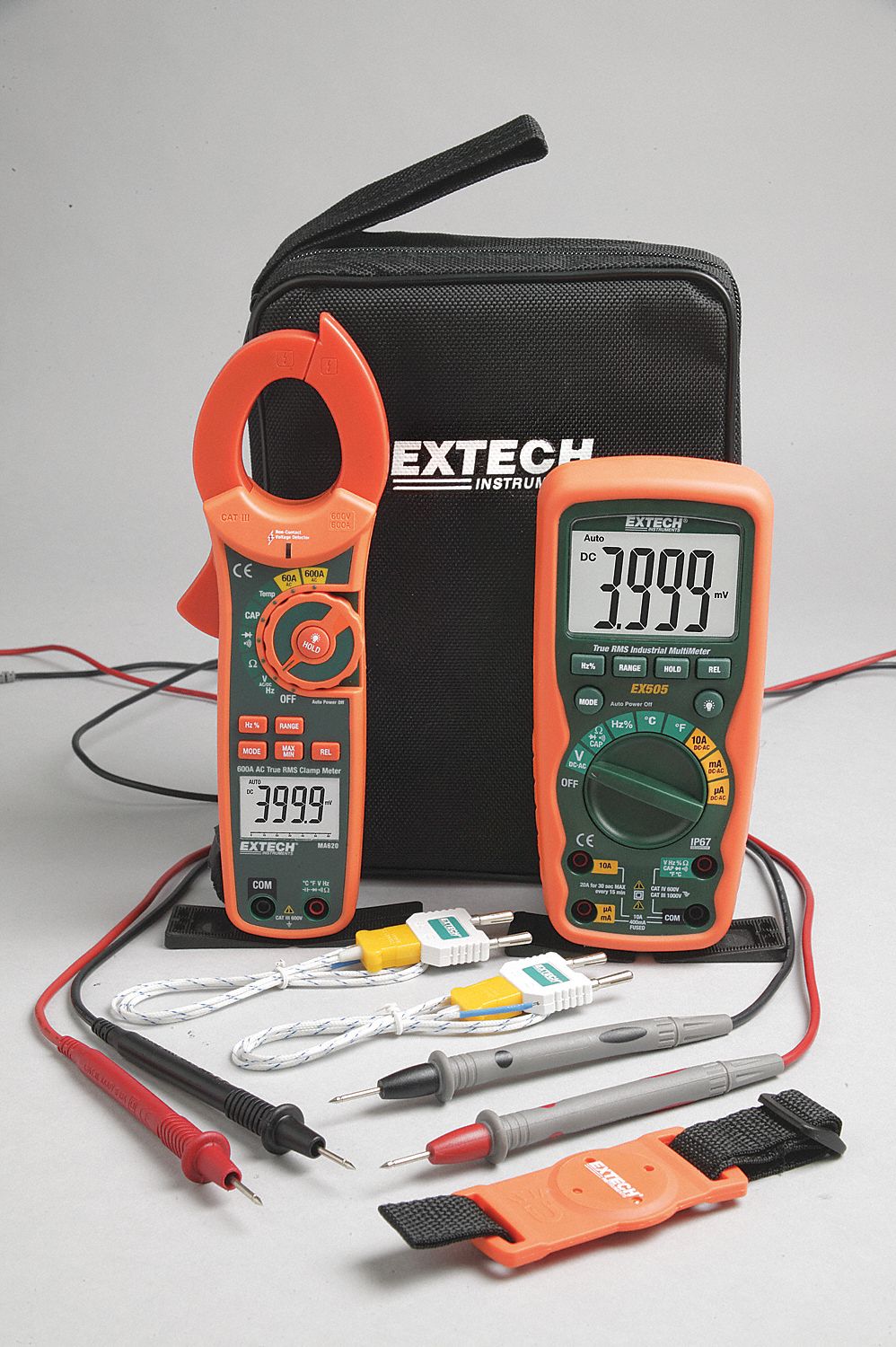

METER CLAMP 400A TRMS AC/DC+IR NIST

EXTECH . EX623NIST

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerEXTECH
DimensionUnitinch
Extra Product NameMETER CLAMP 400A TRMS AC/DC+IR NIST
UNSPSC41113648
Weight1.7
WeightUnitlbs
height1.9
height_AttribOverall Height
moq, multiple, tierMinQty11
MPNEX623NIST
originalCurrency{'currency': 'CAD', 'tierPrice1': '541.42'}
qtyInStock0
SKUEXTEX623NIST
tierPrice1392.9658845199999
width3.1
width_AttribOverall Width
ItemDigital Clamp Meter
Safety RatingCAT III 600 V
Maximum AC Current Measurement, Maximum DC Current Measurement400 A
Current Leakage Testing, Intrinsically Safe, Waterproof, Thermal Imaging, Bluetooth Compatible, Dustproof, Removable ScreenNo
Jaw StyleClamp On
Basic DC Voltage Accuracy+/-0.10%
Basic DC Current Accuracy, Basic AC Current Accuracy+/-1.50%
Frequency Measurement Accuracy+/-0.30%
Display TypeBacklit LCD
AC Current Measurement Resolution10 mA
Auto Power Off, Batteries Included, Diode Test, Inrush Current Measurable, Non-Contact Voltage Detector, Audible Continuity, Data Logging, Data Hold, Auto Ranging, Battery Access, Peak HoldYes
Battery Size9V
Capacitance Measurement Resolution0.01 nF
DC Voltage Measurement Resolution0.01 mV
Frequency Measurement Resolution0.001 Hz
Manufacturers Warranty Length2 yr
Maximum Conductor Size500MCM
Maximum Operating Temperature104 Degrees F
Maximum Storage Temperature140 Degrees F
Minimum AC Voltage Measurement400 V
Minimum DC Current Measurement, Minimum AC Current Measurement40 A
Minimum Frequency Measurement40 Hz
Minimum Resistance Measurement400 ohm
Overall Width3.1 in
Resistance Measurement Resolution0.01 ohm
Thermometer TypeInfrared, Type K Thermocouple
AC Response CalculationTRMS
Maximum AC Voltage Measurement, Maximum DC Voltage Measurement600 V
Parameters MeasuredAC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Resistance, Temperature (IR), Temperature (K)
Jaw Opening1.25 in
Calibration Certificate IncludedYes - NIST with Data
Basic AC Voltage Accuracy+/-2.00%
Capacitance Measurement Accuracy+/-5.00%
Resistance Measurement Accuracy+/-2.50%
AC Voltage Measurement Resolution0.1 mV
Calibration Frequency60 Hz
DC Current Measurement Resolution0.01 uA
Digital/AnalogDigital
Frequency Counter, Maximum Frequency Measurement40 MHz
Includes(2) General Purpose Type K Bead Wire Probes, Case, Test Leads
Instrument Counts40,000
Maximum Capacitance Measurement40 mF
Maximum Resistance Measurement40 megaohm
Minimum Capacitance Measurement400 nF
Minimum DC Voltage Measurement400 mV
Minimum Operating Temperature41 Degrees F
Minimum Storage Temperature-4 Degrees F
Overall Height1.9 in
StandardsCE

Distributor offers

SellerSKUMOQIn stockMultiplePrices
grainger.caEXTEX623NIST111 @ $392.97
