Where can I buy CSM10131?

CSM10131 is available from Zoro, Grainger, NRI Industrial, Raptor Supplies, grainger.ca. See pricing comparison above.

What is the price of CSM10131?

Pricing ranges from $126.01 to $233.81 depending on quantity and distributor.

Is CSM10131 in stock?

Yes, CSM10131 is currently in stock at multiple distributors with immediate availability.

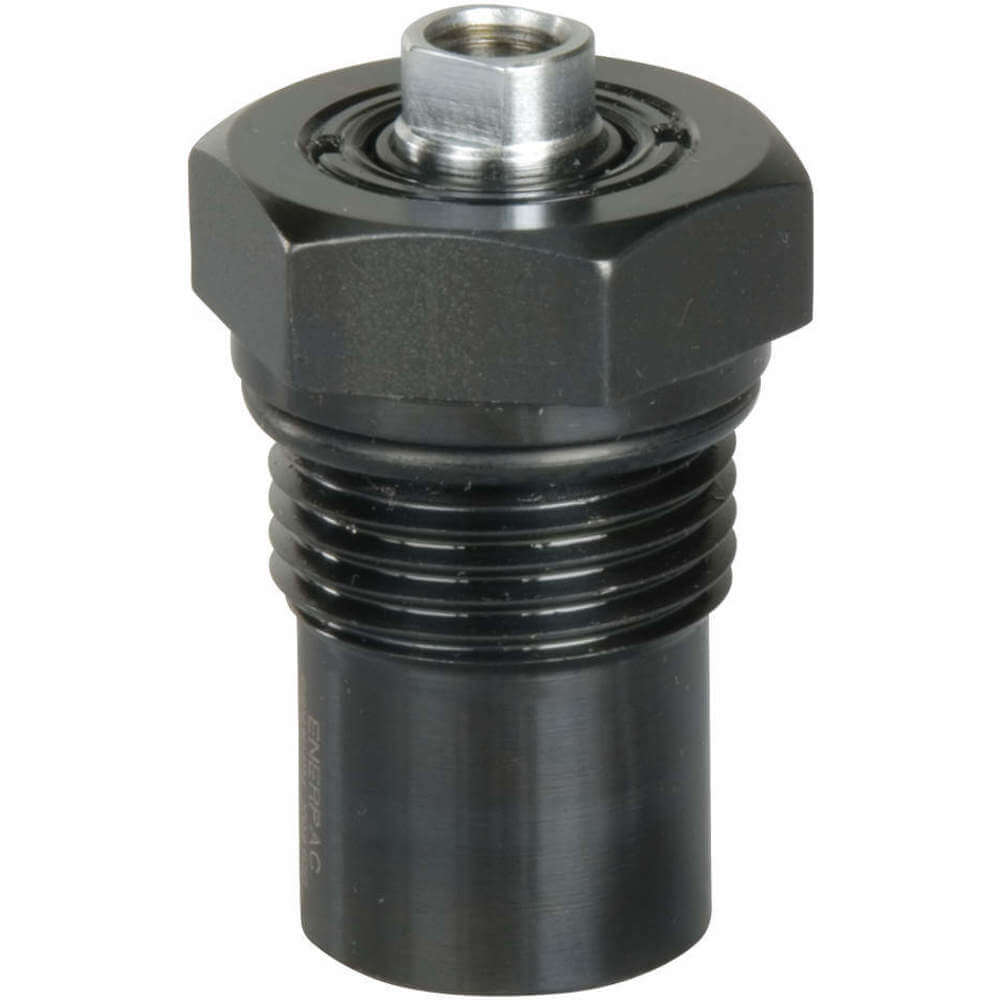

Threaded Body Hydraulic Cylinder, Threaded Body, Manifold Mount, Body Material Steel, Single Acting, Push Capacity @ 5000 psi 2,590 lb, Stroke Length 1/2 in, Effective Push Area 0.50 sq in, Oil Capacity Push 0.26 cu in, Pressure Range 580 to 5000 psi, Extended Height 2.62 in, Retracted Height 2.14 in, Body Thread 1-1/16 In.-12, Plunger Thread Size 5/16 In.-24, Min. Hole Depth 1.57 in, Seal Material Polyurethane/Buna N

Name: Threaded Body Hydraulic Cylinder, Threaded Body, Manifold Mount, Body Material Steel, Single Acting, Push Capacity @ 5000 psi 2,590 lb, Stroke Length 1/2 in, Effective Push Area 0.50 sq in, Oil Capacity Push 0.26 cu in, Pressure Range 580 to 5000 psi, Extended Height 2.62 in, Retracted Height 2.14 in, Body Thread 1-1/16 In.-12, Plunger Thread Size 5/16 In.-24, Min. Hole Depth 1.57 in, Seal Material Polyurethane/Buna N
Brand: Enerpac
Price: 184.00 USD
Availability: InStock

Enerpac . CSM10131

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer	Enerpac
CategoryId, CategoryIdL3	9419
CategoryIdL1	32
CategoryIdL2	6638
CategoryL1	Power Transmission
CategoryL2	Hydraulic Cylinders & Equipment
CategoryL3	Hydraulic Cylinders
CategoryL4	Threaded Body Cylinders
DimensionUnit	inch
GTIN, UPC	662005133352
GraingerSku	5UWT3
UnitOfMeasure	EA
Weight	0.72
WeightUnit	lbs
cali_prop65_orglabel, cali_prop65_whtlabel	False
countryOfOrigin	US
height	3.7
jsonUrlData	924526ffbdad25e5923b
length	4.5
moq, multiple, qtyInStock, qtyInStockOverride, tierMinQty1	1
MPN	CSM10131
qtySource	qtyInStockOverride
SKU	G2020164
tierPrice1	184.00
url	https://www.zoro.com/enerpac-csm10131-2590-lbs-capacity-051-in-stroke-manifold-hydraulic-cylinder-csm10131/i/G2020164/
width	4.6
Stroke Length	1/2 in
Retracted Height	2.14 in
Extended Height	2.62 in
Min Hole Depth	1.57 in
Plunger Thread Size	5/16"-24
Promotion Restriction	Not eligible for promotion
Single Acting/Double Acting, Function	Single Acting
Push Capacity @ 5000 psi	2,590 lb
Body Thread	1-1/16"-12
Pressure Range	580 to 5000 psi
Capacity @ 5000 PSI	2590 lb.
Oil Capacity Push	0.26 cu in
Plunger Thread	5/16"-24 UN
Type, Cylinder Type	Threaded Body
Material of Construction, Body Material	Steel
Seal Material	Polyurethane/Buna N
Stroke	0.51"
Item	Threaded Body Hydraulic Cylinder
Effective Area Push	0.50 sq. in.
Effective Push Area	0.50 sq in
Mounting Style	Manifold Mount

Distributor offers

Seller	SKU	MOQ	In stock	Multiple	Prices
Zoro	G2020164	1	1	1	1 @ $184.00
Grainger	5UWT3	1		1
NRI Industrial	D701214	1		1	1 @ $146.37
Raptor Supplies	AE6TCL	1		1	1 @ $233.81
grainger.ca	WWG5UWT3	1	-2	1	1 @ $212.12
sustainablesupply.com	C2780258	1	-2	1	1 @ $186.10
NRI Industrial	D701339	1		1	1 @ $126.01
National Supply Network	78812153	1	-2	1	1 @ $208.98
