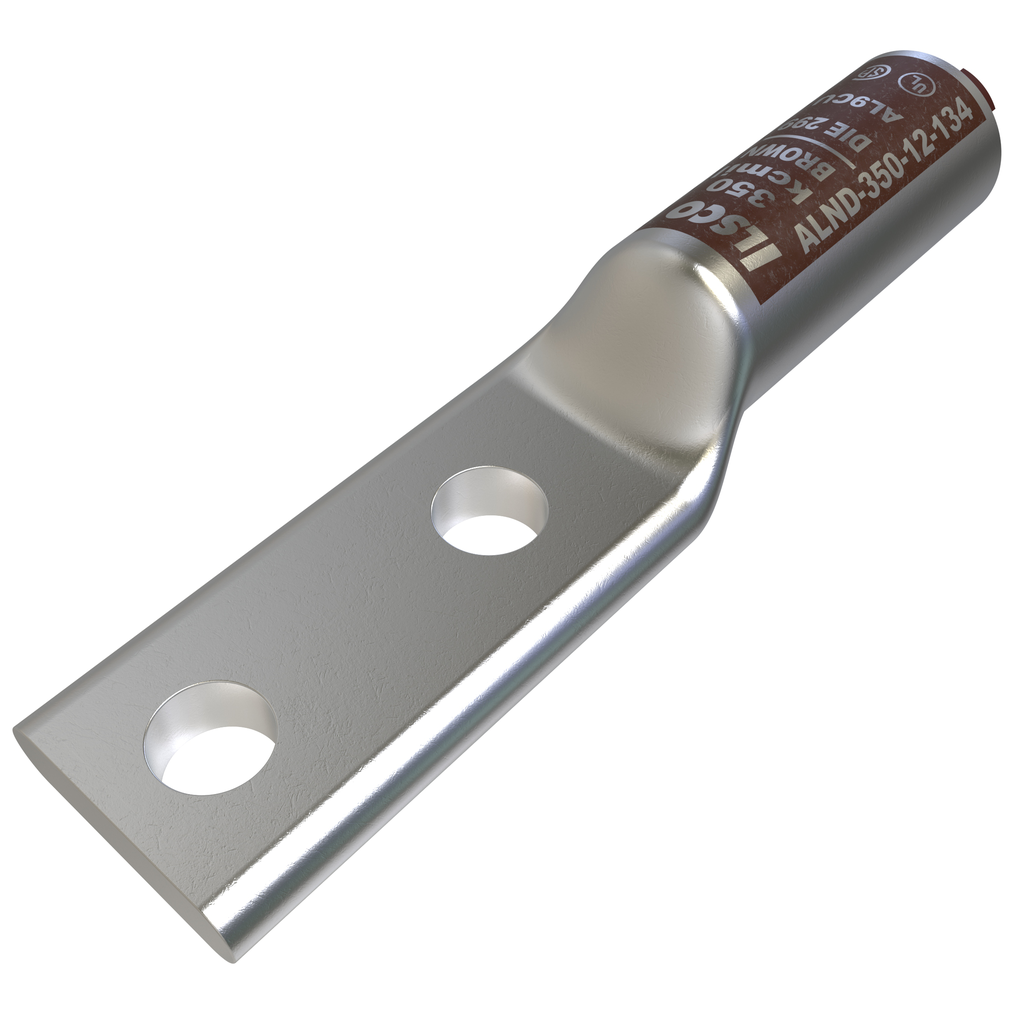

Surecrimp Aluminum Compression Lug, Conductor Size 350, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA | Mayer Electric

Mayer Electric Supply . ALND-350-12-134

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameSurecrimp Aluminum Compression Lug, Conductor Size 350, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA | Mayer Electric
UPC783669687552
Weight0.28
WeightUnitlbs
Weight_AttribWeight
height1.145
height_AttribHeight
jsonUrlData/Product/ILSCO-Surecrimp-Aluminum-Compression-Lug-Conductor-Size-350-2-Holes-1-2in-Bolt-Size-1-3-4in-Hole-Spacing-Long-Barrel-No-Sight-Window-Tin-Plated-UL-CSA-783669687552
jsonUrlData2621d34a8-6e1d-4454-b8b5-abb200c8ec03
length6.065
length_AttribLength
moq, multiple, tierMinQty1, Bag Quantity1
MPNALND-350-12-134
qtyInStock0
SKUILSALND35012134
tierPrice148.13
width, Tang Width (IN)1.516
width_AttribWidth
Height1.145 in | 29.083 mm
Length6.065 in | 154.051 mm
Width1.516 in | 38.5064 mm
Conductor TypeStranded
Barrel MarkingHard
Barrel TypeLong
Connecting Angle180?
ConnectionCompression
Contains DE-OX?, Dual RatedYes
Flared End, Narrow Tang, Sight Window, Slotted, Undrilled, Direct BurialNo
ILSCOs Die Catalog NumberILD-299
ILSCOs Die Index Number299
Mounting Hole TypeThru
Number of Mounting Holes, Height BX (IN)2
Tang End ShapeSquare
Conductor MaterialAluminum, Copper
Connector FinishTin
MaterialAluminum
Mounting Bolt/Stud Size1/2
Conductor Range AL Stranded (Primary, run, main, line), Conductor Range CU Stranded (Primary, run, main, line)350 kcmil
Expanded Conductor Range350 kcmil - 3/0 Str
Temperature Rating90?C
ColorSilver
Color CodeBrown
Voltage Rating35 kV
Barrel Length (IN)2.353
Barrel Length (mm)59.7662
Dimension G (IN)0.546
Dimension G (mm)13.8684
Height (mm)29.083
Inside Diameter (IN)0.72
Inside Diameter (mm)18.288
Length (mm)154.051
Mounting Hole Diameter (IN)0.562
Mounting Hole Diameter (mm)14.2748
Mounting Hole Spacing (IN)1.75
Mounting Hole Spacing (mm)44.45
Outside Diameter (IN)1.105
Outside Diameter (mm)28.067
Strip Length (mm)61.3537
Tang Length (IN)3
Tang Length (mm)76.2
Tang Thickness (IN)0.385
Tang Thickness (mm)9.779
Tang Width (mm), Width (mm)38.5064
Weight BX (LB)1.547
Width BX (IN)6.188
CSA File NumberLR-29601
CSA StandardC22.2 No. 65-03
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
ROHS IndicatorIND
UL Control Number453G
UL / CULUS SpecificationUL 486A/B Listed
UL File NumberE6207
Carton Quantity DescriptionSTD PACK QTY 5
NEMA CodeS-588-3
UPC Code78366968755

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comILSALND35012134111 @ $48.13
