UMP1NTR Rohm Semiconductor | Discrete Semiconductor Products | DigiKey

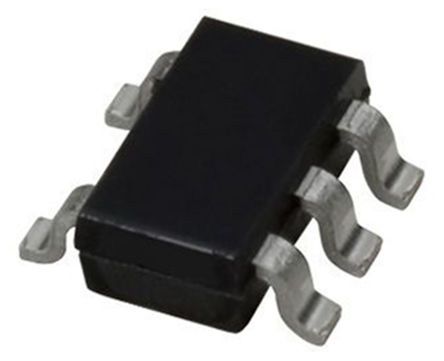

Diode Array 2 Pair Common Anode Standard 80 V 25mA Surface Mount 5-TSSOP, SC-70-5, SOT-353
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Rohm Semiconductor |
|---|---|
| Extra Product Name | UMP1NTR Rohm Semiconductor | Discrete Semiconductor Products | DigiKey |
| atoms, tierMinQty1 | 1 |
| extraShipping | 0 |
| moq, multiple, tierMinQty5 | 1,000 |
| MPN | UMP1NTR |
| qtyInStock | 3274 |
| SKU | 659289 |
| tierMinQty2 | 10 |
| tierMinQty3 | 100 |
| tierMinQty4 | 500 |
| tierPrice1 | 0.44000 |
| tierPrice2 | 0.35400 |
| tierPrice3 | 0.24080 |
| tierPrice4 | 0.18062 |
| tierPrice5 | 0.13547 |
| Category | Discrete Semiconductor Products |
| Series | - |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Diode Configuration | 2 Pair Common Anode |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 80 V |
| Current - Average Rectified (Io) (per Diode) | 25mA |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 5 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 70 V |
| Operating Temperature - Junction | 150?C (Max) |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | UMD5 |
| Base Product Number | UMP1 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 659289 | 1000 | 3274 | 1000 | 1 @ $0.44, 10 @ $0.35, 100 @ $0.24, 500 @ $0.18, 1000 @ $0.14 |
 Newark | 78AC6648 | 5 | 5 | 1 @ $0.50, 10 @ $0.39, 25 @ $0.34, 50 @ $0.28, 100 @ $0.23, 250 @ $0.22, 500 @ $0.21, 1000 @ $0.15 | |
| Win Source | UMP1NTR | 1 | 4845 | 1 | |
| 826-7977 | 50 | 50 | 50 @ $0.30, 250 @ $0.27, 750 @ $0.26, 1500 @ $0.26, 3000 @ $0.25 | ||
| Digi-Key | 3769443 | 1 | 3000 | 1 | 1 @ $0.44, 10 @ $0.35, 100 @ $0.24, 500 @ $0.18, 1000 @ $0.14, 3000 @ $0.12, 6000 @ $0.12, 15000 @ $0.11, 30000 @ $0.11 |
| 3769951 | 1 | 3374 | 1 | 1 @ $0.41, 10 @ $0.33, 25 @ $0.31, 100 @ $0.19, 500 @ $0.18, 1000 @ $0.12 | |
| TME | UMP1NTR | 10 | 11800 | 10 | 10 @ $0.10, 50 @ $0.09, 250 @ $0.08, 1000 @ $0.07, 3000 @ $0.07 |
