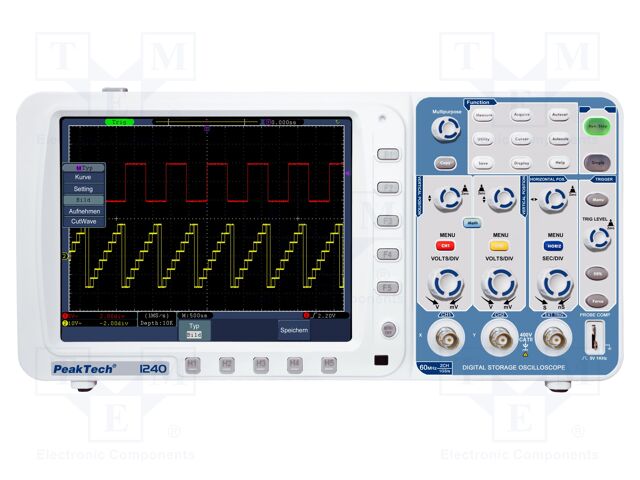

PEAKTECH P 1240 | Oscilloscope: digital; Ch: 2; 60MHz; 250Msps; 10Mpts; LCD TFT 8"
PEAKTECH P 1240 | Oscilloscope: digital; Ch: 2; 60MHz; 250Msps; 10Mpts; LCD TFT 8
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | PEAKTECH |
|---|---|
| CategoryL1 | Workplace Equipment |
| CategoryL2 | Measuring Instruments |
| CategoryL3 | Oscilloscopes and Scopemeters |
| CategoryL4 | Digital Oscilloscopes |
| DimensionUnit | m |
| Extra Product Name | PEAKTECH P 1240 | Oscilloscope: digital; Ch: 2; 60MHz; 250Msps; 10Mpts; LCD TFT 8" |
| atoms, moq, multiple | 1 |
| jsonUrlData | 82f18dd175d048071b75432c3f8708e8. |
| jsonUrlData2 | 50c40a6bf6de2724e2dc |
| keywords | PEAKTECH, P 1240, PKT-P1240 |
| length | 10.0 |
| length_Attrib | Memory record length |
| MPN | P 1240 |
| qtyInStock | 0 |
| SKU | PKT-P1240 |
| snippet | PEAKTECH P 1240 | Oscilloscope: digital; Ch: 2; 60MHz; 250Msps; 10Mpts; LCD TFT 8 |
| Type of oscilloscope | digital |
| Number of channels | 2 |
| Band | 60MHz |
| Sampling | 250Msps |
| Memory record length | 10Mpts |
| Kind of display used | LCD TFT 8" |
| Trigger modes | automatic, |
| Trigger | falling-edge, |
| Trigger source | CH1, |
| Time base | 5n...100s/div |
| Max input voltage | 400V |
| Vertical resolution | 8bit |
| Input coupling | AC, DC, GND |
| Trigger coupling | AC, |
| Horizontal accuracy | ?3% |
| Rise time | ?5.8ns |
| Input impedance | 1M?/10pF |
| Input sensitivity | 2mV/div...10V/div |
| Plug variant | EU |
| Power consumption | 18W |
| Operating temperature | 0...40?C |
| Body dimensions | 348x170x78mm |
| Related items | PKT-AKKU3 |
| Software | included |
| Display resolution | 800x600 |
