3M

http://cdn.shopify.com/s/files/1/0332/9992/2988/products/4X839_AS01_a7d0ab16-0d53-46e4-b245-0a11ad418ed7_1024x.jpg

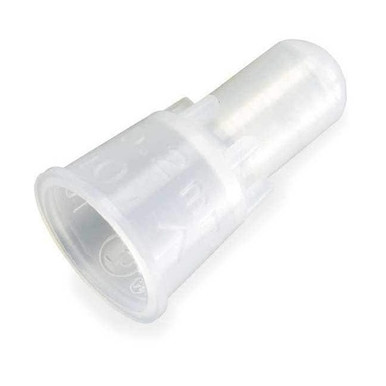

3M . S-11-A(BOXED)

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product Name3M
DimensionUnitinch
GraingerSku4X294
UPCNone
UnitOfMeasurePK
Weight0.3
WeightUnitlbs
atoms100
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginTW
height2.9
jsonUrlData924526ffbdad25e5923b
length2
moq, multiple, tierMinQty11
MPNS-11-A(BOXED)
qtyInStock778
qtyInStockOverride-2
SKUG1611285
tierPrice138.64
urlhttps://www.zoro.com/3m-scotchlok-closed-end-crimp-conn-nylon-0760-pk100-s-11-aboxed/i/G1611285/
width1.7
Colornatural
Max Voltage, Maximum Voltage600 V
Min Wire Combination, Minimum Wire Combination(2) 22 AWG
Max Wire Combination(3) 20 AWG
Length, Length (Straight Wireway)0.76 in
Max Temp, Maximum Operating Temperature221 Degrees F
ItemClosed-End Crimp Connector
StandardsCSA Certified, UL Listed
Insulation Type, Insulation MaterialNylon
Wire Size Range22 AWG - 16 AWG
Minimum Wire Size22 AWG
Overall Length0.83 in
Special FeaturesBuilt-in Wire Stop for Correct Positioning, Smooth, Flared End Provides Quick Wire Insertion
Minimum Operating Temperature-40 Degrees F
For Wire Size16 AWG, 18 AWG, 22 AWG
For Wire TypeCopper Wire
RoHS CompliantYes
Maximum Wire Size, Maximum Wire Combination16 AWG
Contact MaterialCopper
Termination StyleCrimp
Compatible Installation Tool Model NumberTH-440, TH-450
Strip Length1/2 in
Seam StyleButted
Country of Origin (subject to change)Taiwan, Province of China

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG1611285177811 @ $38.64
RadwellS-11-A(BOXED)100100
Newark51T1793100100100 @ $0.73, 250 @ $0.66, 500 @ $0.59, 1000 @ $0.55
Monarch Electric87088111 @ $0.23
sustainablesupply.comC12023831-211 @ $19.94
simsupply.comZO-G161128515711 @ $54.36
Graybar25323755111 @ $49.89
