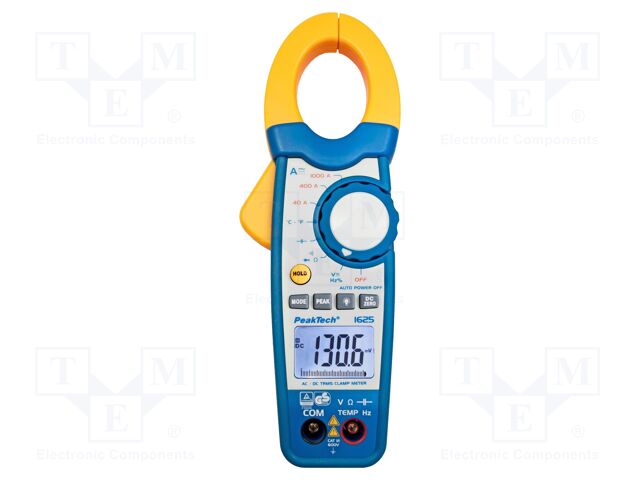

PEAKTECH P 1625 | AC/DC digital clamp meter; ?cable: 35mm; Sampling: 2x/s; True RMS
PEAKTECH P 1625 | AC/DC digital clamp meter; ?cable: 35mm; Sampling: 2x/s; True RM
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | PEAKTECH |
|---|---|
| CategoryL1 | Workplace Equipment |
| CategoryL2 | Measuring Instruments |
| CategoryL3 | Meters and Clamp Probes |
| CategoryL4 | Meters and AC\/DC Clamp Probes |
| DimensionUnit | mm |
| Extra Product Name | PEAKTECH P 1625 | AC/DC digital clamp meter; ?cable: 35mm; Sampling: 2x/s; True RMS |
| Weight | 300 |
| WeightUnit | g |
| Weight_Attrib | Weight |
| atoms, moq, multiple, qtyInStock, tierMinQty1 | 1 |
| diameter, length, width | 35.0 |
| jsonUrlData | 0c4b46aca17df6763b8c5851a829faa5.5 |
| jsonUrlData2 | f6b61f210fa64e4dee6a |
| keywords | PEAKTECH, P 1625, PKT-P1625, Workplace Equipment, Measuring Instruments, Meters and Clamp Probes, Meters and AC/DC Clamp Probes |
| length_Attrib, width_Attrib | Max. diameter of measured cable |
| MPN | P 1625 |
| SKU | PKT-P1625 |
| snippet | PEAKTECH P 1625 | AC/DC digital clamp meter; ?cable: 35mm; Sampling: 2x/s; True RM |
| tierMinQty2 | 3 |
| tierPrice1 | 123.83 |
| tierPrice2 | 116.4 |
| Type of meter | AC/DC digital clamp meter |
| Max diameter of measured cable | 35mm |
| Kind of display used | bargraph, |
| Sampling | 2x/s |
| DC current measuring range, AC current measuring range | 40A/ |
| DC current measuring accuracy | ?(2.8% + 8 digits) |
| AC current measuring accuracy | ?(2,8% + 8 digits) |
| DC voltage measuring range, AC voltage measuring range | 400mV/ |
| DC voltage measuring accuracy | ?(0,8% + 2 digits) |
| AC voltage measuring accuracy | ?(1.5% + 8 digits) |
| True effective value measurement | True RMS |
| Resistance measuring range | 400?/ |
| Resistance measuring accuracy, Capacitance measuring accuracy | ?(1% + 4 digits) |
| Capacitance measuring range | 4nF/ |
| Frequency measuring range | 4kHz |
| Frequency measuring accuracy | ?(1,5% + 2 digits) |
| Temperature measuring range | -40...1000?C |
| Temperature measurement accuracy | ?(2,5% + 3 digits) |
| Test | 0.3mA @1.5V |
| Dimensions | 80x230x50mm |
| Measurement | AC current, |
| Conform to the norm | EN61010 600V CAT III |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| PKT-P1625 | 1 | 1 | 1 | 1 @ $123.83, 3 @ $116.40 |
