Grundfos 96418594 CR 32-5-2 A-G-A-E-HQQE 20HP 60 Pump End Only - MROSupply.com

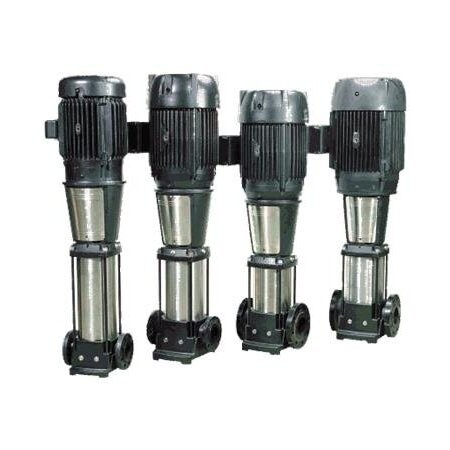

The 96418594 is produced by Grundfos and is described as a Grundfos 96418594 CR 32-5-2 A-G-A-E-HQQE 20HP 60 Pump End Only

Grundfos . 96418594

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Publisher, StudioGrundfos
CategoryL1Pumps
CategoryL2Centrifugal Pumps
CategoryL3Chemical Resistant
DimensionUnitmm
Extra Product NameGrundfos 96418594 CR 32-5-2 A-G-A-E-HQQE 20HP 60 Pump End Only - MROSupply.com
diameter, length, width118.4
length_Attrib, width_AttribActual impeller diameter
moq, multiple, tierMinQty11
MPN, Product no, Keyword, PartNumber, Part_number96418594
qtyInStock0
SKU5023852
snippetThe 96418594 is produced by Grundfos and is described as a Grundfos 96418594 CR 32-5-2 A-G-A-E-HQQE 20HP 60 Pump End Only
tierPrice17954.56
Temperature range (F)-22 - 248
Density (lb/ftBi)62.29
Max pressure (psi)232
Pipe connection, Size of outlet connection, Size of inlet connection2 1/2 in
Stages, Impellers5
Flange size, Flange size for motor254TC
Rate flow (gpm)159
Density998.2 kg/m?
Power (P2) required by pump15 kW
Pump version, Material codeA
Pumped liquidWater
Product nameCR 32-5-2 A-G-A-E-HQQE
Pressure rating for connectionPN 16
Rated head99.1 m
Approvals for drinking waterNSF/ANSI 61
Selected liquid temperature (?C)20
Temperature (?C)16 bar / -30
Max pressure at stated temp (?C)16 bar / 120
ApprovalsCE
Rated flow36 m?/h
Motor standardNEMA
Support bearingGraflon
BaseCast iron
Shaft seal arrangementSingle
Sales regionNamreg
Maximum operating pressure (bar)16
Low NPSHN
Flange rating inlet150 lb
Connect codeG
Curve tolerance2012 3B
Pump orientationVertical
Number of reduced-diameter impellers2
ModelB
Pump speed on which pump data are based3497 RPM
Maximum head129.3 m
BearingSIC
Liquid temperature range (?C)-30 - 120
Type of connectionANSI
Code for shaft sealHQQE
ImpellerStainless steel
Code for rubberE
DOE pump energy index CL0.87
Actual impeller diameter118.4 mm
ASIN, AsinB00LBHMYIC
AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
ClassificationId554568
DisplayNamePower Water Pumps
Height, Width75
Identifier5700390727161
IdentifierTypeEAN
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleGrundfos G96418594 CR 3252 AGAE KUBE Vertical, Non-self Priming, Multistage, Inline, Centrifugal Pump with a Rated Flow of 159 US GPM, a Rated Head of 325 Ft and Cast Iron Construction
Item_type_keywordportable-power-water-pumps
ProductGroup, WebsiteDisplayGroupNameHome Improvement
ProductType, ProductTypeNamePLUMBING_FIXTURE
Product_descriptiongrundfos 96418594
Product_site_launch_date2014-06-26T21:18:47.864Z
Typeean
URLhttps://images-na.ssl-images-amazon.com/images/I/01RmK+J4pJL._SL75_.gif
Unitspixels
WebsiteDisplayGrouphome_improvement_display_on_website

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply5023852111 @ $7954.56
PlumbersStock424752111 @ $7342.67
pumpproducts.com964185941(Ships Direct From Manufacturer)11 @ $9075.20
Edge Supply964185941-211 @ $7739.00
ZoroG205889599111 @ $10481.00
