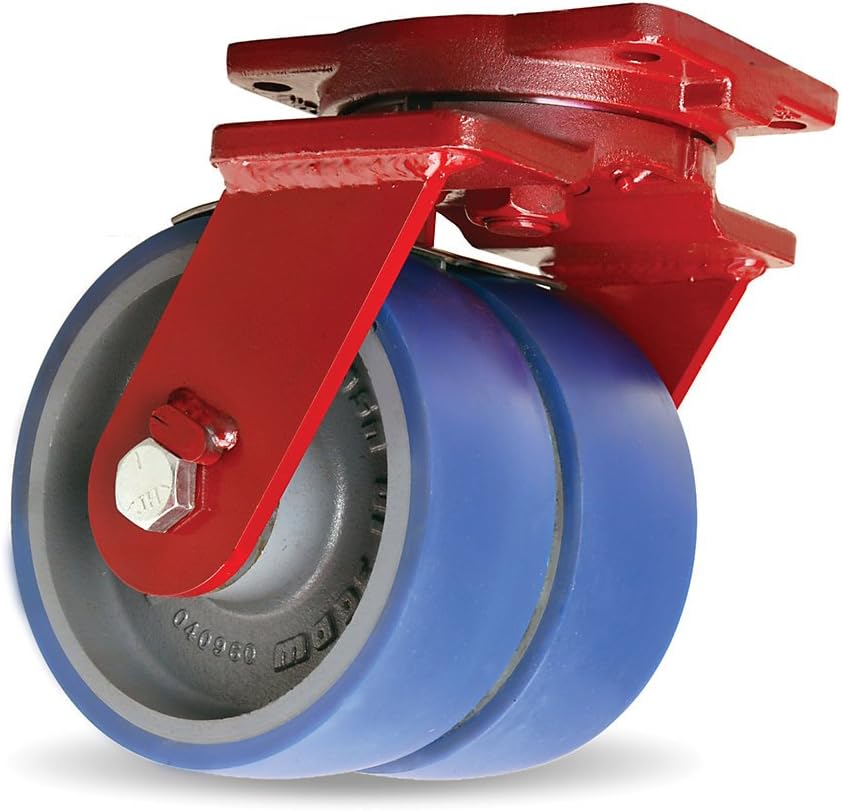

Extra Heavy Duty Dual-Wheel Swivel Caster, 12" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel

The Hamilton Extra Heavy Duty Dual Wheel Caster features a 12-inch diameter by 3-inch wide wheel with a poly-soft polyurethane construction. It has a capacity of 5600 pounds and a tapered bearing for smooth operation. This caster is designed with a swivel function for flexibility.

These forged steel dual wheel casters are built on the reliable Extra Heavy Duty (EHD) swivel caster platforms, which means flexibility if you need to match an existing bolthole pattern or overall height dimension. Dual wheel casters address the problem of how to minimize overall height and maximize load capacity on resilient tread wheels. Dual wheel casters also improve stability and swivel more easily than wider-face single wheels because differential action reduces the "scrubbing" effect of soft treads against the floors. All models have forged steel mounting plate and horn base with 1" int

Hamilton . S-EHD2-12SPT

Gallery

Attributes

Brand name, Manufacturer name, ManHamilton
Manufacturer, Brand, Label, Publisher, StudioHamilton Hamilton Casters
CategoryId, CategoryIdL46740
CategoryIdL1, CategoryIdL214394
CategoryIdL34473
CategoryL1Material Handling
CategoryL2Casters & Wheels
CategoryL3Casters
CategoryL4Plate Casters
DimensionUnitinch
GraingerSku, MPN, Part Number, Model, Keyword, ModelNumber, Model_number, PartNumber, Part_numberS-EHD2-12SPT
Extra Product NameExtra Heavy Duty Dual-Wheel Swivel Caster, 12" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel
UPCNone
UnitOfMeasureEA
Weight92 5.75 92.0 92.00
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
extendedLead20
extendedQty-2
height, length, moq, multiple, tierMinQty1, width, Case, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
jsonUrlData924526ffbdad25e5923b
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG3709140
tierPrice1910.00
urlhttps://www.zoro.com/hamilton-extra-heavy-duty-dual-wheel-swivel-caster-12-x-3-ergo-glide-polyurethane-85a-on-cast-iron-wheel-s-ehd2-12spt/i/G3709140/
Product GroupHome Improvement
Wheel Dia12
Wheel Width3
Mounting Bolt Dia0.5
Plate Size6-1/8 x 7-1/2
Mounting Height14.5
Caster Wheel ShapeStandard
Caster Wheel/Tread MaterialPolyurethane
Load Rating5600
Number of Wheels2
Caster Temp Range-50 to 200 deg(F)
Frame FinishPowder Coat
Caster Product Group, ItemSwivel Caster
Thread Guards, Non-MarkingNo
Inside Bolt Hole Spacing4 1/8 x 6 1/8
Caster Core MaterialCast iron
Core ColorGray
Caster Plate Hole PatternD
StandardsICWM
Replacement WheelW-1230-SPT-3/4
Caster Frame MaterialForged Steel
Caster Wheel BearingsTapered
SeriesDual Wheel Extra Heavy Duty
ASIN, AsinB00UVPO18Q B0876CDS72
BindingMisc.
Bullet_pointCapacity: 5600 lbs. Overall Height: 14-1/2" Wheel Dia.xW: 12x3"
CatTools & Home Improvement
CatId228013
CatTree228013 468240 551240
ClassificationId511228
Colorblue
Decimal_value3.0
DisplayNameHardware
FeatureCapacity: 5600 lbs.
Height1000 14.5 14.50 3.0 3.00 500 75
IsDeadAsinTrue
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleHamilton Casters Hamilton Extra HD Forged Swivel 12 x 3 Poly-Soft Tapered 5600 Lb. Caster Hamilton Extra Heavy Duty Dual Wheel Caster - 12"Dia.X3"W Wheel - 5600-Lb. Capacity - Poly-Soft Polyurethane Wheel - Tapered Bearing - Swivel - Blue
Item_package_weight, Item_weight92.0
Item_type_keywordplate-casters
Length0.0 0.00 12.0 14.5 14.50
Linkhttps://m.media-amazon.com/images/I/515038CFxjL._SL75_.jpg https://m.media-amazon.com/images/I/515038CFxjL.jpg https://m.media-amazon.com/images/I/61ChWLFJ89L.jpg
Material, MaterialTypePolyurethane Steel
ProductGroupBISS Basic Home Improvement
ProductTypeADHESIVES_AND_SEALANTS INDUSTRIAL_CASTERS
ProductTypeNameADHESIVES_AND_SEALANTS INDUSTRIAL_CASTERS TOOLS
Product_descriptionHamilton Casters Hamilton Extra HD Forged Swivel 12 x 3 Poly-Soft Tapered 5600 Lb. Caster These forged steel dual wheel casters are built on the reliable Extra Heavy Duty (EHD) swivel caster platforms, which means flexibility if you need to match an existing bolthole pattern or overall height dimension. Dual wheel casters address the problem of how to minimize overall height and maximize load capacity on resilient tread wheels. Dual wheel casters also improve stability and swivel more easily than wider-face single wheels because differential action reduces the "scrubbing" effect of soft treads against the floors. All models have forged steel mounting plate and horn base with 1" integrally forged kingpins and precision tapered thrust bearings. Legs are 3/8" thick. Main Load Bearing - large diameter raceway CNC-machined for HPIa,, Swivel Technology. Secondary Load Bearing - precision tapered roller bearing capped with grease retainer.
Product_site_launch_date2015-03-18T15:01:18.282Z 2020-04-16T14:38:24.445Z
SkuS-CH-12SPT
TypeSwivel
URLhttp://ecx.images-amazon.com/images/I/515038CFxjL._SL75_.jpg https://images-na.ssl-images-amazon.com/images/I/01RmK+J4pJL._SL75_.gif https://m.media-amazon.com/images/I/515038CFxjL._SL75_.jpg
Unitinches pounds
Unitsinches pixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width0.0 0.00 1000 12.0 12.00 2.0 3.0 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3709140111 @ $910.00
ZoroG908541911
AmazonSCB00UVPO18Q111 @ $1356.94
National Supply Network186640211
motionindustries.com05866497111 @ $1396.58
ZoroG3283178111 @ $699.32

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Hamilton Extra Heavy Duty Dual Wheel Caster - 12"Dia.X3"W Wheel - 5600-Lb. Capacity - Poly-Soft Polyurethane Wheel - Tapered Bearing - Swivel - Blue
Brand: Hamilton
These forged steel dual wheel casters are built on the reliable Extra Heavy Duty (EHD) swivel caster platforms, which means flexibility if you need to match an existing bolthole pattern or overall height dimension. Dual wheel casters address the problem of how to minimize overall height and maximize load capacity on resilient tread wheels. Dual wheel casters also improve stability and swivel more easily than wider-face single wheels because differential action reduces the "scrubbing" effect of soft treads against the floors. All models have forged steel mounting plate and horn base with 1" integrally forged kingpins and precision tapered thrust bearings. Legs are 3/8" thick. Main Load Bearing - large diameter raceway CNC-machined for HPIa,, Swivel Technology. Secondary Load Bearing - precision tapered roller bearing capped with grease retainer.
Details
  • Capacity: 5600 lbs.
  • Wheel Dia.xW: 12x3"
  • Overall Height: 14-1/2"
