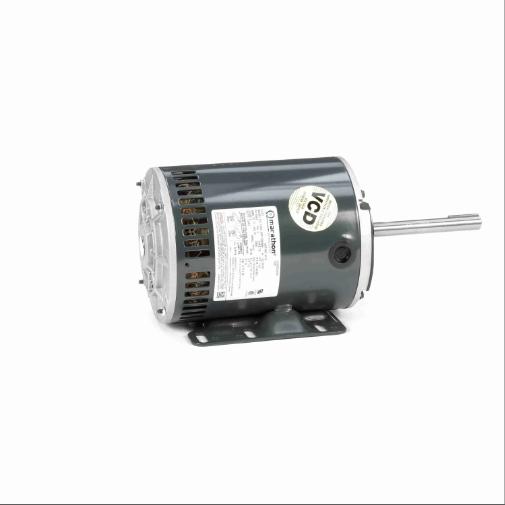

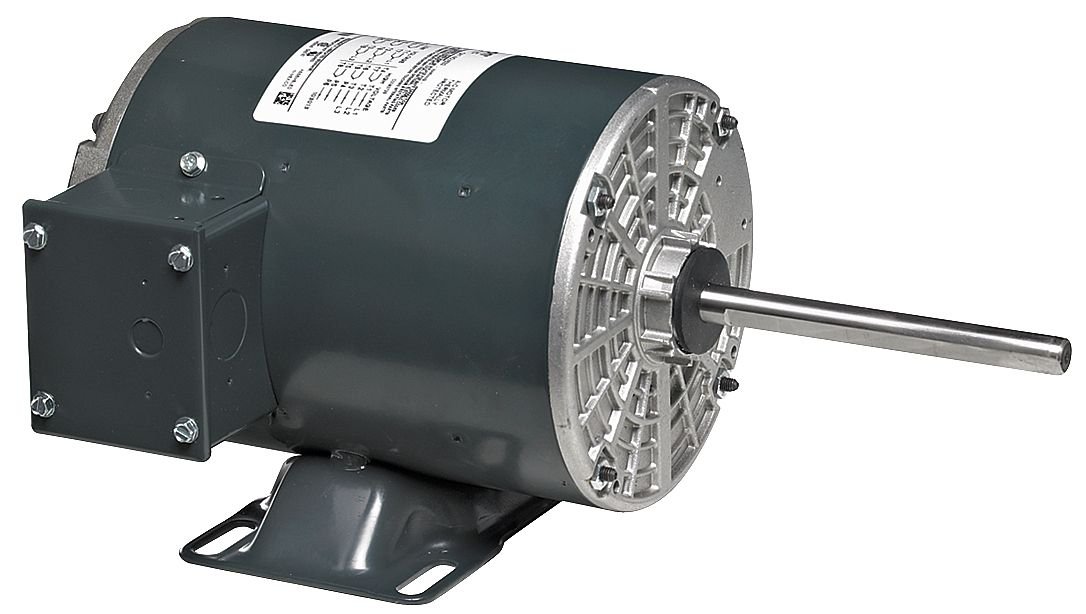

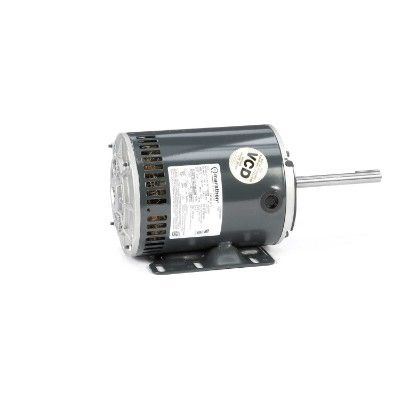

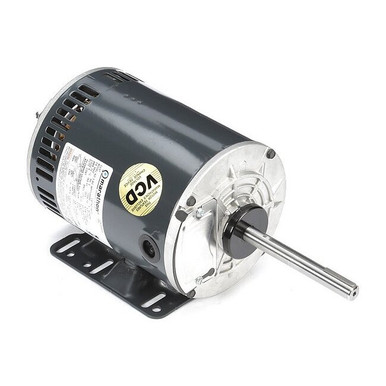

Condenser Fan Motor, Three Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 208-230/460V AC, 4.2-4.1/2.1 Full Load Amps, 56HZ Frame, Output Watts 750 W, 60/50 Hz, Usable @ 208V Yes, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class H, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band/Stud, Motor Frame Material Steel

Condenser Fan Motor, Three Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 208-230/460V AC, 4.2-4.1/2.1 Full Load Amps, 56HZ Frame, Output Watts 750 W, 60/50 Hz, Usable @ 208V Yes, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class H, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band/Stud, Motor Frame Material Steel

Marathon Motors . 056T11O5305

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMarathon Motors
CategoryId, CategoryIdL39925
CategoryIdL138
CategoryIdL26481
CategoryL1Power Transmission
CategoryL2Motors
CategoryL3Condenser Fan Motors
CategoryL43-Phase Condenser Fan Motors
DimensionUnitinch
GraingerSku39P323
UPCNone
UnitOfMeasureEA
Voltage208-230/460V AC
Weight28.95
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
height8.2
jsonUrlData924526ffbdad25e5923b
length16.9
moq, multiple, tierMinQty1, Motor Service Factor, HP1
MPN056T11O5305
qtyInStock11
qtyInStockOverride-2
SKUG5657504
tierPrice1532.99
urlhttps://www.zoro.com/marathon-motors-fan-motor-1-hp-1140-rpm-6050hz-056t11o5305/i/G5657504/
width8
Shaft Dia5/8 in
Shaft Length5 in
Body Dia6 1/2 in
Overall Length14 11/16 in
Length Less Shaft9 11/16 in
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionAuto
Ins ClassH
Motor Enclosure DesignOpen Air-Over
Nameplate RPM1,140
Hz60/50
RPM Range1,101-1,200
Motor Mounting PositionHorizontal or Vertical Shaft Up
PhaseThree
Motor Shaft DesignKeyed with Single Flat
Motor ApplicationHVAC/R
Max Ambient Temp70 Degrees C
Motor BearingsBall
ApplicationCondenser Fan
DutyContinuous
Nominal Efficiency75.5 %
