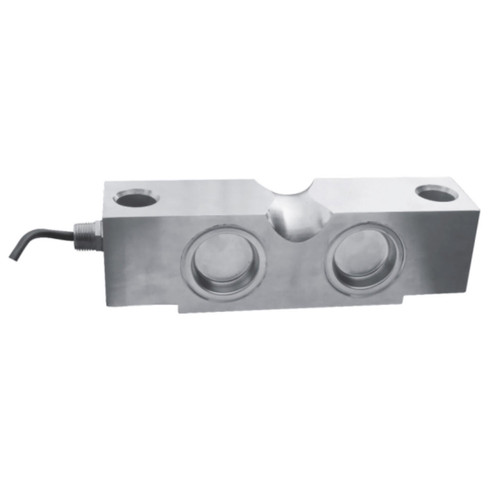

Keli KL-58 QSB-A-100Klb 100,000 lb Double Ended Beam Load Cell, NTEP - Scales Plus
Buy the top selling Keli QSB-A-100Klb from Scales Plus and receive free product support from our trained technicians for life!
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Keli |
|---|---|
| DimensionUnit | foot |
| Extra Product Name | Keli KL-58 QSB-A-100Klb 100,000 lb Double Ended Beam Load Cell, NTEP - Scales Plus |
| keywords | Industrial Scales, Digital Scales, Laboratory Balances, Calibration Weights, Cannabis Scales, Jewelry Scales, NTEP Certified Scales, Load Cells |
| length | 40.0 |
| length_Attrib | Cable Length |
| moq, multiple, tierMinQty1 | 1 |
| MPN, SKU | QSB-A-100KLB |
| qtyInStock | 0 |
| snippet | Buy the top selling Keli QSB-A-100Klb from Scales Plus and receive free product support from our trained technicians for life! |
| tierPrice1 | 498 |
| Model | QSB-A-100Klb |
| Capacity | 100,000 lb |
| Safe Overload | 150% capacity |
| Ultimate Overload | 200% capacity |
| Construction | Alloy steel |
| Finish | Nickle plating |
| Cable Color Code | Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield |
| Rated Excitation | 10-12 VDC (maximum of 15 V) |
| Full Scale Output | 3 mV/V |
| Output Resistance | 702 (+/- 3) ohms |
| Input Resistance | 750 (+/-10) ohms |
| Operating Temperature Range | -10 to +40????? |
| IP Rating | IP68 |
| Insulation Resistance | 5000 megohms |
| Cable Length | Approximately 40 ft |
| Dimensions LxWxH (mm) | 387.4 x 73.6 x 98 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| scalesplus.com | QSB-A-100KLB | 1 | 1 | 1 @ $498.00 |
